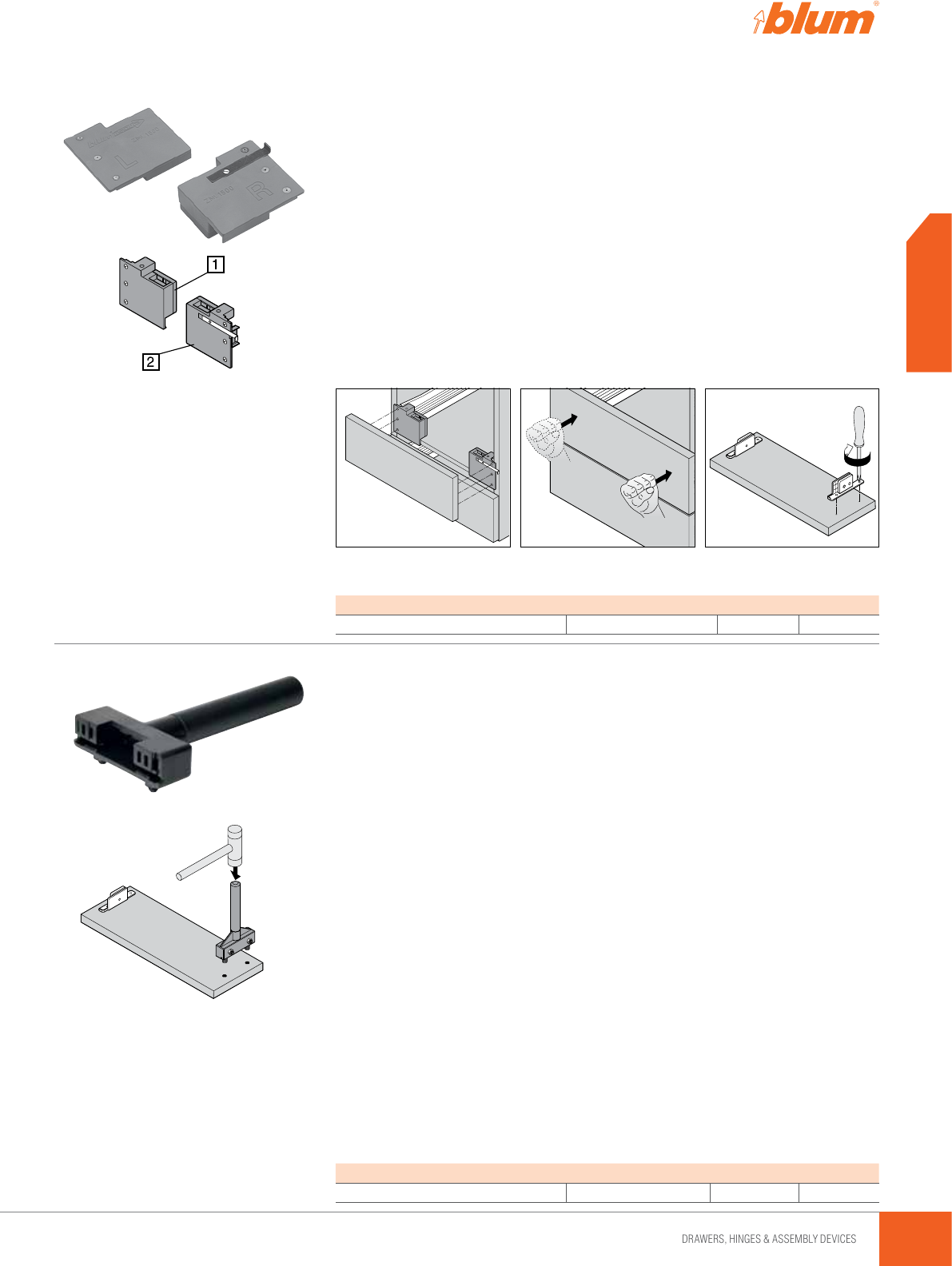

METABOX MARKING GAUGE
• Suits METABOX
• Single (320) and Full Extension (330)
• M (86mm), K (115mm) and H (150mm) heights
• Includes Left and Right Gauge
• Right hand Gauge has adjustable stop for correct
drawer overlay set up
METABOX FRONT BRACKET INSERTION TOOL
• Suits METABOX
• ZSF.1300 and ZSF.1800 Front Fix Brackets with Dowel
Description Material Blum No. Code
Marking Gauge Nylon/Steel
ZML.150 0 1-285-694
Description Material Blum No. Code
Metabox Front Bracket Insertion Tool Nylon/Steel
ZME.1600.01 1-285-692
