User Guide

Assembly Devices
DRAWERS, HINGES & ASSEMBLY DEVICES
D.12
Drawers, Hinges & Assembly Devices
D
Dimension data and specifications may change without notification

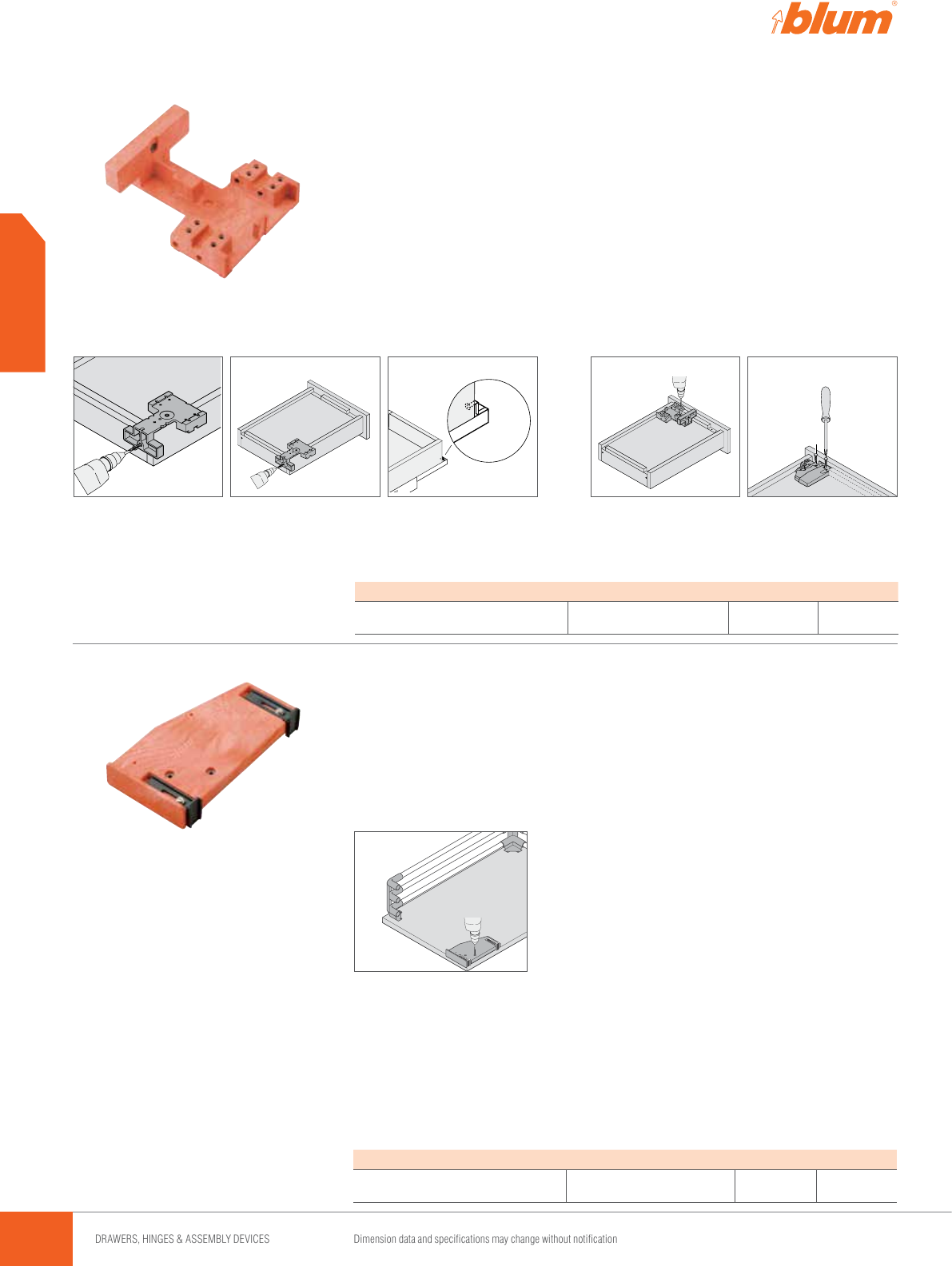

DRILLING TEMPLATE FOR MOVENTO AND TANDEM
• Template for drilling the runner hook postions
• Pre-drilling the MOVENTO/TANDEM locking device fixing positions
DRILLING TEMPLATE FOR PULL-OUT SURROUND CORNER
CONNECTORS
• The drilling template can be used to pre-drill corner connector fixing positions to suit TANDEMBOX,
MOVENTO, TANDEM, METABOX and STANDARD
• Includes 3 x 2.5mm drill bit
• Includes 1 x blade screw driver
Pre-drilling of locking device
fixing positions
Pre-drilling of locking device
fixing positions
Pre-drilling of locking device
fixing positions
Set side distance position using
the stop
Position template on pull-out
surround
Drill fixing positions for corner
connectors
Screw on locking device
Description Material Blum No. Code
Drilling Template for MOVENTO
and TANDEM
Nylon/Steel
T65.1000.02 1-285-691
Description Material Blum No. Code
Drilling Template for Pull-Out
Surround Corner Connectors
Nylon/Steel
ZML.0010 1-285-681
DRAWER ASSEMBLY DEVICES
Hook Drilling Drilling for TANDEM-locking
