Data Sheet

The Reach 7 is a highly capable multi-function
manipulator for the subsea environment. Six degrees of
freedom coupled with an in-built kinematics engine
provide dexterous movement with unmatched precision.
Designed to operate in environments too dangerous for
humans, the Reach 7 has a 6000m depth rating and a
variety of intuitive HMI options. Coupled with an
advanced master/slave top-side controller incorporating
haptic feedback, the Reach 7 ushers in a new era for
remote robotics.
All electric and with a lift capacity of 12Kg at full reach,
the arm will be a capability muliplyer for larger
inspection class ROVs.
Indicative Specifications:
Lift: 12kg Reach: 800mm
Water Weight: 5kg Outer Diameter: 80mm
REACH 7
[phone] | [e-mail] | www.blueprintlab.com

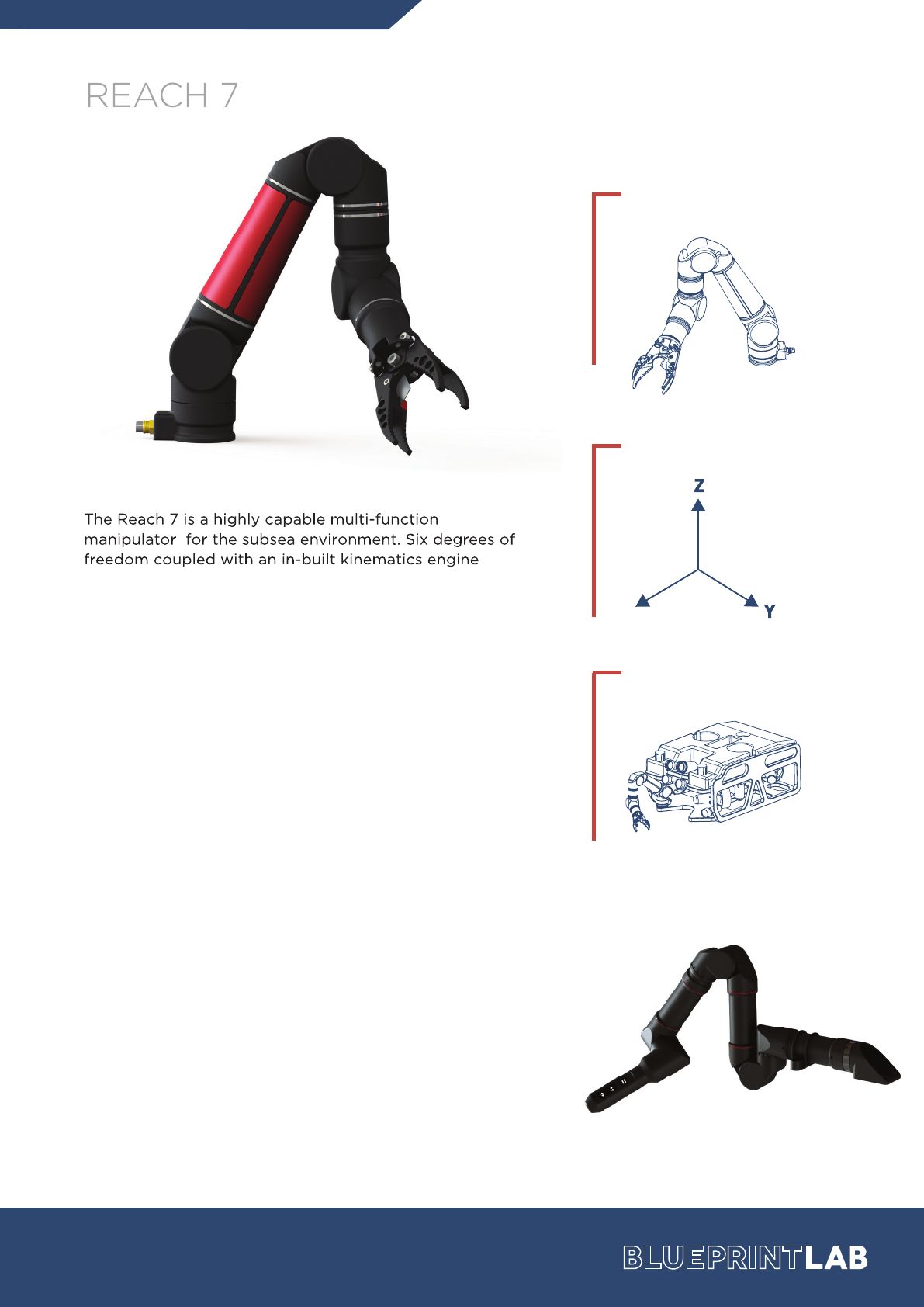

The Reach 7 is a highly capable multi-function
manipulator for the subsea environment. Six degrees of
freedom coupled with an in-built kinematics engine
REACH 7
DEXTEROUS
INTELLIGENT
Z
Y
X
TOUGH
Seven Functions
Built-in Kinematics
6000m Depth Rating
REACH SYSTEM 2 (Scheduled Q3/4 2019)
The master arm top-side controller enables operators to complete
complex tasks which are dicult or impossible with traditional control
methods. Combined with accurate feedback of manipulator and
end-eector state, the master arm opens up inspection tasks
previously reserved for larger arms and ROVs. Ask us about a
configuration option for your application.
MASTER ARM CONTROLLER
NEED A CUSTOM SOLUTION? CONTACT US TODAY
