P.No 3234

Resin Side Lower Rail Joint (5/8in Rail)

P.No.3223

Resin Side Lower Rail Joint (1in Rail)

P.No.0623

M8 Nut

P.No.7528

End strap

P.No.0923

M8x20 Hex Head Bolt

P.No.3177

Resin Side Upper Joint

P.No.0341

#12 Sheet Metal Screw

P.No.5673

M14x30 Hex Head Bolt

P.No.5672

M14 Nut

P.No.5675

M10 Nut

P.No.5674

M10x100 Hex Head Bolt

P.No.0341

#12 Sheet Metal Screw

STEP4.

Refer page-7 "5)Connecting tension staraps."

to determine kind of straps.

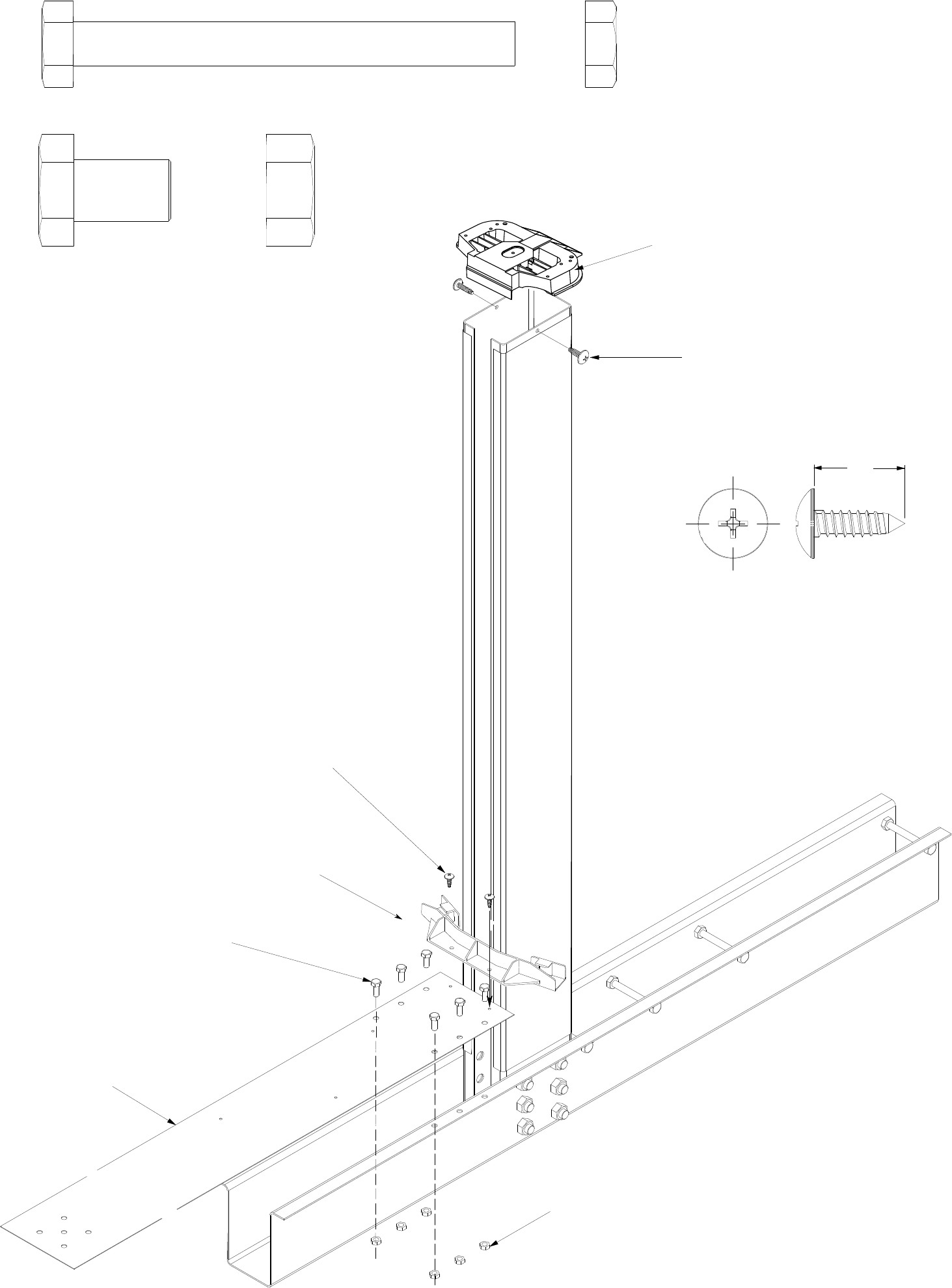

Attach End strap to Horizontal support. Put M8x20

hex head bolt from top and put

M8 Nut from bottom. Put all bolt and tighten up.

STEP5.

Attach Side Lower Rail Joint to Holizontal support

using two sets of #12 Sheet Metal Screw.

STEP6.

Attach Side Upper Joint to top of side vertical

using two #12 Sheet Metal Screw.

#12 Sheet Metal Screw

P.No.0341
