Installation Guide

3
3) ASSEMBLING BRACELESS OVAL STRUCTUAL COMPONENT.
Use #0109PACK Braceless Oval frame bolt package.
Use #0105(#0106)PACK Strap bolt package.
NOTE; Side vertical skin was attached to side
vertical at the factory,open end is
inside pool.
P.No.5712 Side Vertical for 52in
P.No.5713 Side Vertical for 54in
P.No.5617 Side Vertical Skin for 52,54in
P.No.5726
Horizontal Support
P.No.5673
M14x30 Hex Head Bolt
P.No.5672
M14 Nut
P.No.5674
M10x100 Hex Head Bolt
P.No.5675
M10 Nut

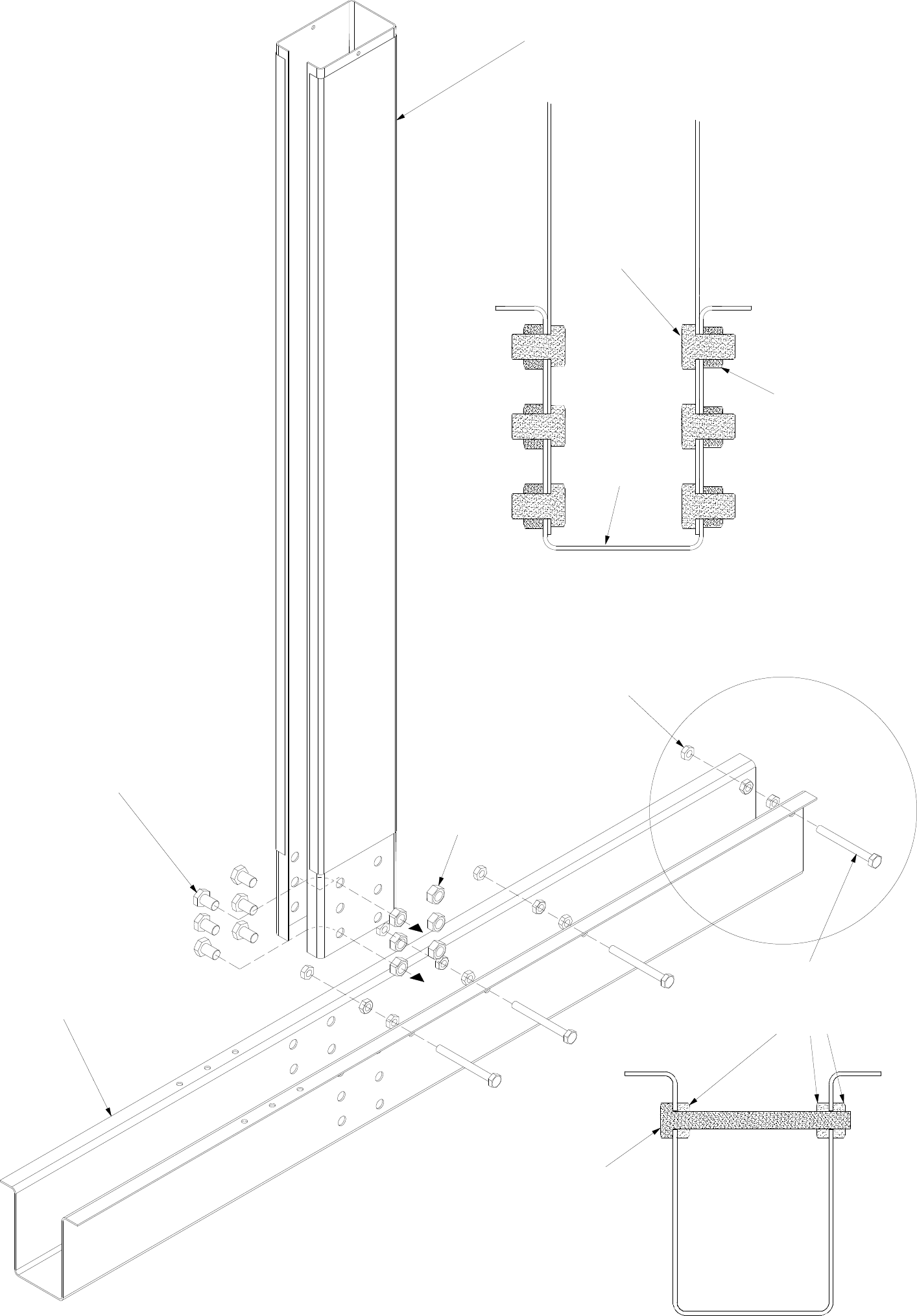

STEP1.
Insert Side Vertical into Horizontal Support.
Insert M14 x 30 Hex Head Bolt from inside of
side vertical,
put M14 Nut from outside
do the same six Bolt on right and left side of
side vertical.
STEP2.
Insert M10x100 Hex Head Bolt and put three
M10 Nuts for each bolt. Do the same for three
Bolts.
as shown picture.
STEP3.
Make sure all Parts attached corrctly.
Tighten up all bolt.
Pull Side Vertical toward outside of Pool.
P.No.5675
M10 Nut
P.No.5674
M10x100 Hex Head Bolt
P.No.5673
M14x30 Hex Head Bolt
P.No.5726
Horizontal Support
P.No.5672
M14 Nut
