Installation Guide

Set all oval parts on the right position, Check(A)
length(distance between horizontal
support), Put Top seat on top of side upper joint
temporaly as shown figure.
Then check a-b,c-d is straight and lebel,If not,
adjust accordingly.
Do not use wood to adjust height.
7

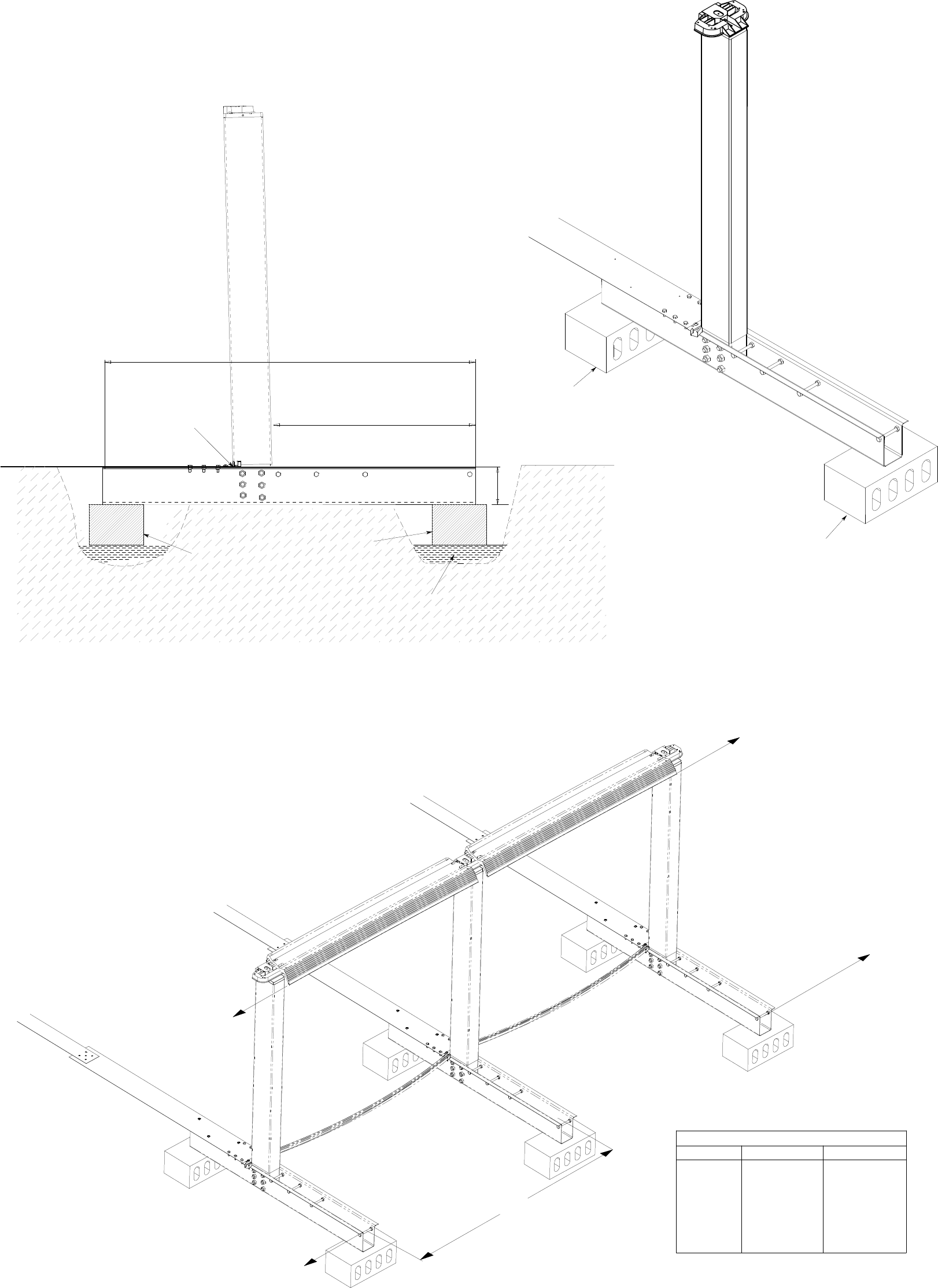

6) POSITIONING ASSEMBLED OVAL PARTS
.
Digging holes for assembled braceless oval structural
components. Use Building block to hold assembled braceless
oval structural component. Stamp ground under building block
well to bellow than needed level. Put some sand to the ground
and pour some water to make sand tight. Then put building
block on top of sand. Adjust building block accordingly.
Top seat temporally placed should be removed before
proceeding to next step.
Cinder Block
Cinder Block
Cinder Block
Cinder Block
(753mm)
(1369mm)
(138mm)
5-3/8" Depth
53-7/8"
29-5/8"
X Point
Sand
IMPORTANT !
A
b
d
c
a
Pool Size (A)Length
(in)
(A)Length
(mm)
16x12 4' 5/8" 1236
20x12 4' 5/8" 1236
24x12 4' 5/8" 1236
25x15 5' 1/4" 1530
30x15 5' 1/4" 1530
33x18 5' 1/4" 1530
41x21 5' 1/4" 1530
List of (A) Length
