Owners manual

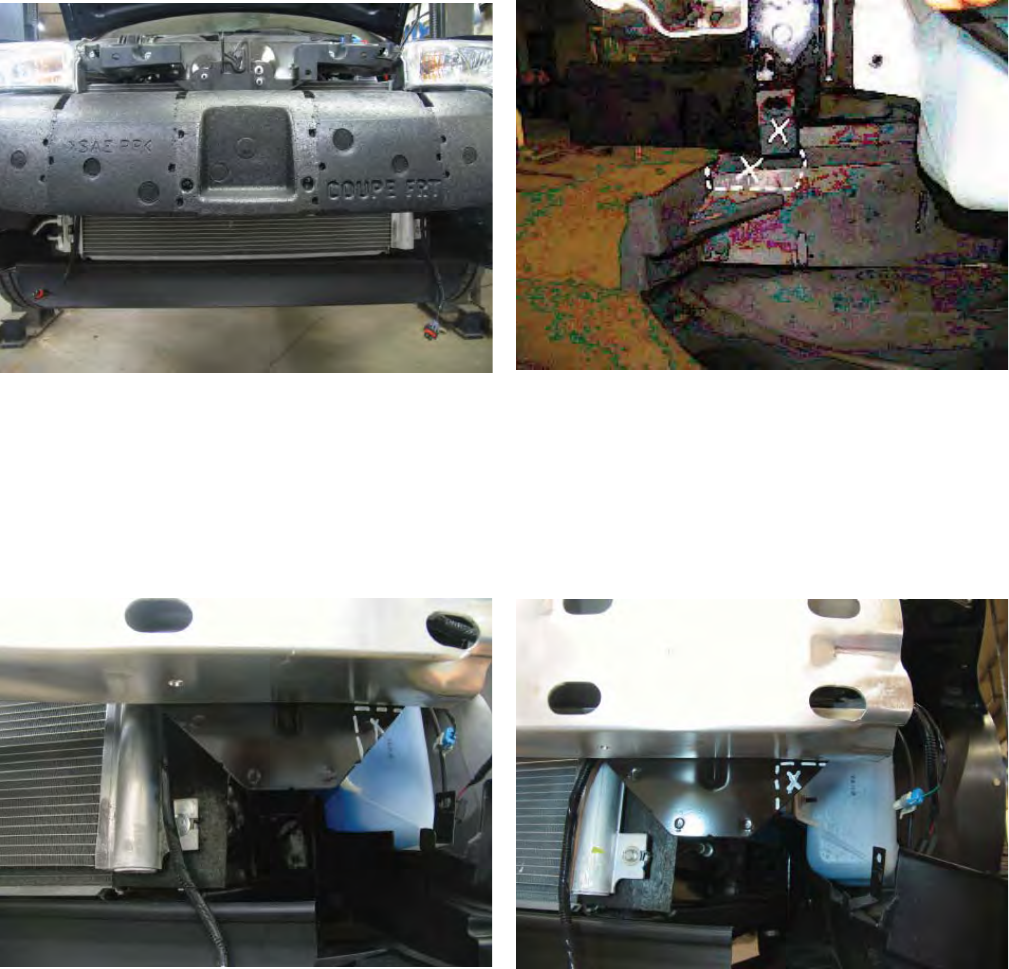

4. Remove one pushpin from the styrofoam bumper.

Set styrofoam bumper and pushpin aside to be

reinstalled later.

5. Using the utility knife, remove the upper portion of

the air dam with the tab. Do this to both sides of the

vehicle.

6. Using the 10MM socket, remove four metric bolts from the metal bumper. Do this to both sides of the vehicle

and set the bumper aside to be reinstalled later. Measure and mark 2 3/4” up from the bottom edge of the

bumper bracket webbing and approximately 2” in to the frame edge on the back side of the webbing. Using

the reciprocating saw, remove this portion. Do this to both sides of the vehicle.

6-A

2005-07 Saturn Ion

Non Red Line

Installation Instructions

BX3325

Page 4 of 7 292-2677 Rev. D 6/8/09

6-B
