Owners manual

Page 2 of 7 292-2677 Rev. D 6/8/09
2005-07 Saturn Ion
Non Red Line
Installation Instructions
BX3325

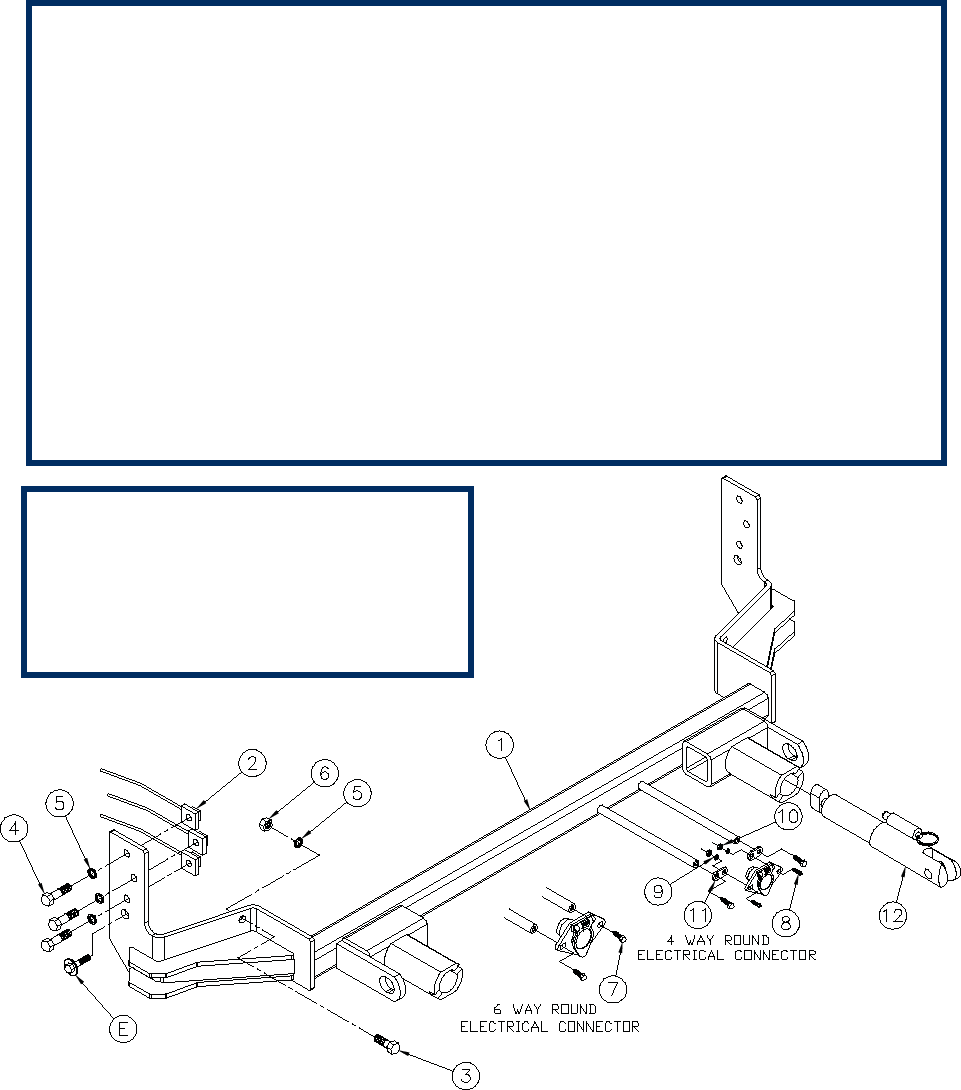

Parts List
Ref. No. Qty. Part # Description
1 1 61-6102 Weldment, Baseplate, BX3325
2 6 61-5208 3/8” Nutplate, with Wire
3 2 201-0443 3/8-16 x 1” Hex Bolt, Grd. 5, ZP
4 6 201-0440 3/8-16 x 1 1/2” Hex Bolt, Grd. 5, ZP
5 8 203-0010 3/8” Lock Washer, ZP
6 2 202-0003 3/8-16 Hex Bolt, ZP
7 2 201-0553 1/4-20 x 1/2” Hx. Wshd, Type F Screw
8 2 201-0192 #10-32 x 1/2” Slot, Rd. Hd. Screw
9 2 203-0054 #10 Lock Washer
10 2 202-0047 #10-32 Hex Nut
11 2 101-5822 Adapter, 4 Way Connector
12 2 62-3469 Attachment, Assembly, SF/LB (R)
E 1 Existing bolt on the passenger’s side for the air baffl e
2 226-0046 Baseplate Safety Cable, 36” CL III (Not Shown)
4 229-0359 Quicklink, 3/8, ZP (Not Shown)
2 290-0437 Cap Plug, Black, (Not Shown)
Important:
Use only genuine factory replacement parts on your baseplate. Do NOT substitute homemade or non-typical parts. If a bolt is lost or in
need of replacement, for your safety and the preservation of your baseplate, be sure to use a replacement bolt of the same grade (in most
cases it will be Grade 5, please reference the parts list above). Replacement parts may be ordered through your nearest Blue Ox® Dealer or
Distributor, or call our Customer Care Team at [phone].
Tools Required
7MM Socket
10MM Socket
9/16” Socket
13/32” Drill Bit
Utility Knife
Reciprocating Saw
Loctite
®
RED
