Owners manual

BX2643
2010 & 2013-14 Ford Taurus SHO w/ Adaptive Cruise Control
Installation Instructions
405-0328 Rev A Page 5 of 7 9/16/13

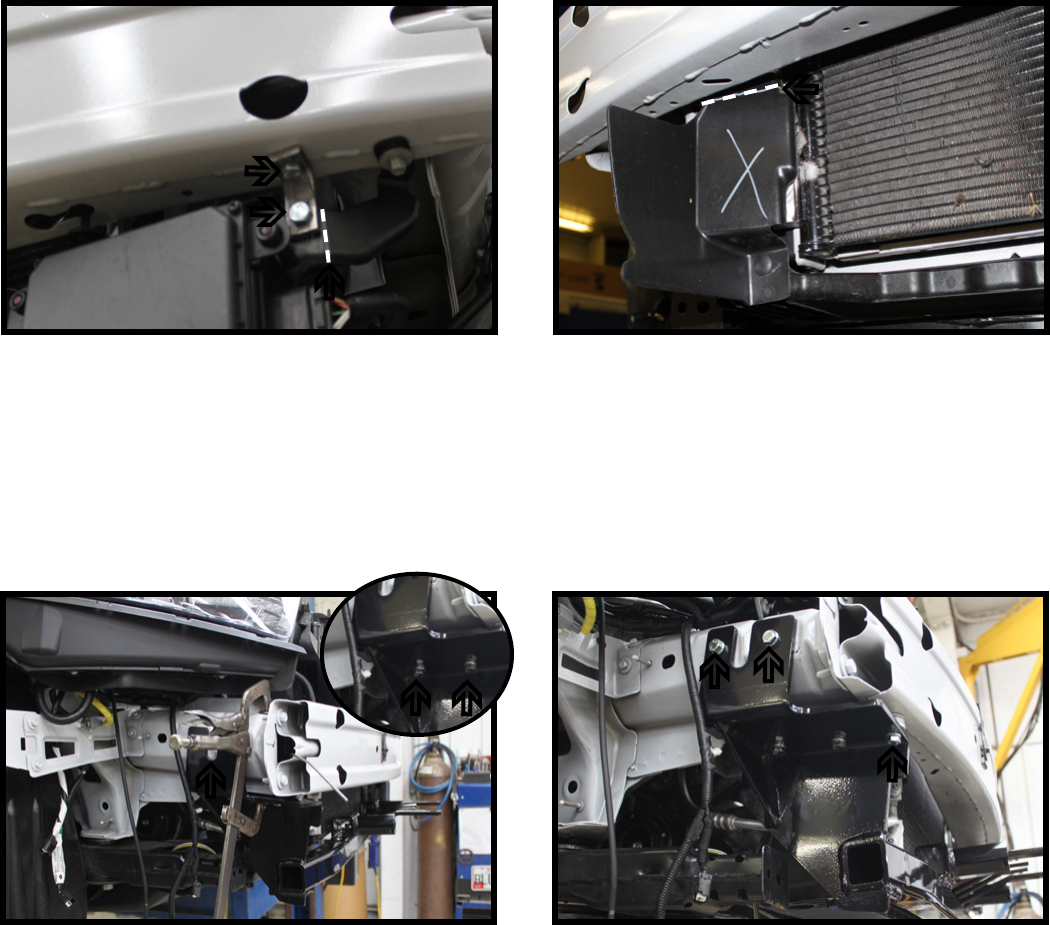

5. Align the support bracket as shown,
mark holes, then using a 1/4” drill bit, drill
the two (2) holes. Install 1/4”-20 x 3/4”
bolts and 1/4”-20 nuts (white). Using a
reciprocating saw trim off the outer edge
(gray).
6. On the passenger side, using a utility
knife, trim off the plastic shrouding from
the underside of the bumper.
7. Center the baseplate between the frame
rib on each side (gray). Level the baseplate
and securely clamp in place. On the
underside of the baseplate, using a 17/32”
drill bit, drill the bottom two (2) holes thru
the frame. Install 3/8”-16 x 2-1/2” bolts with
3/8”-16 nut plates into the holes, using
the opening in the bumper for nut plate
installation (white). Do this on both sides of
the vehicle. Tighten all fasteners.
8. Using a 17/32” drill bit, drill the remaining
three (3) holes thru the frame and bumper.
Install two (2) 3/8”-16 x 1-1/4” bolts and
3/8”-16 nut plates into the top holes
(white). In the lower bumper hole, install
a 3/8-16 x 2” bolt with 3/8”-16 nut with
3/8” washers in between the bumper &
baseplate as a spacer (gray). Do this
on both sides of the vehicle. Tighten all
fasteners.


 






