Owners manual

BX2643
2010 & 2013-14 Ford Taurus SHO w/ Adaptive Cruise Control
Installation Instructions
405-0328 Rev A Page 4 of 7 9/16/13

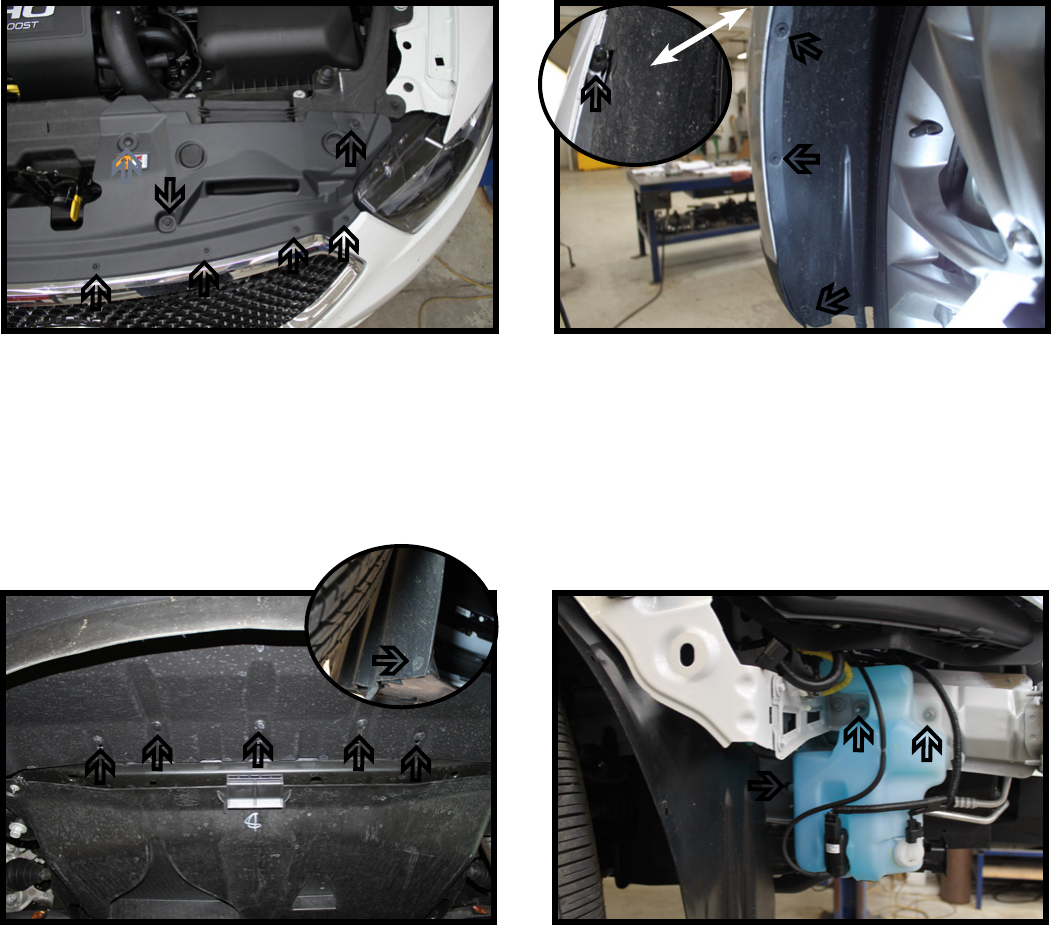

1. On the top edge of the fascia, using a
10MM Socket, remove the two (2) screws
(white). Remove the one (1) push pin
(black). Then using a phillips screwdriver,
remove the four (4) screws (gray). Do this
on both sides of the vehicle.
2. In the wheel well, using a 5.5MM socket,
remove the three (3) screws from the
outer edge (white). Remove the push pin
from the upper outer edge (gray). Do this
on both sides of the vehicle.
3. Remove the ve (5) push pins from the
underside of the fascia (white). Then using
an 8MM socket, remove screw on the
inner edge of the wheel well, there is one
(1) on either side of the vehicle (gray).
Remove the fascia from the vehicle and
set aside.
4. Using a 11MM socket, remove the two (2)
screws from the inner edge of the washer
uid reservoir (white). Then using a 8MM
socket, remove the outer screw (gray).
Disconnect all lines and set reservoir
aside.




















