BX2643
2010 & 2013-14 Ford Taurus SHO w/ Adaptive Cruise Control
Installation Instructions
405-0328 Rev A Page 3 of 7 9/16/13
4 PIN CONNECTOR
SWITCH
8
16
9
6 PIN CONNECTOR
7
15
VEHICLE & WASHER TANK PER INSTRUCTIONS
5
14
12
6
1
2
3
10
13
17
18 4
11
WASHERS ARE PROVIDED TO PLACE BETWEEN
BREAKAWAY

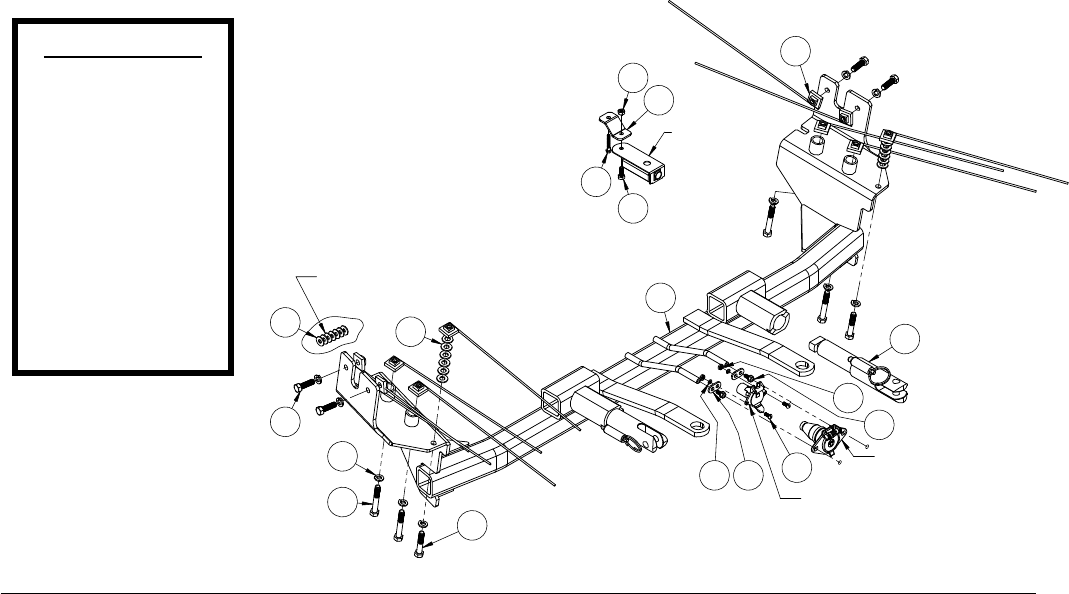

Item No. Part No. Description Qty.
1.................................61-5208 .............................3/8”-16 Nut Plate w/ 14” Wire ........................................10
2.................................61-7178 .............................BX2643 Baseplate ...........................................................1
3.................................62-3469 .............................Attachment Tab Assembly with Hole ...............................2
4.................................101-5822 ...........................4 Way Connector Adapter ...............................................2
5.................................101-7599 ...........................Breakaway Bracket .........................................................1
6.................................201-0050 ...........................1/4”-20 x 3/4” Hex Head Bolt, Grade 5, ZP .....................2
7.................................201-0192 ...........................#10-32 1/2” Round Slotted Head Screw ..........................2
8.................................201-0336 ...........................3/8”-16 x 2-1/2” Hex Head Bolt, Grade 5, ZP ..................4
9.................................201-0368 ...........................3/8”-16 x 1-1/4” Hex Head Bolt, Grade 5, ZP ..................4
10...............................201-0444 ...........................3/8”-16 x 2” Hex Head Bolt, Grade 5, ZP ........................2
11 ............................... 201-0553 ...........................1/4”-20 x 1/2” Hex Wshd Bolt Type F TCS, ZP ................2
12...............................201-0654 ...........................#10-16 x 1” Self Drilling Screw, ZP .................................. 1
13...............................202-0047 ...........................#10-32 Hex Nut ...............................................................2
14...............................202-0102 ...........................1/4”-20 Hex Nylon Nut, ZP ..............................................1
15...............................203-0001 ...........................1/4” Flat Washer, ZP ........................................................7
16...............................203-0003 ...........................3/8” Flat Washer, ZP ......................................................12
17...............................203-0010 ...........................3/8” Lock Washer, ZP ....................................................10
18...............................203-0054 ...........................#10 Lock Washer, ZP ......................................................2
19...............................102-7401(not shown) ........ACC Support Bracket ......................................................1
20...............................202-0102(not shown) ........1/4”-20 Hex Nylon Insert Nut, ZP ....................................2
21...............................226-0046(not shown) ........Class III Safety Cables ....................................................2
22...............................229-0359(not shown) ........3/8” Quicklink, ZP ............................................................2
23...............................290-0437(not shown) ........Black Cap Plug Receiver .................................................2
Tools Required
Large Vise Grip
Flat Screwdriver
Utility Knife
Phillips Screwdriver
Torque Wrench
Drill
Tape Measure
Loctite
®
RED
13/32” Drill Bit
5.5MM Socket
8MM Socket
10MM Socket
11MM Socket
9/16” Socket
Important:
Use only genuine factory replacement parts on your baseplate. Do NOT substitute homemade or non-typical parts. If a bolt is lost or in need of
replacement, for your safety and the preservation of your baseplate, be sure to use a replacement bolt of the same grade (In most cases it will be Grade
5, please reference the parts list above). Replacement parts may be ordered through your nearest Blue Ox® Dealer or Distributor. Failing to follow and/
or altering these installation instructions in either installation or required equipment will void the manufacturer’s warranty. Towing behind a non-motorized
vehicle will void the warranty.
