Owners manual

BX1698
2011-13 Chevy Cruze RS
Installation Instructions
405-0207 Rev. B Page 6 of 11 8/24/12

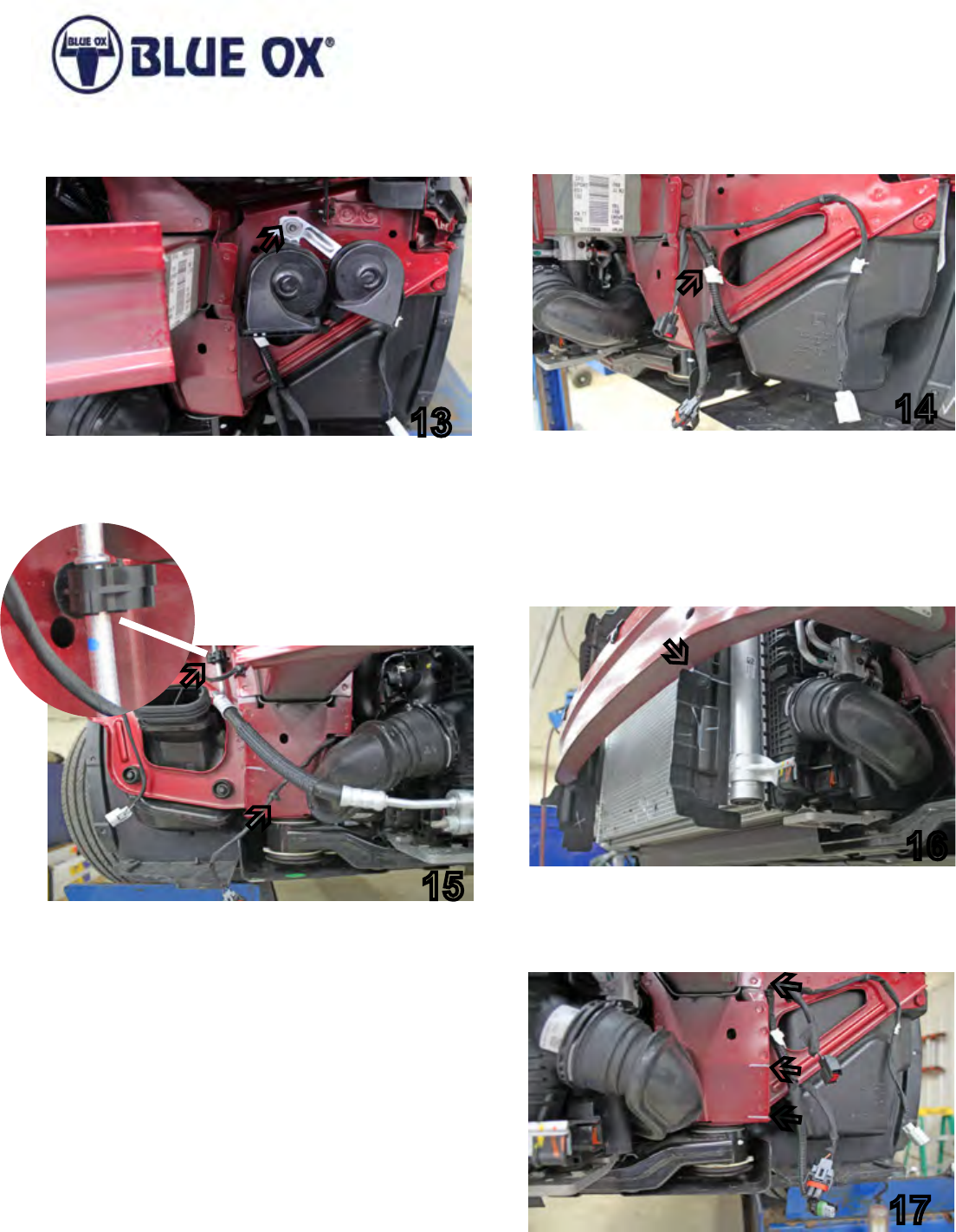

14. On the driver side, pull out the clip holding the hose
Move it out of the way, it will be reattached later.
14

15
15. On the passenger side, unclip both lines to allow
more ex when installing the baseplate. It will be
reattached later.
13. On the driver side using the 13MM socket, remove
the metric bolt from the horn bracket. Unplug and
set the bolt and horn aside to be reinstalled later.

13


16. Using the utility knife, cut the plastic air dam along
the top even with the bottom of the bumper and
remove lower section. Do this on both sides.
16

17. Cut frame webbing at the top, at the bend and at
the bottom with a reciprocating saw. Be careful not
to cut the main part of the frame. Do this on both
sides.
17



