Owners manual
BX1698
2011-13 Chevy Cruze RS
Installation Instructions
405-0207 Rev. B Page 5 of 11 8/24/12
8

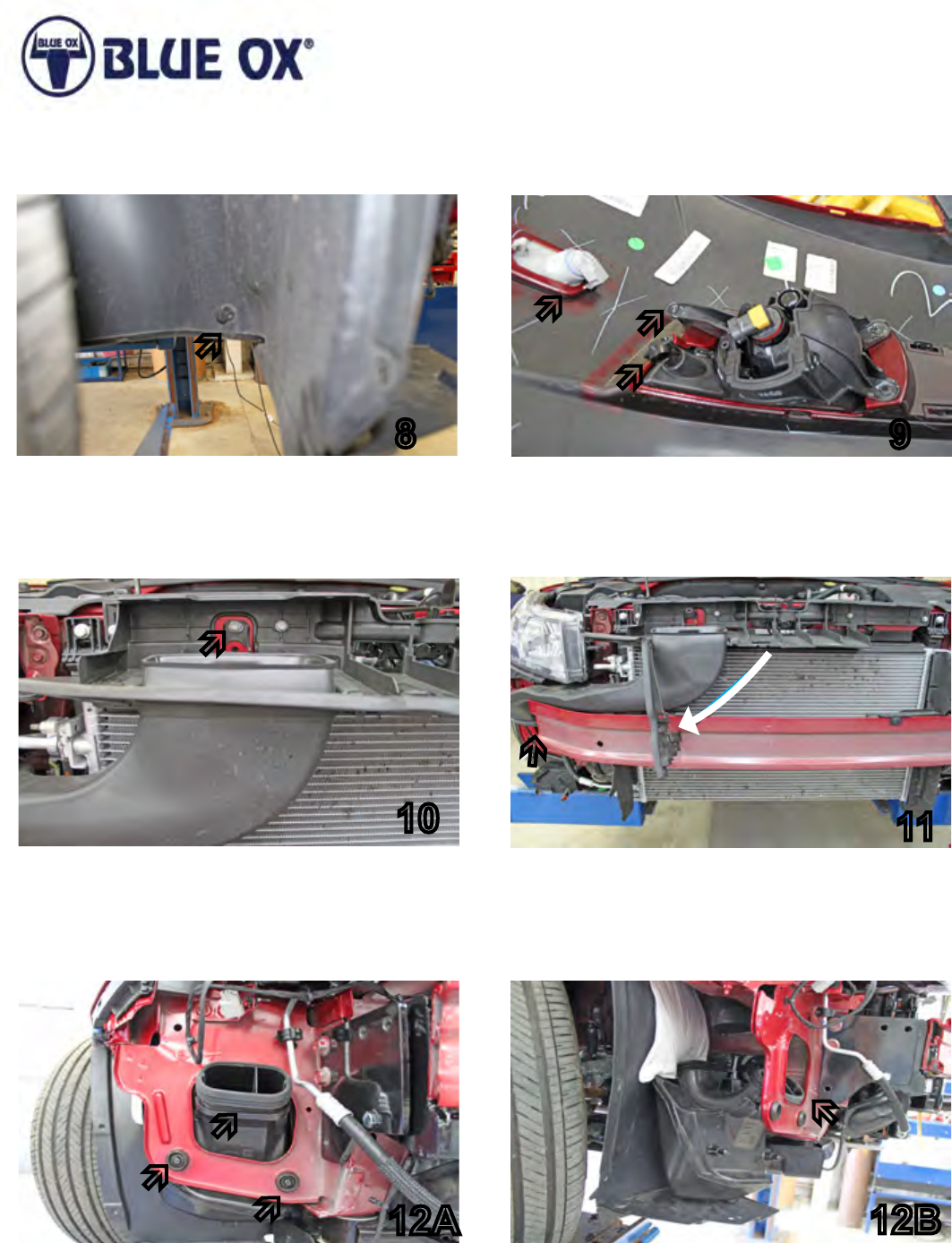

8. On the passenger side, inside the wheel well,
remove one push pin. Set push pin aside to be
reinstalled later.
12A
11. On the passenger side, push the air bafe back and slide it down to remove. Set aside to be reinstalled later.
9
9. Inside the fascia on the driver side, unplug the side
lamp, temperature sensor and fog lights. On the
passenger side, unplug the side lamp and the fog
lights.
10. On the passenger side using a 10MM socket,
remove the metric bolt from the top of the air bafe.
Set the bolt aside to be reinstalled later.
10
11. On the passenger side move the plastic ledge
from the top of the tube (white arrow). Below the
headlight, detach the air bafe from the bottom
section of the tube (gray arrow). Set aside to be
reinstalled later.
11
12B
