Owners manual

BX1698
2011-13 Chevy Cruze RS
Installation Instructions
405-0207 Rev. B Page 4 of 11 8/24/12

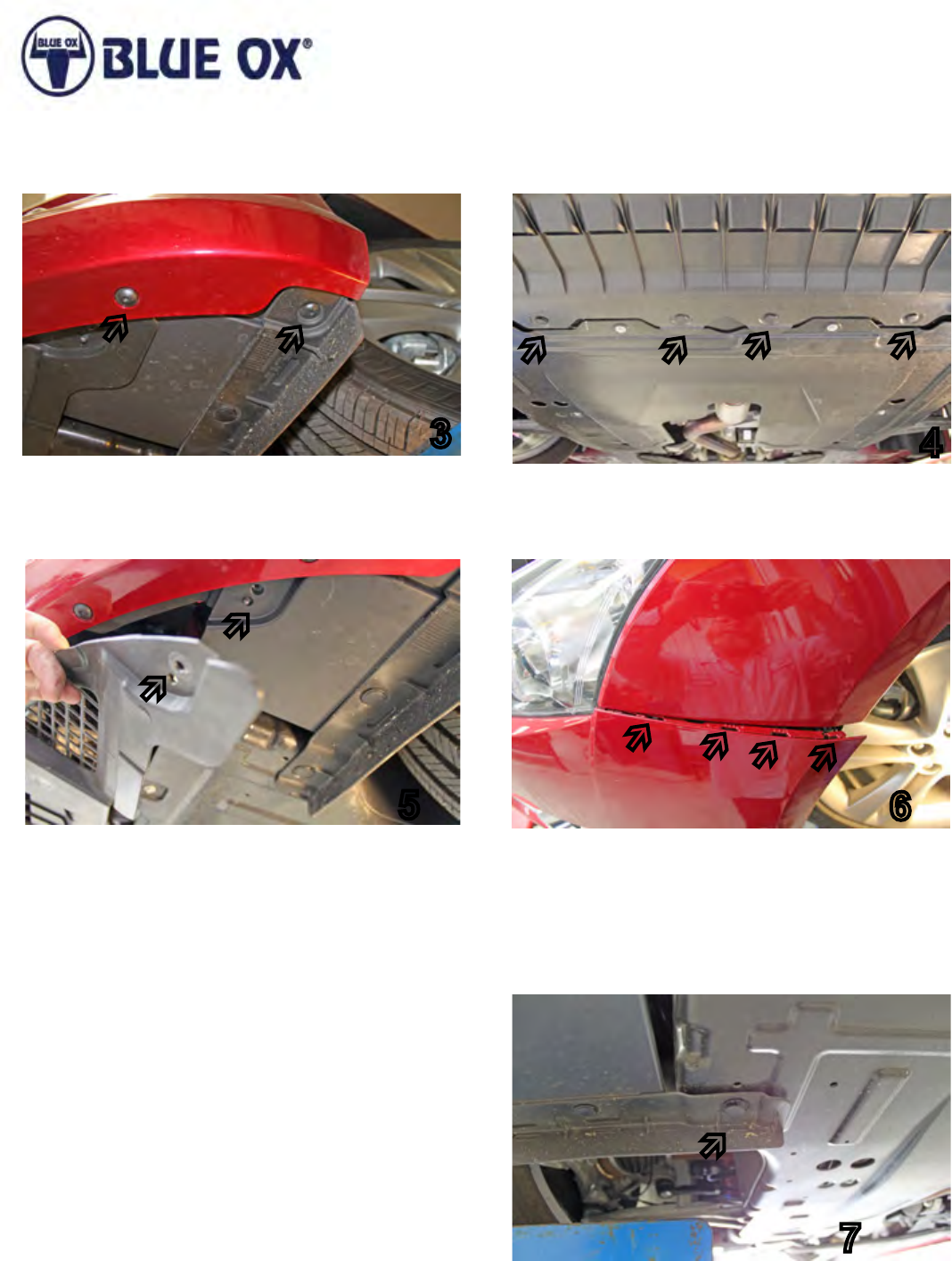

4. Remove the four push pins from underneath the
fascia. Set pins aside to be reinstalled later.
3. Remove the two bolts from underneath the fascia,
just forward of front tires with the T20 Torx, both
sides. Set the bolts aside to be reinstalled later.
3
4


 
 
7. On the passenger side, remove one push pin from
the bottom of the belly pan. Set push pin aside to
be reinstalled later.
5. In front of the front tire, pull the lower air dam off
the pin. Then pull the lower shield off the pin also
in order to remove the fascia.
5


6. Pull out and to the side on the outside corner of
the fascia next to the wheel to release the rst tab.
Using a small at screwdriver push in on each of
the four tabs as you pull the fascia. Do this on both
sides. Remove the fascia and set aside carefully to
be reinstalled later.

6



7

