Owners manual

BX1698
2011-13 Chevy Cruze RS
Installation Instructions
405-0207 Rev. B Page 2 of 11 8/24/12
Important:
Use only genuine factory replacement parts on your baseplate. Do NOT substitute homemade or non-typical parts. If a bolt is lost or in
need of replacement, for your safety and the preservation of your baseplate, be sure to use a replacement bolt of the same grade (In
most cases it will be Grade 5, please reference the parts list above). Replacement parts may be ordered through your nearest Blue Ox
®
Dealer or Distributor. Failing to follow and/or altering these installation instructions in either installation or required equipment will void
the manufacturer’s warranty.

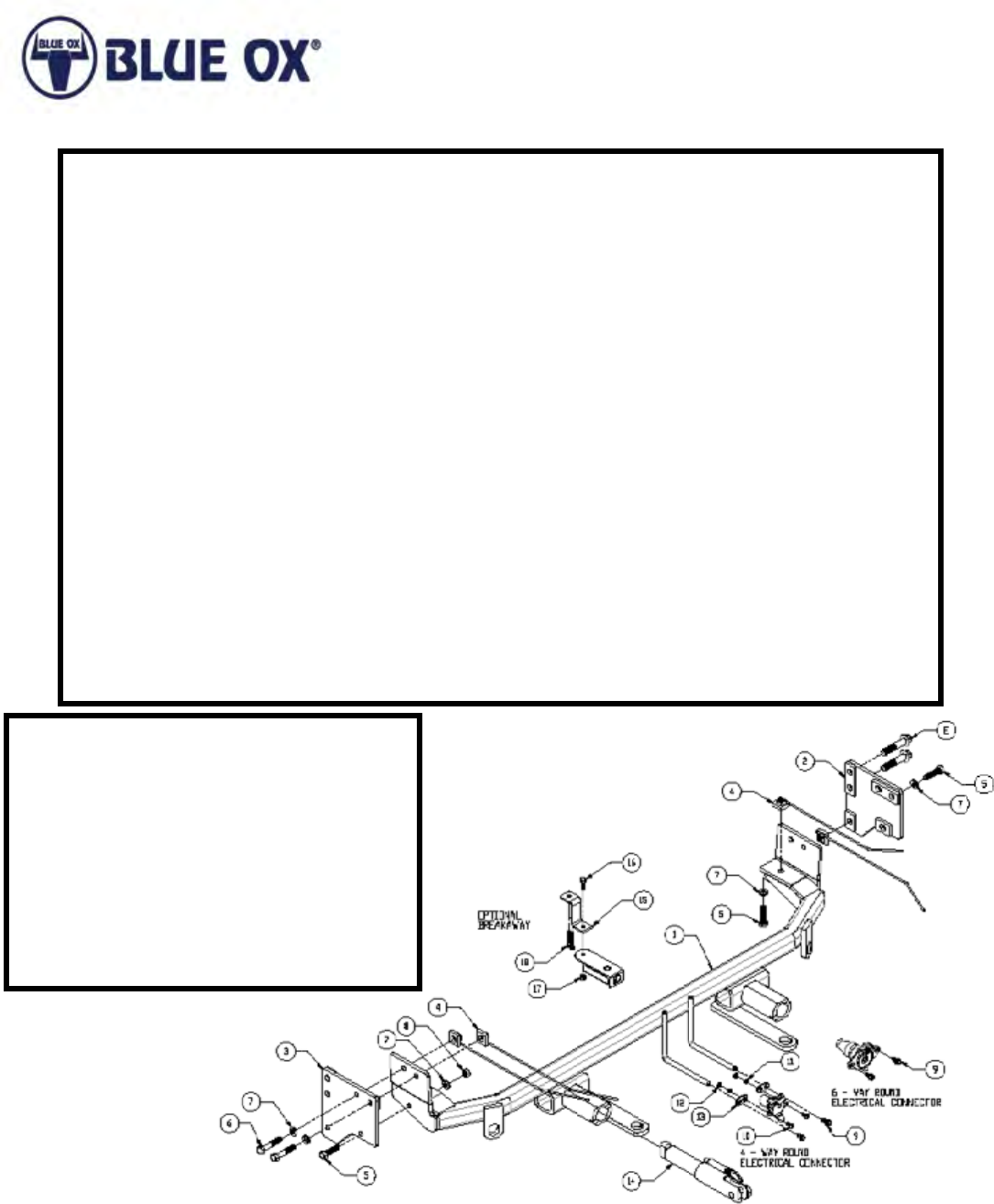

Parts List
Ref. No. Qty. Part No. Description
1 1 61-6904 .......................................................................... WLDM’T, BP, BX1698
2 1 61-6884 .......................................................WLDM’T, SUPPORT, DS, BX1697
3 1 61-6885 .......................................................WLDM’T, SUPPORT, PS, BX1697
4 8 61-5208 ............................................. WLD, NUT PLT, 1/4X1X1, 3/8”/14”WIRE
5 6 201-0440 ...............................................3/8-16 X 1 1/2 HEX BOLT, GRD.5, ZP
6 4 201-0444 ............................................... 3/8-16 X 2 HEX BOLT GRADE 5 ZP.
7 10 203-0010 .................................................................... 3/8 LOCK WASHER, ZP
8 2 202-0090 .............................................. 3/8-16 HEX NYL. INS. LOCK NUT, ZP
9 2 201-0553 ......................................... 1/4-20 X 1/2 HX.WSHD.TYPE F TCS, ZP
10 2 201-0192 ................................................ 10-32 X 1/2 SLOT, RD. HD. SCREW
11 2 203-0054 ......................................................................... #10 LOCK WASHER
12 2 202-0047 ...............................................................................#10-32 HEX NUT
13 2 101-5822 ................................................... ADAPTER, 4 WAY CONNECTOR
14 2 62-3469 ................................................ATT TAB ASSY, REM, SF/LB, 1 HOLE
15 1 102-7056 .................................................................COOLANT BRKT, BX1689
16 1 201-0050 .................................................. 1/4-20 X 3/4 HEX BOLT GRD.5, ZP
17 1 202-0102 ..................................................................1/4-20 HEX NYL NUT, ZP
18 2 201-0654 ............................................... #10-16 X 1 SELF DRILLING SCREW
E 2 ................................................................................. EXISTING METRIC BOLT
2 226-0046 .....................BASEPLATE SAFETY CABLE, 36” CL III (Not Shown)
2 229-0359 .....................................................QUICKLINK, 3/8, ZP (Not Shown)
2 290-0437 ..................................... RECEIVER, CAP PLUG (BLK) (Not Shown)
10MM Socket Flat Screwdriver
13MM Socket Utility Knife
18MM Socket Torque Wrench
9/16” Socket/Wrench Tape Measure
T20 Torx Drill
Large Vise Grip 1 1/2” Hole Saw
Reciprocating Saw 13/32” Drill Bit
Loctite
®
RED
Tools Required
