industries HEATED DISPENSER HD8799 2-Gallon HD8802 5-Gallon

SERVICING INSTRUCTIONS
10
CAUTION
Electric Shock
Hazard
Opening the bottom panel will
expose uninsulated electrical
components.
Disconnect dispenser from
electrical power before
removing bottom panel.

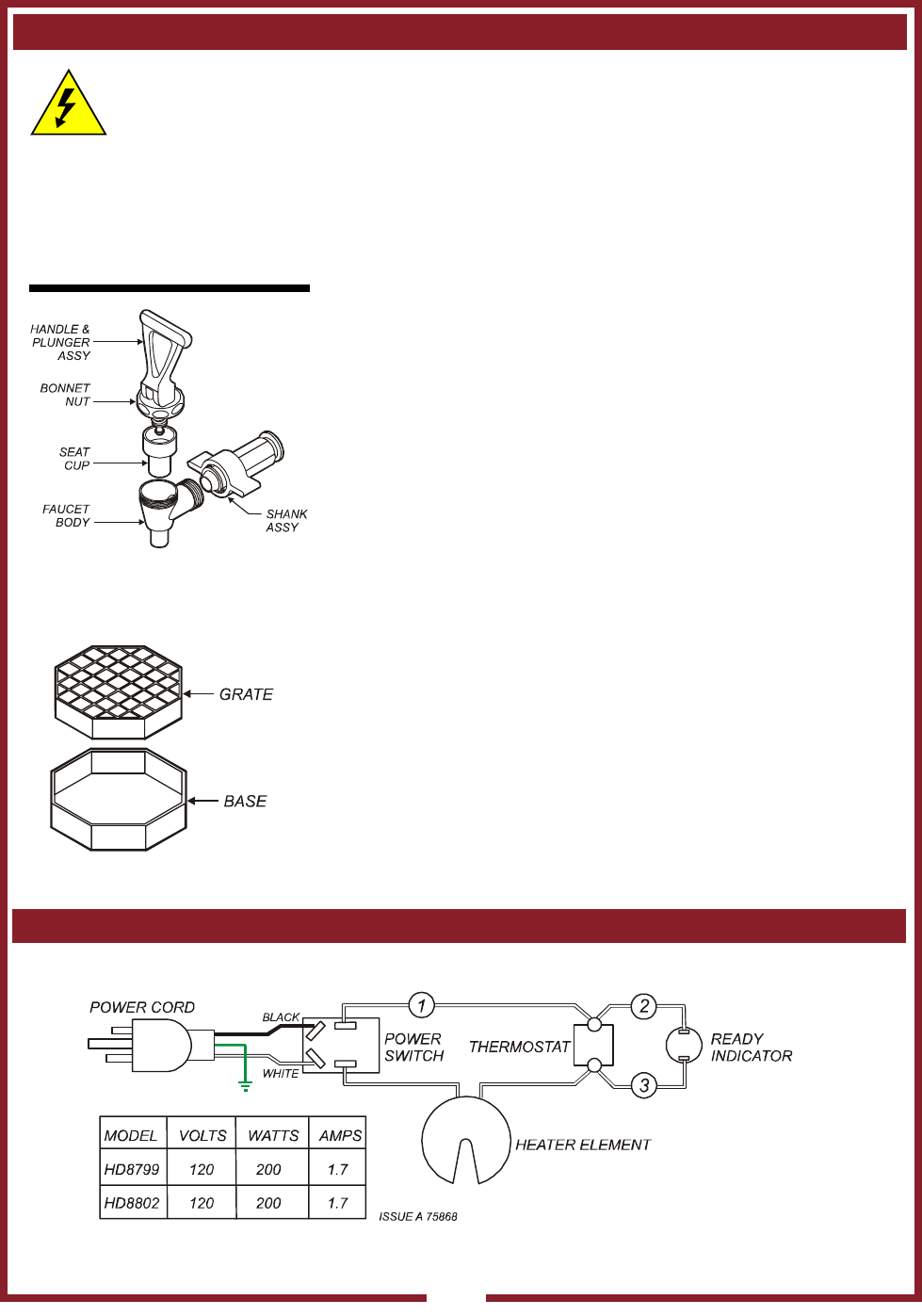

Faucet Assembly
Drip Tray Assembly
ACCESS - BOTTOM PANEL
All internal components are accessible by removing the bottom
panel.
Remove four screws around the bottom of the warmer tank to
free bottom panel from tank assembly.
FAUCET
The faucet may be removed from the shank by turning the
winged collar clockwise.
The faucet bonnet may be removed by turning the bonnet nut
counterclockwise.
The seat cup snaps onto the end of the faucet stem.
DRIP TRAY
The grate sets in the drip tray base, and may be lifted out.
WIRING DIAGRAM
