industries HEATED DISPENSER HD8799 2-Gallon HD8802 5-Gallon

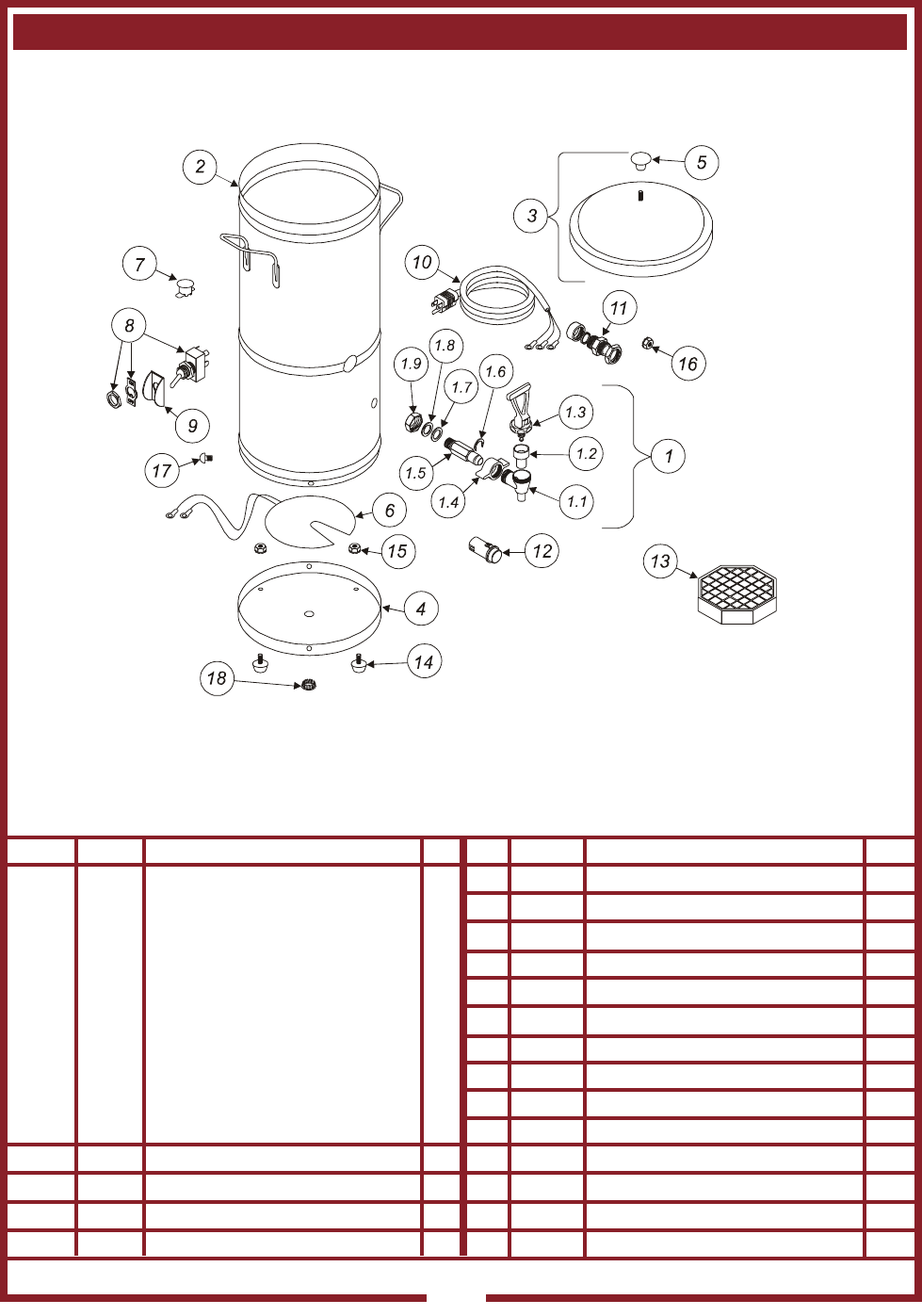

EXPLODED VIEW & PARTS LIST
8
* included in 85865 FAUCET ASSEMBLY
MODEL HD8799 2½-GALLON DISPENSER
ITEM PART # DESCRIPTION QTY
1 85865 FAUCET ASSEMBLY 1
1.1*
BODY FAUCET
1.2*
8700-25L
SEAT CUP
1.3*
ASSEMBLY, HANDLE & PLUNGER
1.4*
8600-27
NUT RETAINING WINGED
1.5*
SHANK, FAUCET W/O SIGHT GLASS
1.6*
8600-26
C CLIP, FAUCET RETAINING
1.7 8600-12 WASHER FLAT NYLON
1.8*
SEAL, O-RING
1.9 8600-50 FITTING, FAUCET NUT
2 85862 ASSEMBLY, TANK BODY 1
3 8600-6 ASSEMBLY, TANK COVER 1
4 85876 PANEL, TANK BOTTOM
5 8600-7 KNOB, TANK COVER 1
ITEM PART # DESCRIPTION QTY
6 85853 HEATING ELEMENT 120V 200W 1
7 85863 THERMOSTAT 140ºF 120V 1
8 50169 SWITCH 250V DPST 1
9 65174 GUARD, SWITCH 1
10 80017 POWER CORD, 120V NEMA5-15P, 6' 1
11 68689 STRAIN RELIEF 120V STRAIGHT 1
12 8718-31 LIGHT, SIGNAL GREEN 120V 1
13 8855-1 ASSEMBLY, DRIP TRAY (pk 6) 1
14 65728 FOOT RUBBER #8-32 THREAD 4
15 51053 NUT #8-32 KEP 4
16 55736 NUT #8-32 KEP GREEN 1
17 SCREW PAN PHL #6 x 3/8 DRILL POINT 6
18 8033-60 BUTTON PLUG 3/8” 1
