Oven Assembly
VENTILATION
SINGLE OVENS
1. Mount the vent shield with the vent guard.
Align the mounting holes in the vent shield
with top holes in the vent guard.
DOUBLE STACKED OVENS
Two CTBRĆAP's or a CTB biscuit oven on top of
a CTBRĆAP
1. Connect the upper and lower flues with the
vent riser. Mount the vent shield with the vent
riser. Align the mounting holes in the vent
shield with top holes in the vent riser.
Stacking a CTBRĆAP on top of a Mark V
1. Mount the vent shield with the vent guard.
Align the mounting holes in the vent shield
with top holes in the vent guard.
2. Insert the flue extension over the flue on the
Mark V. Attach using screws provided.
NOTE: If the oven has a vent guard it must be
removed before installing the flue exĆ
tension.
3. Slide the flat plate of the flue brace under the
top cap on top the CTBRĆAP. The two holes in
the end of the brace must line up with the
holes in the flue extension.
4. Attach the flue brace to the flue extension with
the screws provided.
Flue
Extension
Flue
Brace
Vent
Riser
Vent
Shield
Top Cap
CTBRĆAP on a Mark VCTBRĆAP on a CTBRĆAP
Vent
Guard
Vent
Shield
CTBRĆAP Single Oven
Vent
Guard
Vent
Shield

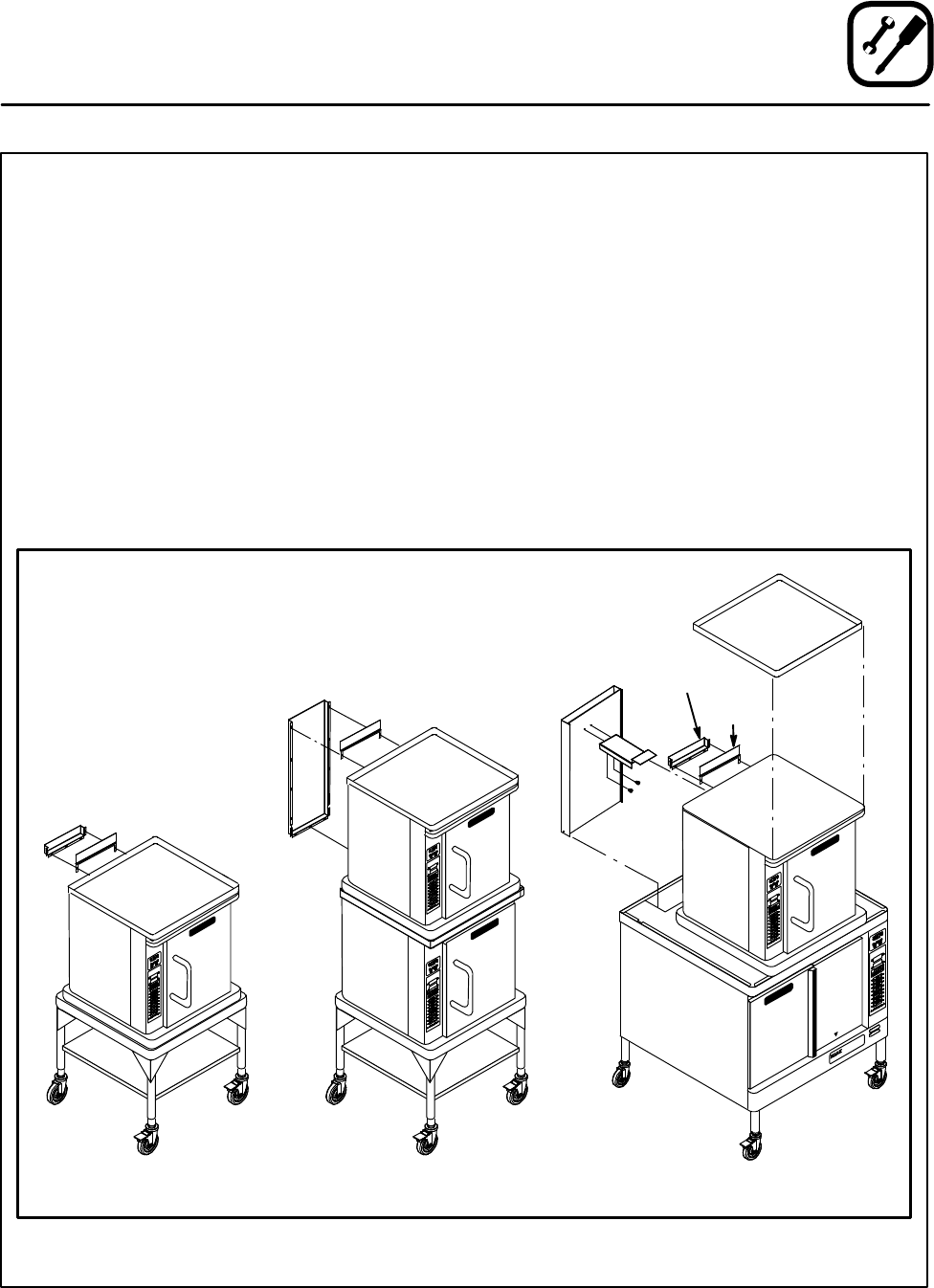

Figure 7
