Timers --- New Style
P/N R1568( M2C)
B2
1A 15
16 18
A3 A2
M2C
.1
.2
.3
.4
.5
.6
.7 .8
.9
1.0

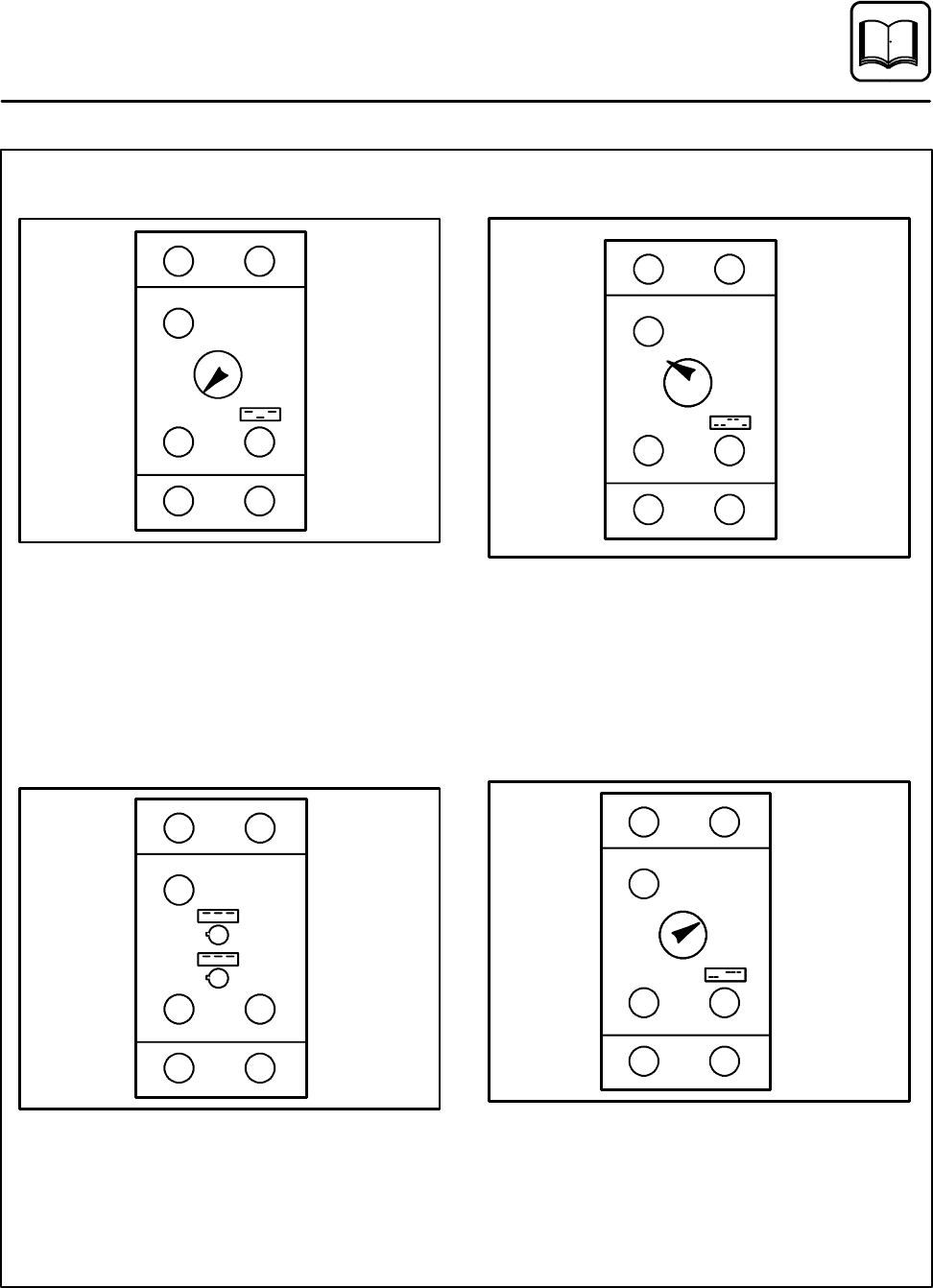

Figure 35
Designation:K4
Color: White body, Blue knobs
Function: R2506 Kit, Delay on release dry up
protector
Time: 2.5 second
P/N R1569 ( 2ML)
B2
1A 15
16 18
A3 A2
M2L
0.5
0.5
Figure 36
Designation:K6
Color: White body, Blue knobs
Function: Blinking
Time: 0.5 seconds
PN R1567 (M2U)
B2
1A 15
16 18
A3 A2
M2U
.6
Figure 37
Designation:K5
Color: White body, Blue knobs
Function: R2523 Kit, Delay on operate
Time: 0.6 seconds
P/N R1567 (M2U)
B2
1A 15
16 18
A3 A2
M2U
1.0
Figure 38
Designation:K7
Color: White body, Blue knobs
F unction: Delay on operate
Time: 1.0 seconds
