Quenching System

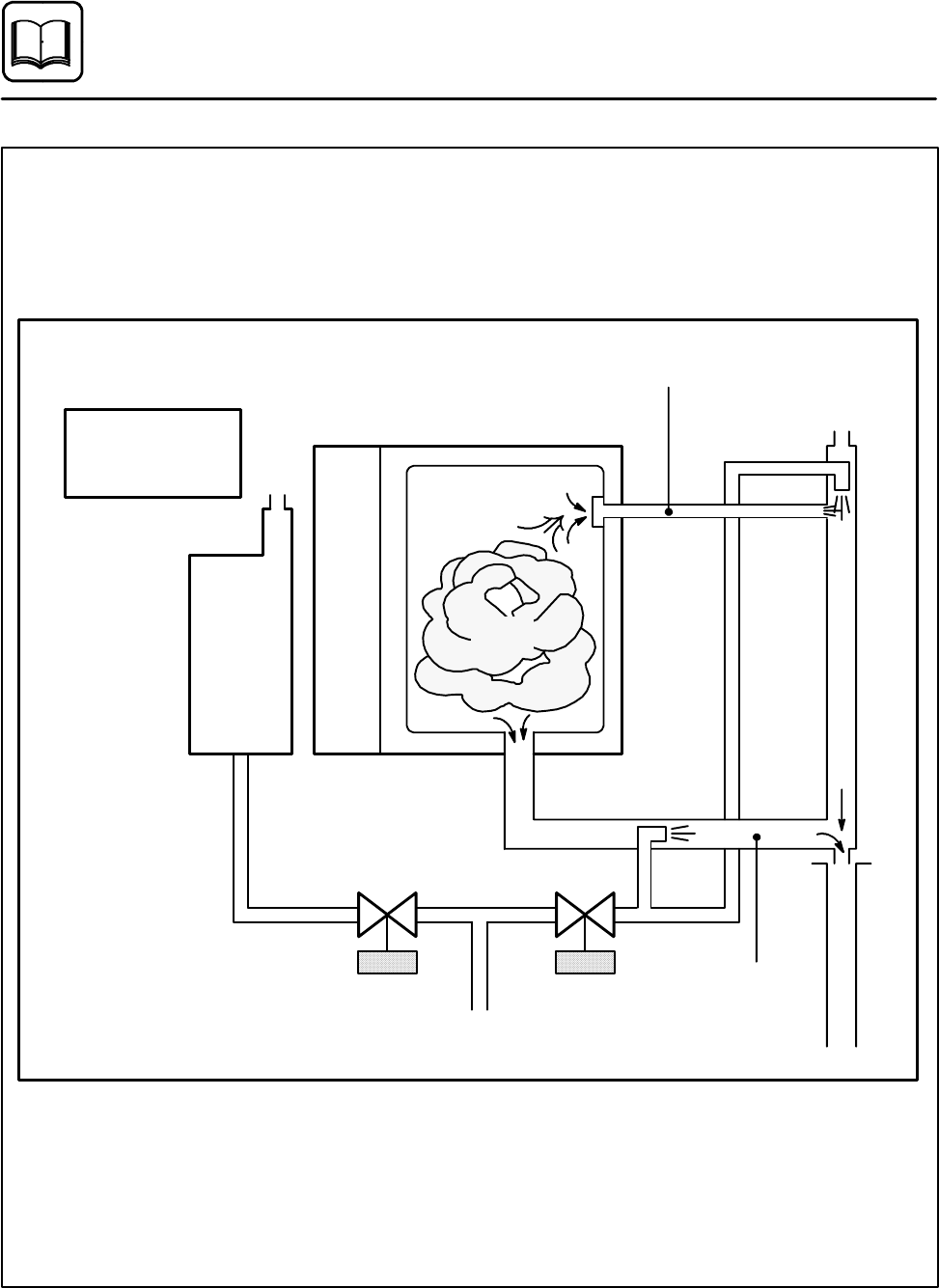

QUENCHING SYSTEM/POSITIVE
When foodis warmed condensationis reducedor
stopped. Slight positive steam pressure (.08 PSI)
builds in cooking compartment, overcoming neg-
ative Venturi pressure. P2 thermostat sensed out -
going steam above 175_F(80_C) and shuts off
steam generator. P4 thermostat senses outgoing
steam in drain about 100_F(38_C) and turns on
quenching system.
P2
175_F(80_C)
P4
SPRAY ON @
100_F(38_C)
Local Limited
Pressire
+.08 PSI
Steam
Flash
Figure 30
