Specifications

Installation

Electrical Connections

This unit should be installed by a certified electri-

cian only. Before making any electrical connec-

tions to these units, check that the power supply

isadequateforthe voltage, amperage, andphase

requirements stated on the rating name plate

mounted on the unit. Electrical specifications and

circuit diagram can be found behind the cover of

the installation cabinet.

All ovens, when installed, must be electrically

groundedinaccordance w ith localcodesorinthe

absence of local codes, w ith the National Electri-

cal Code, ANSI/NFPA 70---Latest Edition and/or

Canadian Electrical Code CSA C22.1 as applica-

ble.

Wiring diagrams are located on the inside of the

louvered side panel.

NOTE: Disconnect the Power Supply to the unit

Before Servicing!

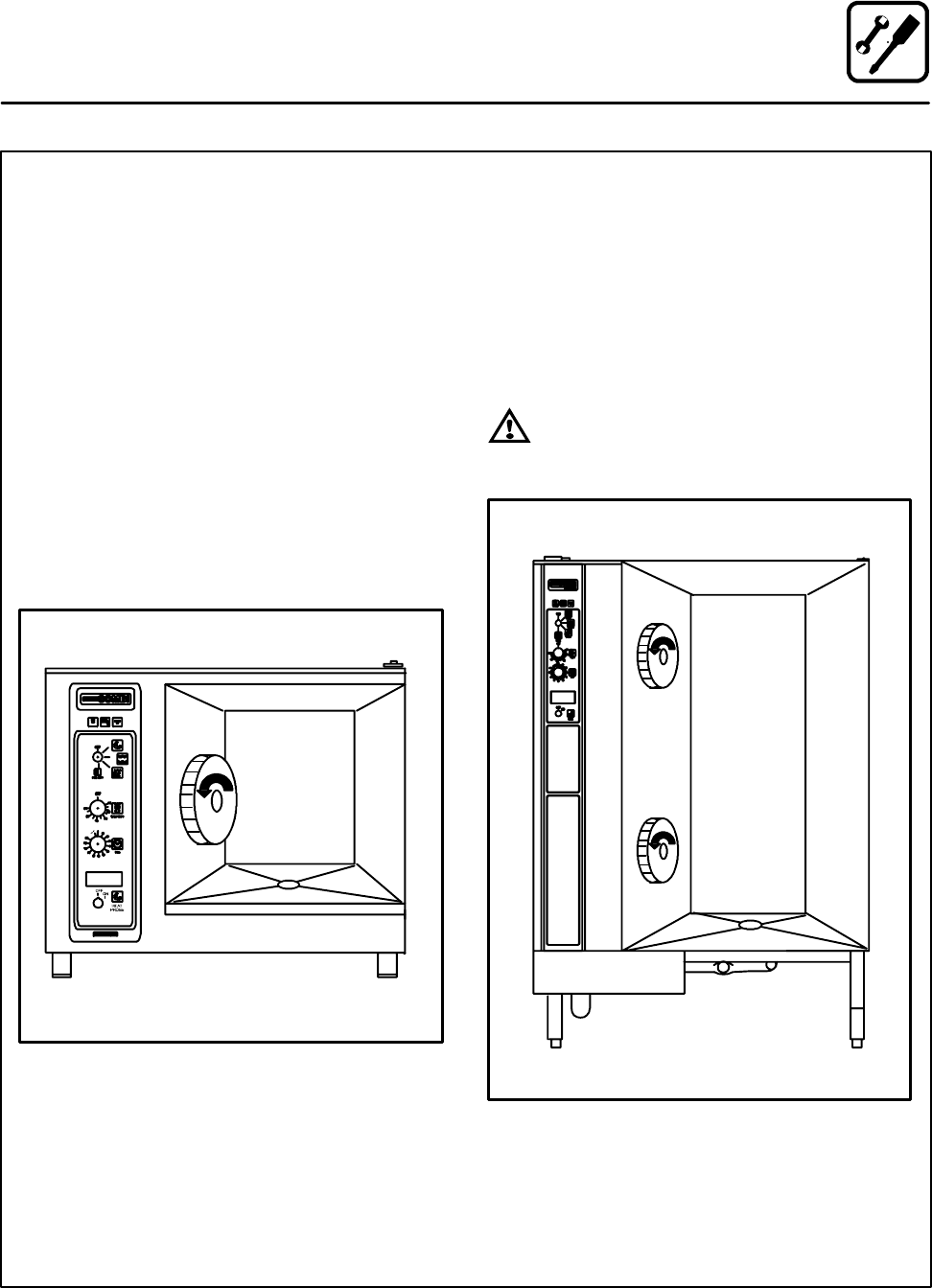

Direction Of Fan Rotation

COS-6, COS-101 and COS-101S

Figure 8

CAUTION! After connecting t he appliance, the

fansshouldbecheckedtoensuretheproperrota-

tion (see diagrams below). If the fans turn in the

wrong direction, the appliance will not function

properly and damage to the unit can occur. Im-

proper connection of the appliance renders the

Blodgett Combi warranty invalid.

NOTE: All manual resets should be restored be-

fore connecting power to the appliance.

WARNING!!

Improper installation will invalidate your

warranty.

COS-20 and COS-201

Direction Of Fan Rotation

Figure 9
