Oven Placemen t
OVEN LEVELING
All Units
Place the Oven/Steamer on a leveland solidfloor.
Sloping or uneven floors can cause the unit to
function improperly.
Minor uneveness of the floor can be corrected by
adjustingthemetallegfeet. The maximumadjust -
ment of the leg is 1 -3/8”.
COS-20 and COS-201
Uneven floors may create difficulty inserting and
removing the transport cart.
It is important to level the oven to the transport
cart. Thisensures that the cart seals tothe frontof
the oven.
When the transportcart is notentirelybeneaththe
unit, be sure the right front cart bracket touches
the bottom of t he door. This willprevent tearing of
the door gasket.
COS-6, COS-101 and COS-101S
We recommend a Blodgett Combi floor stand for
the installation of the table model Oven/Steamer.
P/N ACS-31
P/N ACS-18
P/N ACS-22S
P/N ACS-18S
OVEN LOCATION
Followthese guidelines carefully when selecting a
location for your Combi-Oven/Steamer.
Left Side
The vents should have adequate air space. Ac-
cording to our agency listings, a minimum of 4” is
required on the left side of the unit for operation.
However, it is recommended that at least 12” of
space be provided between this and other
appliances,water,heatsource,walls,etc.forserv-
icing. Grease or heat sources should not be lo-
cated near the air vents on the left s ide of the unit.
Consult the factory for an optional protective side
heat shield.
COS-6 P/N R9047
COS-101 P/N R9048
COS-101S P/N R9068
COS-20 P/N R9050
COS-201 P/N R9049
Right Side
Position the unit a minimum of 1” from the right
wall. DO NOT
place within 6” of any heat source
on the right side.
Back
The optional hose assembly projects approxi-
mately 6” from the back of the oven. Position the
unit so that the hose assembly is a minimum of 6”
from the rear wall.
Maximum
Adju stment
1-3/8”
F oot

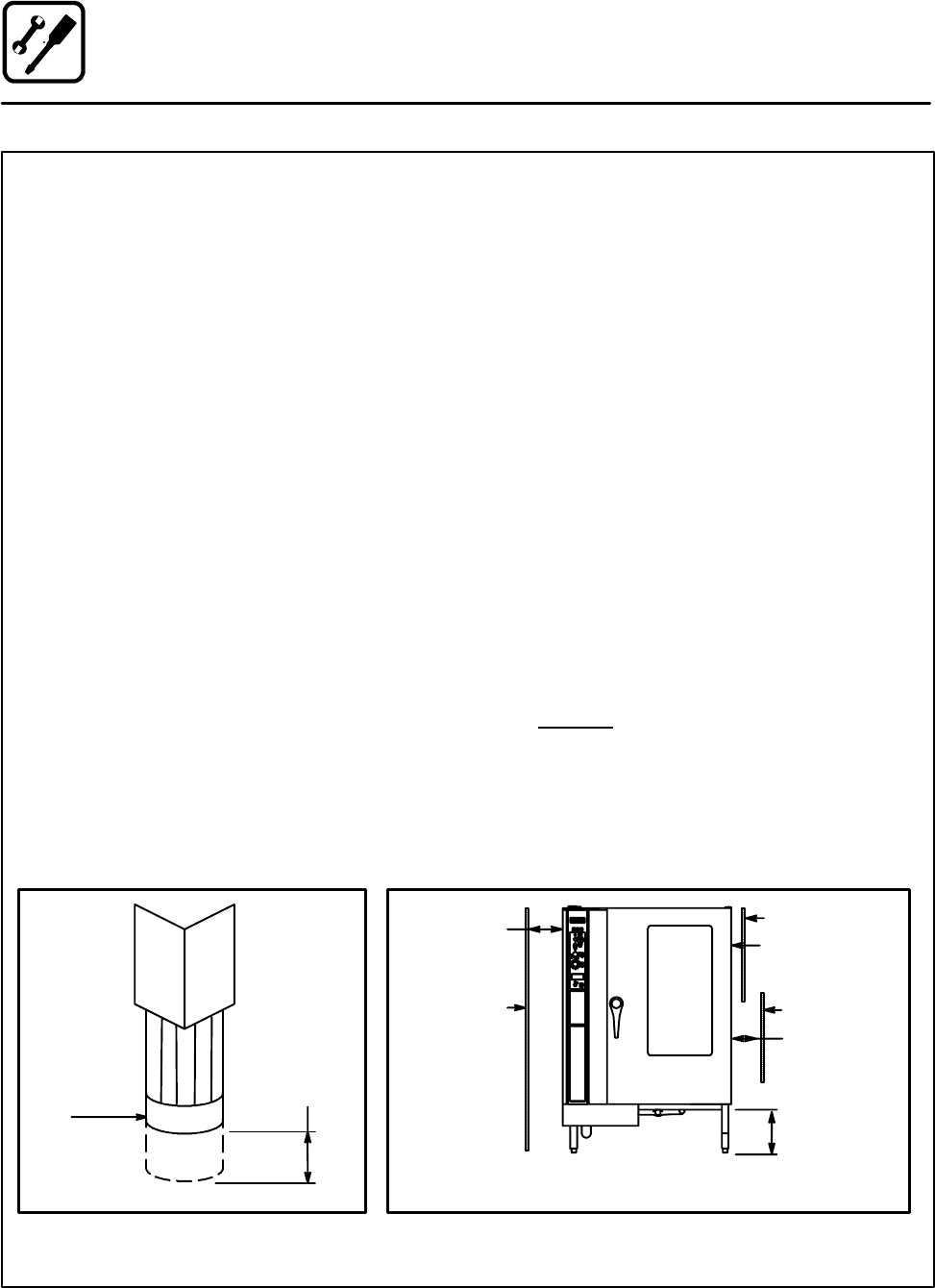

Figure 3
Wall or
Heat Source
Left Side
Minimum
Clearance 12”
Right Side
Minimum
Clearance 6”
Heat Source
Wall
Right Side
Minimum
Clearance 1”
Clearance for
Transport Cart
COS-20 Shown --- Clearances the same for all models
Figure 4
