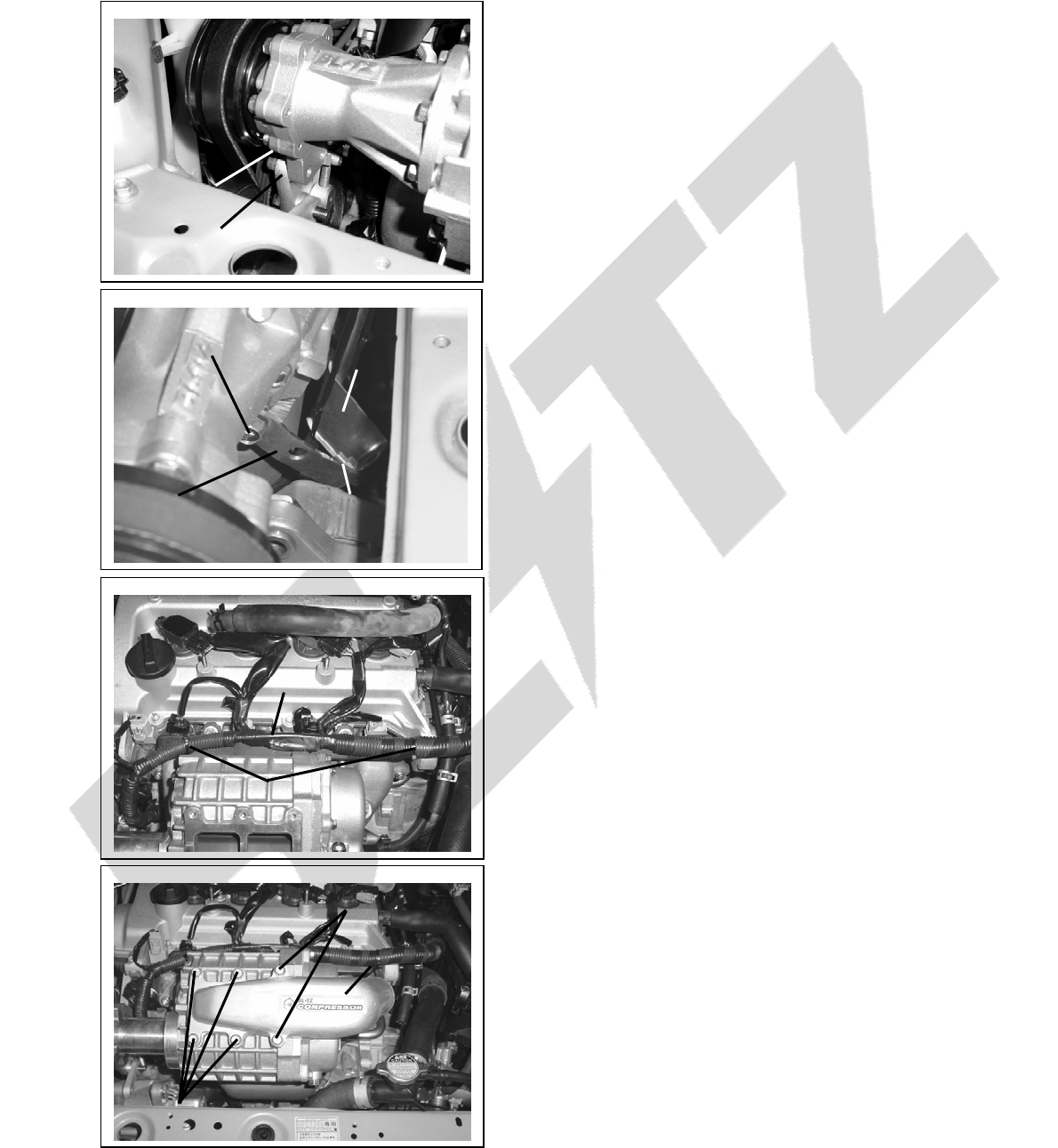

24) Install the 2.Chamber using the
5.CompressorGasket; four Flange Bolts and
two Flange Bolts.
Install back the removed fuel delivery pipe in22)
“steps 17) and 18)”.
Secure the harness to the fuel delivery pipe
using the 32.Lock Tight L.
20) Install the 7.Tension Bracket A at the nose
section of the Compressor aligning the two
upper holes of the bracket with the two holes
at the lower section of the compressor’s nose
using two flange Bolts.
Fully
23)
Flange
tighten the 6.alternator Bracket and
the 7.Tension Bracket.
Bolt
.Tension
Bracket A
①Flange Bolt
Flan
g
e Nut
11.Level gauge
Stay
⑦Flange Bolt
Flan
g
e Nut
Genuine Oil
Level Gauge
Guide
21)
T
o install the genuine oil level gauge guide,
attach the 11.Level Gauge Stay by loosening
the Flange Bolt and the Flange Nut that
is holding the 9.Compressor Stay and use one
Flange Bolt and one Flange Nut.
Harness
32.Lock Tight
Flange Bolt
Flange Bolt
2.Chmaber
