WARNING: All images and text in this manual is the property of Blitz Co., Ltd. (Japan).

No parts of this manual may be reproduced, stored in retrieval systems, or transmitted in any way

without prior written permission of Blitz Co., Ltd. (Japan).

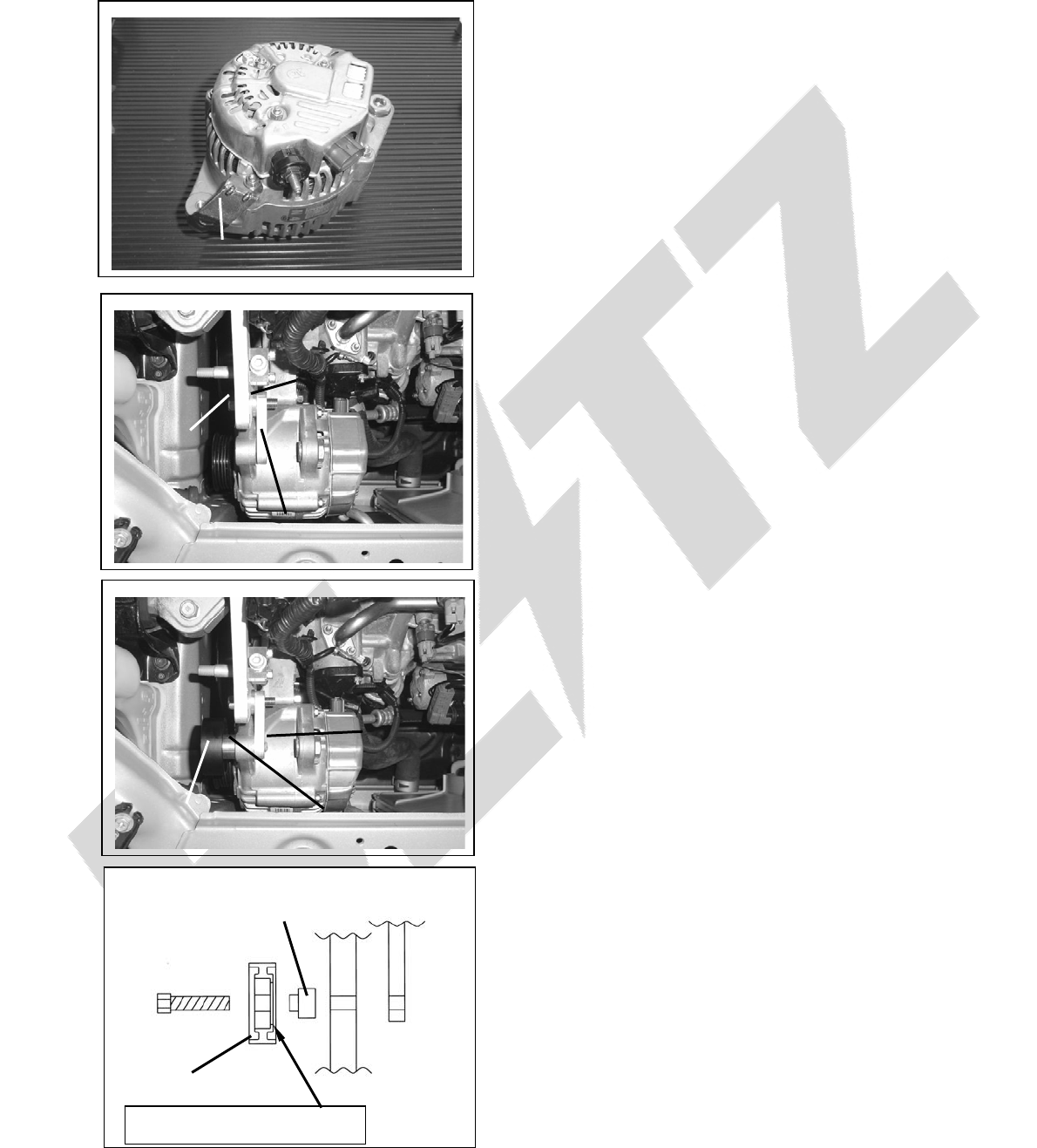

Genuine Alternator

19.Bracket Collar B

⑥Flange

Bolt

6.Alternator Bracket.

16.Pulley Collar A

14.Idle Pulley

⑧Hex Bolt

⑮

Washe

5) Install temporarily the bottom section of the

alternator using a ⑱Flange Bolt(1P) and a ⑬

Flange Nut (1P).

※ Attach the upper and lower sides in reverse

order from the genuine attachment.

※ Secure the ⑬Flange Nut after tightening the

⑱Flange Bolt.

6) Fully tighten the upper and lower bolts

of the

alternator by installing a 14.Idle Pulley using

the 16.Pulley Collar A; ⑧Hex Bolt

(

)

and a

⑮Washer (1P).

※ Position the flange side of the 14. Pulley

toward the 16. Collar.

※ Make alterations with caution to the air

conditioner

pipe to make some space if it

gets in contact with the alternator.

7) Attach the alternator coupler and the B

terminal.

14.Pulley

Alternator

Flange towards the

⑧Hex Bolt

⑮

Washer

16.Colla

6.Bracket

3) Remove the genuine alternator’s stay.

4) Install temporarily

the 6. alternator bracket

using the 19.Bracket Collar B (1P) and the ⑥

Flange Bolt (1P).
