V Belt

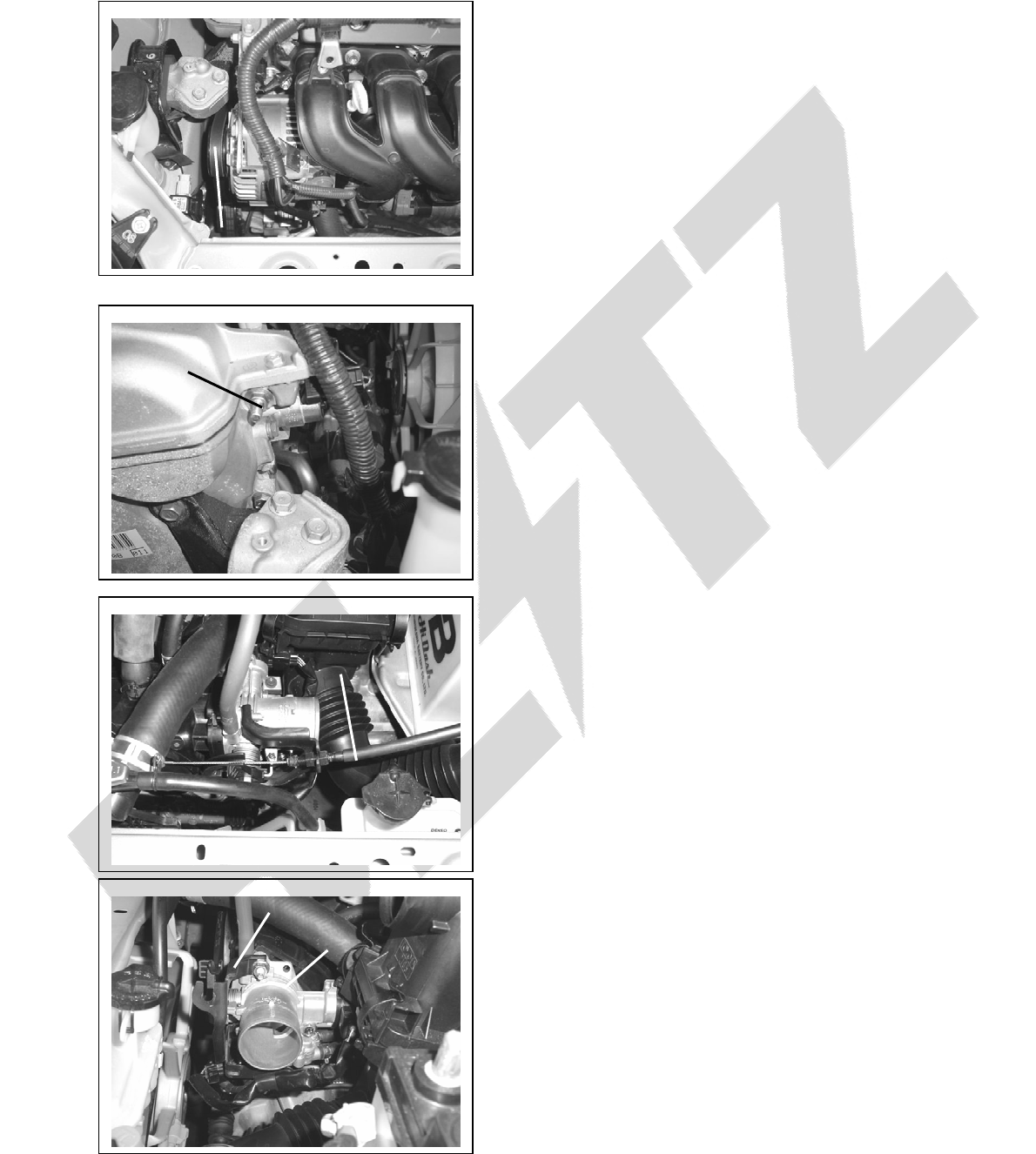

7) Remove the V belt.
8) Remove the alternator by removing one nut
located at the bottom of the alternator.
9) Remove the bolt shown in the figure.
Bolt
Throttle Cable
T
hrottle Bod
y
Throttle Cable
Bracket
10) Remove the throttle cable.
11) Remove the throttle cable with the gasket by
removing one bolt and two nuts.
※It is possible to work without removing the
v
entilation hose, water bypass hose and the
coupler.
