ｂ．ボルト

(C. n) Stud

(C. 23) Pipe No. 1

(C. 24)

Pipe No. 2

(C. 44)

φ19 hose

(C. 51)

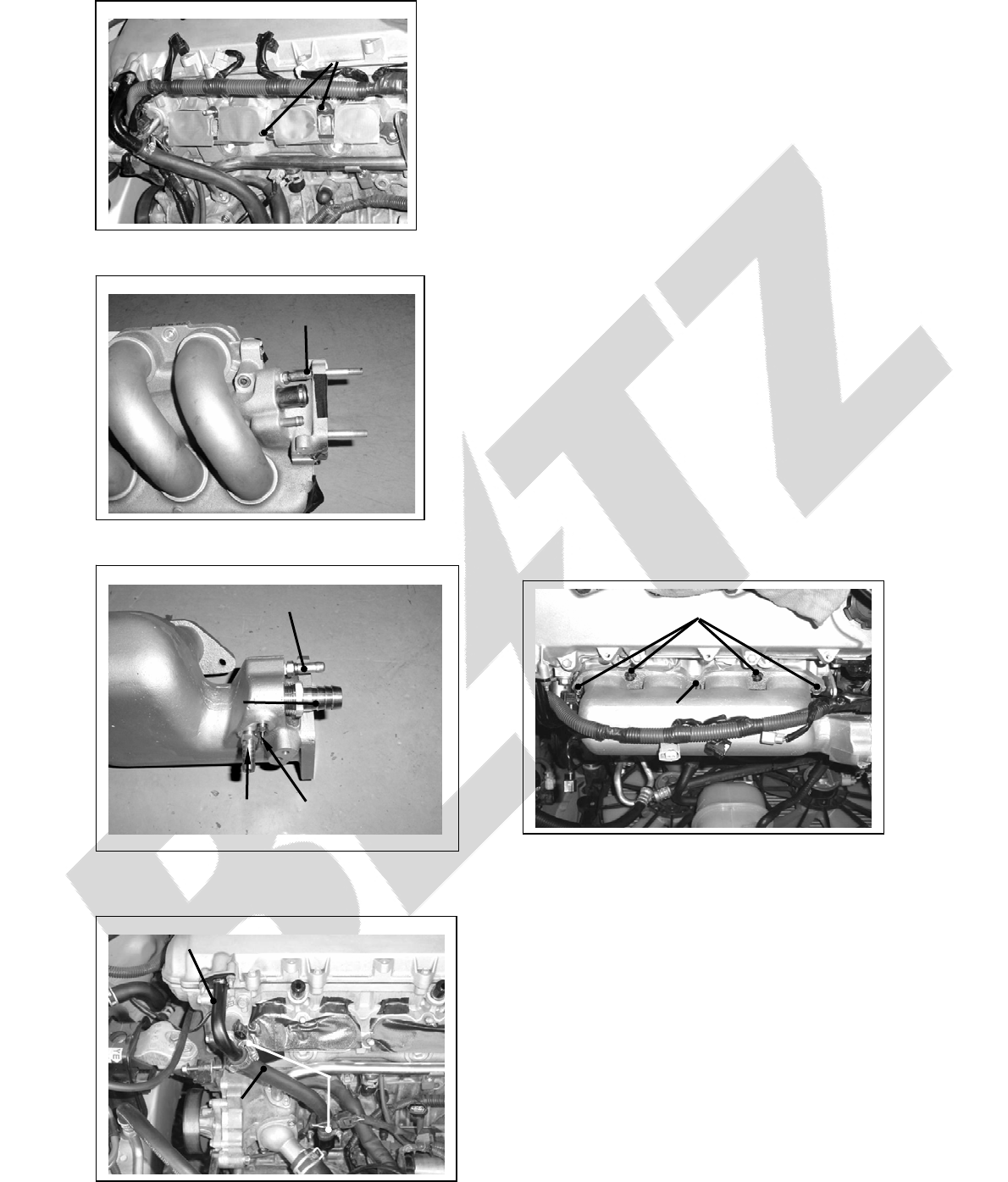

(7) Installation of the blow by hose.

① Install the

(

C. 23

)

blow by pipe No. 1, and

(

C. 24

)

blow by pipe No. 2 by reusing

the genuine gasket and nuts.

※Appling torque.

＝１０Ｎ・ｍ（１００ｋｇｆ・ｃｍ）

② Cut the supplied hose

(

C. 44

)

approximately 300mm to connect the

ends of the blow by pipe No.1 and No.2,

and tighten the ends with the supplied

(C. 51) clamp.

(6) Installation of (C. 2) Intake manifold.

① Remove the long stud bolt

(

one bolt

)

at the right

end from the two genuine stud bolts.

② Install the (C. n) stud bolt M8 (2P).

③ Remove one genuine nipple from the genuine

intake manifold.

④ Install the genuine nipple removed from step

③, the (C. 41) nipple ) nippleφ21-3/4 PT, the

(C. 40) nipple φ 6-1/8 PT and the

(

C. 39

)

nipple φ 4-1/8 PT to the supplied intake

manifold.

Genuine Nipple

※ Use a seal tape or a sealant to install the

nipple and the sink plug.

⑤ Install the

(

C. 2

)

intake manifold by using two

sets of genuine intake manifold bolts and nuts,

and one (C. p) M8 flange nut.

※Appling torque.

＝３４Ｎ・ｍ（３５０ｋｇｆ・ｃｍ）

Clamp

Genuine Ni

(C. 41) Nipple

(C. 39) Nipple

(C. 40) Nipple

Genuine bolts and nuts

(

C. p

)

Nut
