Service manual

5-12
Samsung Electronics
Disassembly/Reaasembly
NO. CONNECTOR NO. DIRECTION CONNECTOR NO.
Œ KCN2 POWER PCB JACK PCB CN18
´ CN18 JACK PCB POWER PCB KCN2
ˇ CON22   PLAY PCB JACK PCB CN16
¨ CN16 JACK PCB PLAY PCB CON22
ˆ CN12 JACK PCB MAIN PCB CN7
Ø CN7 MAIN PCB JACK PCB CN12
∏ CN11  JACK PCB MAIN PCB CN8
” CN8 MAIN PCB JACK PCB CN11
’ CN5 DECK PCB MAIN PCB CN6
˝ CN6 MAIN PCB DECK PCB CN5

CT1
CT1
CT2
CT2
CT3
CT3
CT4
CT4
CT5
CT5
Œ
´
ˆ
¨
∏
ˇ
Ø
”
’
˝
POWER PCB
JACK PCB
PLAY PCB
MAIN PCB
DVD-709
CT1
CT3
CT2
CT4
CT5

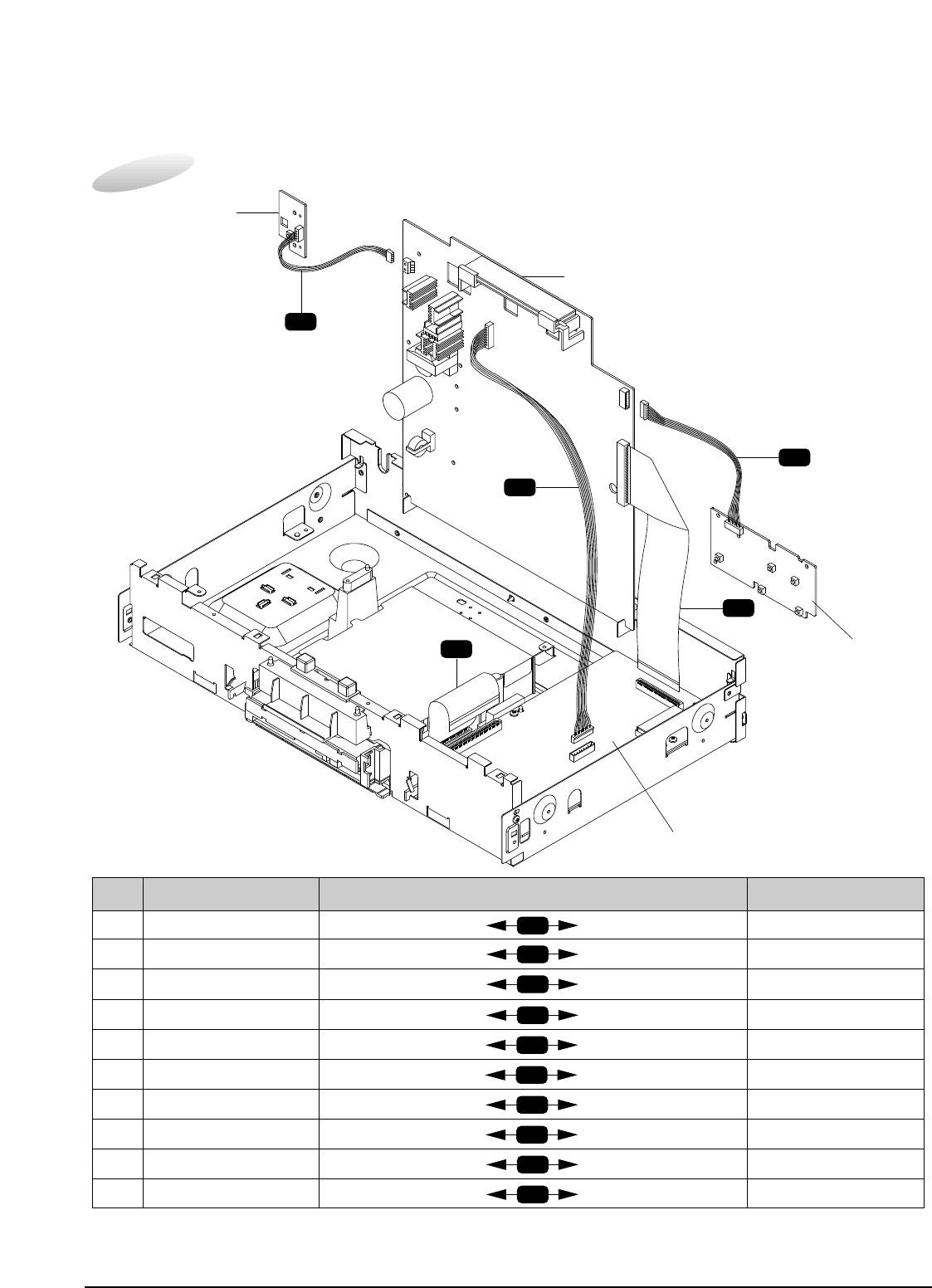

Fig. 5-12 Connector Diagram (DVD-709)
