Service manual

5-4
Samsung Electronics
Disassembly/Reaasembly
Π2 SCREWS
ˇ 2 SCREWS
ˆ 3 SCREWS
´ ASS'Y FRONT-PANEL
¨ POWER PCB
Ø PLAY PCB

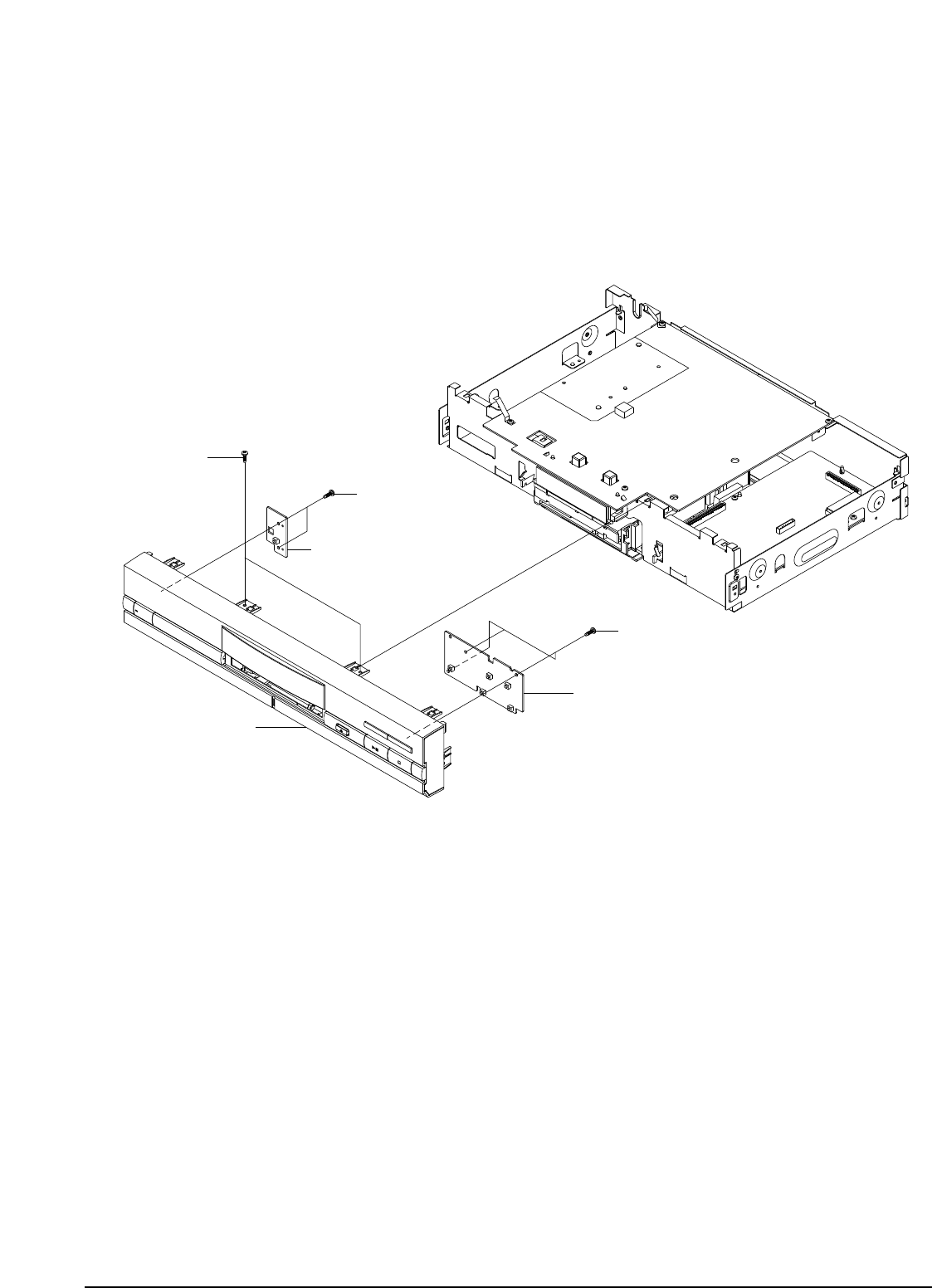

Fig. 5-4 Ass’y Front-Panel, Power PCB, Play PCB Removal (DVD-709)
5-1-4 Ass’y Front-Panel, Power PCB, Play PCB Removal (DVD-709)
1) Remove 2 Screws Œ and AssÕy Front Panel ´.
2) Remove 2 Screws ˇ and Power PCB ¨.
3) Remove 3 Screws ˆ and Play PCB Ø.
