Service manual
Samsung Electronics 4-1
4. Operating Instructions
4-1 NTSC (DVD-909/709)

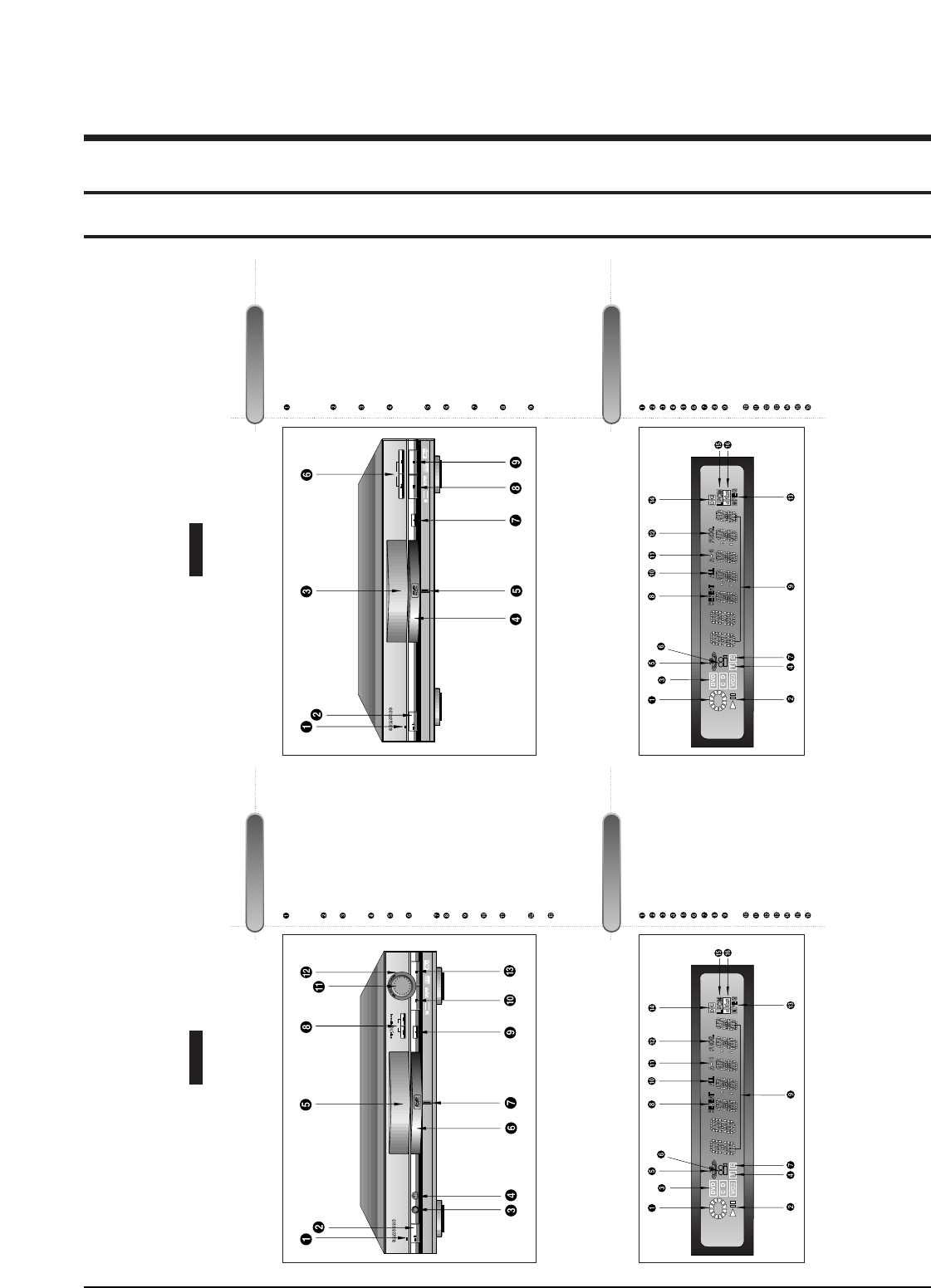

Front Panel Controls
Description-Front Panel
DVD-909
Front Display
STANDBY LAMP
• When the unit is first plugged in, the indi-
cator lights. When power is pressed on,
the lamp goes out.
POWER
• Use to turn the power on and off.
HEADPHONES JACK
• You can attach headphones here for pri-
vate listening.
HEADPHONES VOLUME
• Use to adjust headphones volume level.
DISPLAY (See below)
• Operation indicators are displayed here.
DISC TRAY
• Press OPEN/CLOSE to open and close
the disc tray.
GREEN LAMP
SKIP/SEARCH
• Use to skip or search a scene or music.
OPEN/CLOSE
• Press to open and close the disc tray.
PLAY/PAUSE
• Begin or pause disc play.
JOG DIAL
• Operates frame by frame playback. In
CD mode, performs track search.
SHUTTLE DIAL
• Performs fast or slow motion playback.
STOP
• Stops disc play.
OPEN/
CLOSE
POWER
STANDBY
PHONE
ADVANCED DOLBY DIGITAL DECODER BUILT-IN
LEVEL
SKIP
MIN MAX
OPEN/
CLOSE
OPEN/
CLOSE
DIGITAL VIDEO
SPATIALIZER
N-2-2
DVD/VIDEO-CD/CD PLAYER DVD-909
DISC OPERATION ROTARY INDICATOR
OPERATION INDICATOR
DISC TYPE INDICATOR
TRACK INDICATOR
3D SOUND INDICATOR
ANGLE INDICATOR
CHAPTER INDICATOR
REPEAT INDICATOR
CHAPTER, TITLE, TRACK & MESSAGE
INDICATOR
ALL REPEAT INDICATOR
A-B REPEAT INDICATOR
PROGRAM PLAY INDICATOR
MPEG INDICATOR
DOLBY DIGITAL INDICATOR
LINEAR PCM INDICATOR
DTS INDICATOR
Description-Front Panel
DVD-709
Front Panel Controls
Front Display
STANDBY LAMP
• When the unit is first plugged in, the indi-
cator lights. When power is pressed on,
the lamp goes out.
POWER
• Use to turn the power on and off.
DISPLAY (See below)
• Operation indicators are displayed here.
DISC TRAY
• Press OPEN/CLOSE to open and close
the disc tray.
GREEN LAMP
SKIP/SEARCH
• Use to skip or search a scene or music.
OPEN/CLOSE
• Press to open and close the disc tray.
PLAY/PAUSE
• Begin or pause disc play.
STOP
• Stops disc play.
OPEN/
CLOSE
STANDBY
OPEN/
CLOSE
24bit 96kHz AUDIO D/A CONVERTER
DIGITAL VIDEO
SPATIALIZER
N-2-2
DVD/VIDEO-CD/CD PLAYER DVD-709
POWER
SKIP
DISC OPERATION ROTARY INDICATOR
OPERATION INDICATOR
DISC TYPE INDICATOR
TRACK INDICATOR
3D SOUND INDICATOR
ANGLE INDICATOR
CHAPTER INDICATOR
REPEAT INDICATOR
CHAPTER, TITLE, TRACK & MESSAGE
INDICATOR
ALL REPEAT INDICATOR
A-B REPEAT INDICATOR
PROGRAM PLAY INDICATOR
MPEG INDICATOR
DOLBY DIGITAL INDICATOR
LINEAR PCM INDICATOR
DTS INDICATOR
