CONNECTIONS
C hoosing a Connection

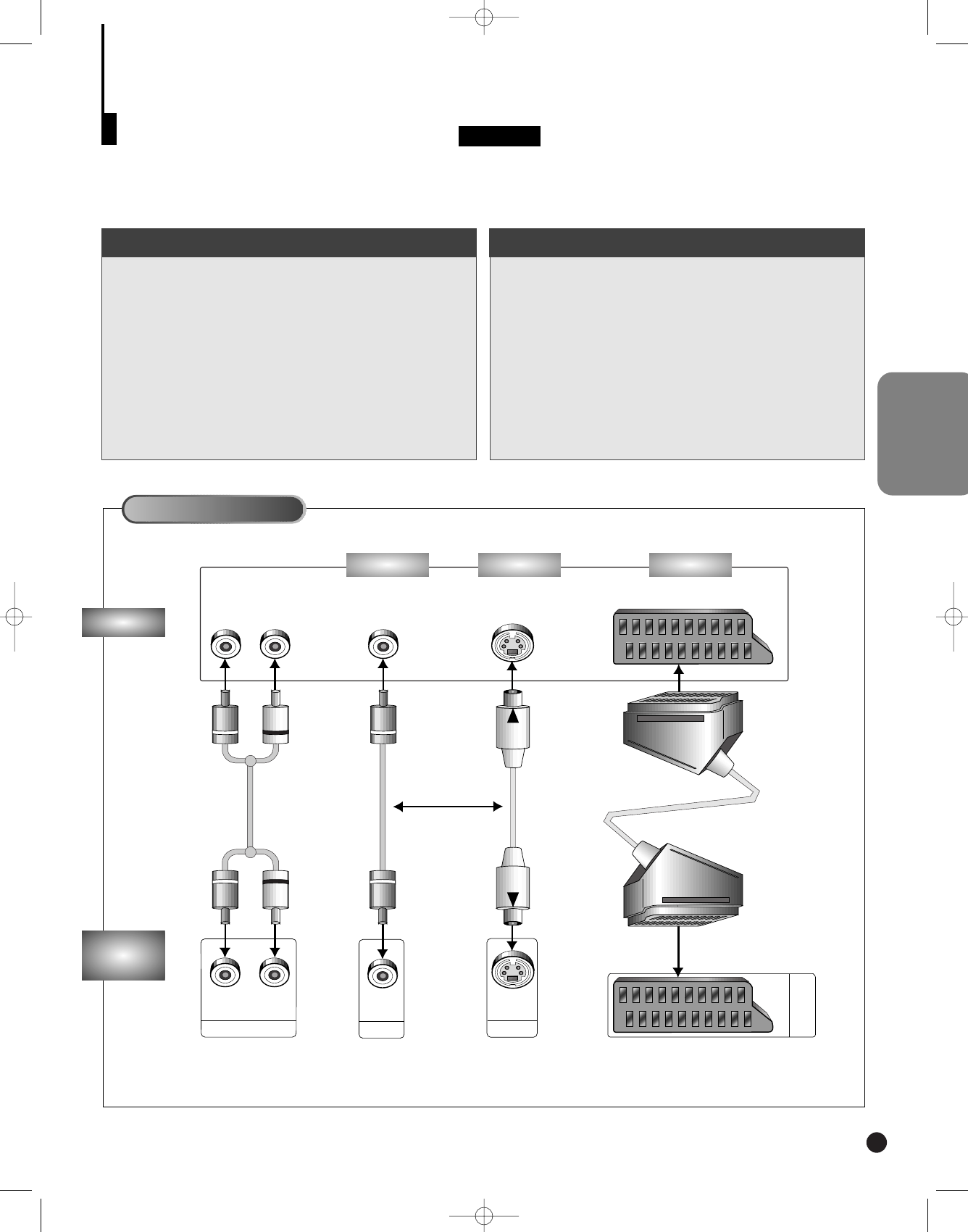

The following diagrams show common connection examples that can be used for connecting your DVD player
to a TV or other equipment.
DVD-709
Before Connecting the DVD Player Connecting to a TV (For Video)
RL
ANALOG AUDIO OUT
RL
VIDEO OUT
S-VIDEO OUT
AV
TV
DVD
PLAYER
17
Connecting to a TV
• Method 1
DVD Player + TV with Video Input Jack
• Method 2
DVD Player + TV with S-Video Input Jack
• Method 3
DVD Player + TV with Scart Input Jack (Audio &
Video)
• Always turn off the DVD player, TV, and other
components before you connect or disconnect any
cables.
• Refer to owner’s manual of the additional compo-
nents you are connecting for more information for
those particular components.
AV Cable
(included)
S-Video Cable
(included)
Scart Cable
(not included)
Good
Basic Audio
(In case of
Method 1 or 2)
Best picture
(If RGB is selected in
SETUP MENU)
Better
Video Input Jack
Audio Input Jacks
S-Video Jack
Method 1
Method 2
Scart Input Jack
Method 3
TV (Normal, Widescreen, Projection, etc..)
OR
