User Manual

3
EN

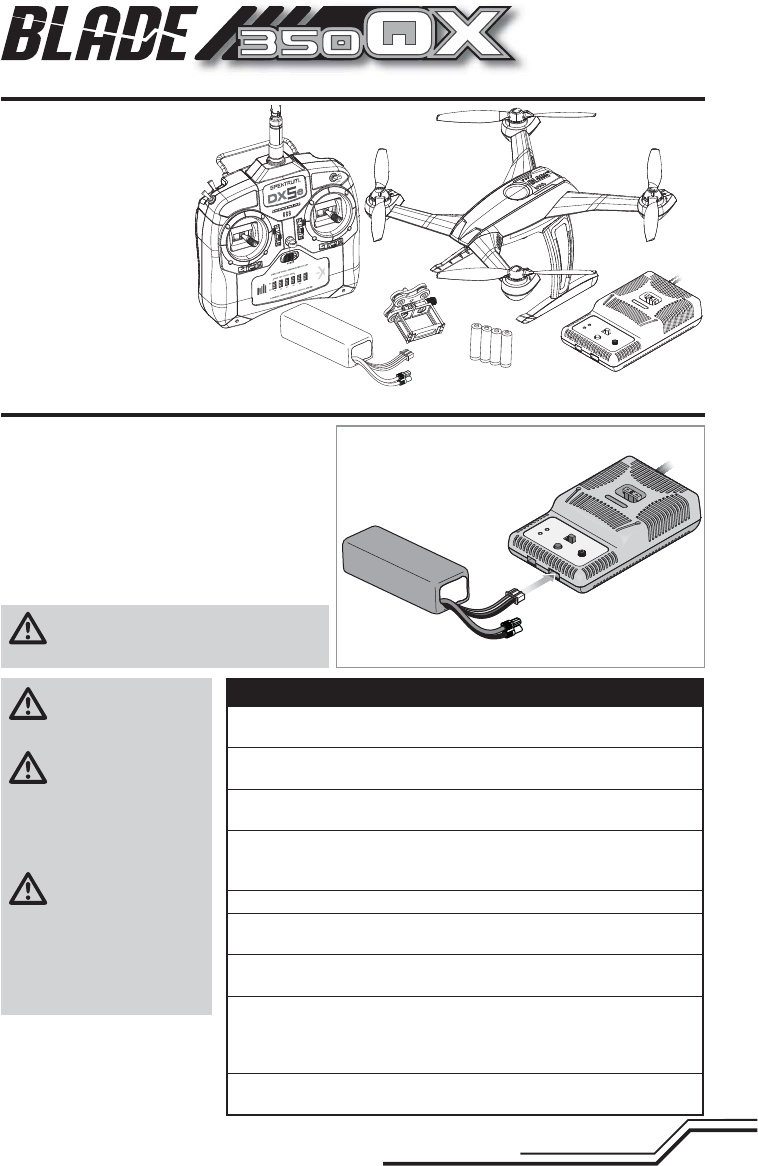

The Battery Charging Process
1. Charge only batteries that are cool to the touch and are not damaged. Look at the
battery to make sure it is not damaged e.g., swollen, bent, broken or punctured.
2. Attach the input cord of the charger to the appropriate power supply (12V acces-
sory outlet).
3. When the Li-Po charger has been correctly powered up, there will be an approxi-
mate 3-second delay, then an audible “beep” and the green (ready) LED will fl ash.
4. Turn the control on the Amps selector so the arrow points to the charging rate
required for the battery (the 2200mAh Li-Po battery will charge at 2.0 amps). DO
NOT change the charge rate once the battery begins charging.
5. Move the cell selector switch to 3-cell for your battery.
6. Connect the balancing lead of the battery to the 3-cell (4 pin) charger port and
press the Start button to begin battery charging.
7. The green and red LEDs may fl ash during the charging process when the charger
is balancing cells. Balancing prolongs the life of the battery.
8. When the battery is fully charged, a beep will sound for about 3 seconds and the
green LED will shine continuously.
Attempting to charge an over-discharged battery will cause the charger to repeat-
edly fl ash and beep, indicating an error has occurred.
9. Always unplug the battery from the charger immediately upon completion of
charging.
Charging the Flight Battery
E-fl ite
®
2-3S LiPo Balancing Charger Specifi cations
• Input power: 10.5–15.0V DC, 3-amp
• Charges 2- to 3-cell Li-Po packs with minimum
capacity of 500mAh
E-fl ite 3S 11.1V 2200mAh Li-Po Battery Pack
The E-fl ite
®
3S Li-Po battery pack features a balancing
lead that allows you to safely charge your battery pack
when used with the included E-fl ite Li-Po balancing
charger.
CAUTION: The balance connector must be
inserted into the correct port of your charger
prior to charging.
CAUTION: Overcharg-
ing a battery can cause
a fi re.
CAUTION: Only use a
charger specifi cally
designed to charge a Li-Po bat-
tery. Failure to do so could result
in fi re causing injury or property
damage.
CAUTION: Never exceed
the recommended
charge rate.
NOTICE: If using a battery other
than the included Li-Po battery,
refer to your battery manufac-
turer’s instructions for charging.
®
Box Contents
• Blade 350 QX
• Camera mount
• 3S 11.1V 2200mAh
Li-Po Battery Pack
• 2-3S DC Li-Po Balancing
Charger
• DX5e DSMX 5-Channel
Transmitter (RTF only)
• 4 AA Batteries (RTF only)
