LUMINAIRE PHOTOMETRIC TEST REPORT
NAME:
SPEC.:
MFR.: Blackjack Lighting
TYPE:STL-06P-BL or PC-FD
DIM.:
SUR.:
WEIGHT:
SERIAL No.:
Shielding Angle:
Test:U:120.00V I:0.0893A P:10.384W PF:0.9686 Freq:60.00Hz Lamp Flux:364.394x1 lm
0
30
60
90
120
150
-/+180
-150
-120
-90
-60
-30
UNIT:cd
C0/180,155.7
UNIT:cd
C90/270,156.0
AVERAGE BEAM ANGLE(50%):155.8 DEG
0
16
32
48
64
80

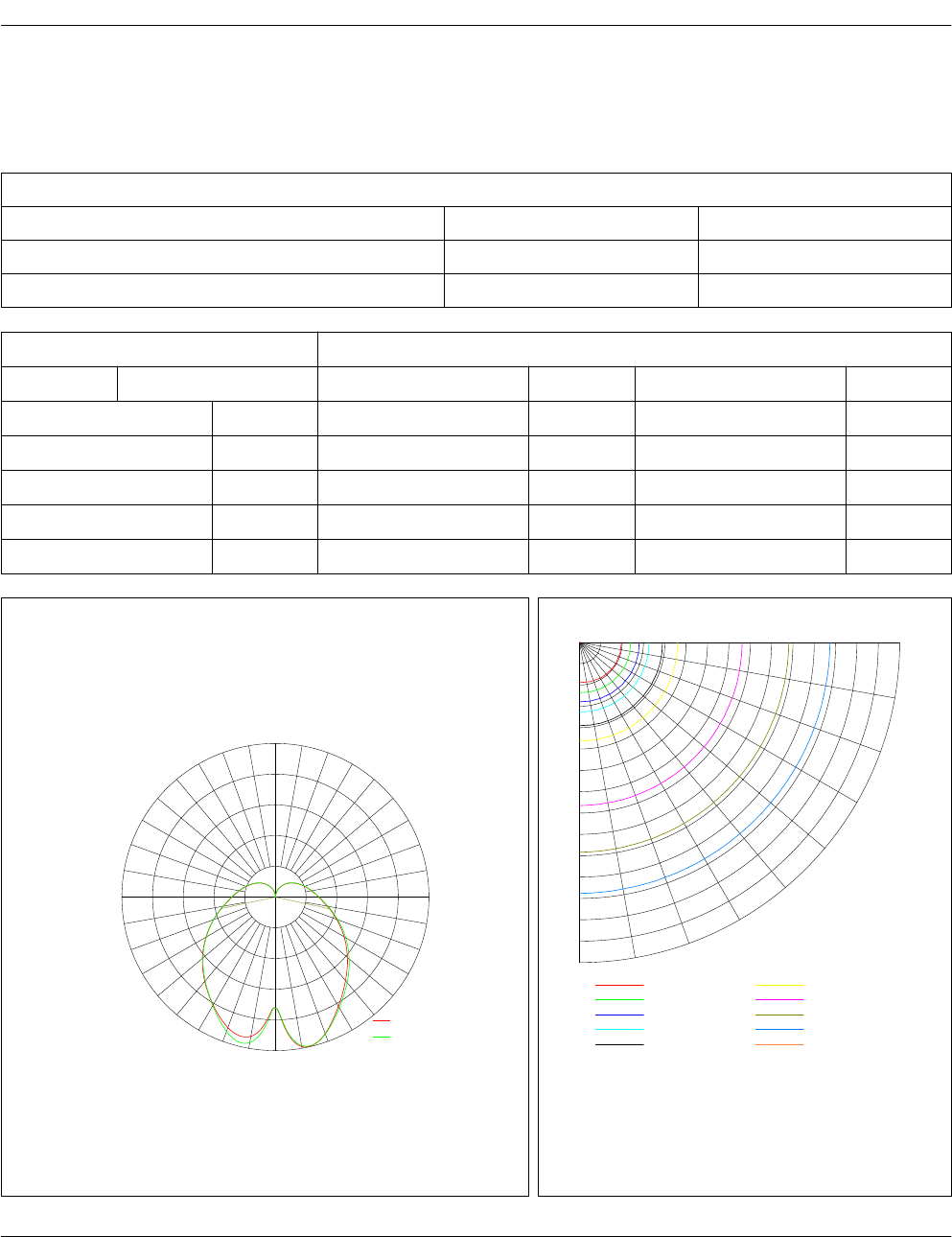

LUMINOUS INTENSITY DISTRIBUTION DIAGRAM
PLANAR ISOLUX DIAGRAM(UNIT:lx)
MH=1m
S(m)
0
1
2
3
90
80
70
60
50
40
30
20
10
0
C(DEG)
59.0
51.0
44.0
37.0
29.0
22.0
7.30
3.70
2.20
0.7300
DATA OF LAMP PHOTOMETRIC DATA Eff: 35.09 lm/W
MODEL
NOMINAL POWER(W)
RATED VOLTAGE(V)
NOMINAL FLUX(lm)
LAMPS INSIDE
TEST VOLTAGE(V)
Imax(cd)
LOR(%)
TOTAL FLUX(lm)
CIE CLASS
up(%)
down(%)


S/MH(C0/180)
S/MH(C90/270)
UP,DN(C0-180)
UP,DN(C180-360)
CIBSE SHR NOM
CIBSE SHR MAX


STL-06P-BL or PC-FD
10.5
120.0
364.394
1
120.0
81.46
100.0
364.39
SEMI-D.
23.3
76.7
1.56
1.58
11.6,38.2
11.7,38.5
1.25
1.35
C Range: 0 - 360DEG
C Interval: 22.5DEG
Range: 0 - 180DEG
Interval: 1.0DEG


Test Speed: HIGH Test System:EVERFINE GO-R5000_V2 SYSTEM V2.0.366
Temperature:25.6DEG Humidity:67.1%
Test Distance:2.457m [K=1.0000]Operators:David
Test Date:20 June 2018 Remarks:
