Indoor Fireplace User Manual

TC30.NGO3.C 100308

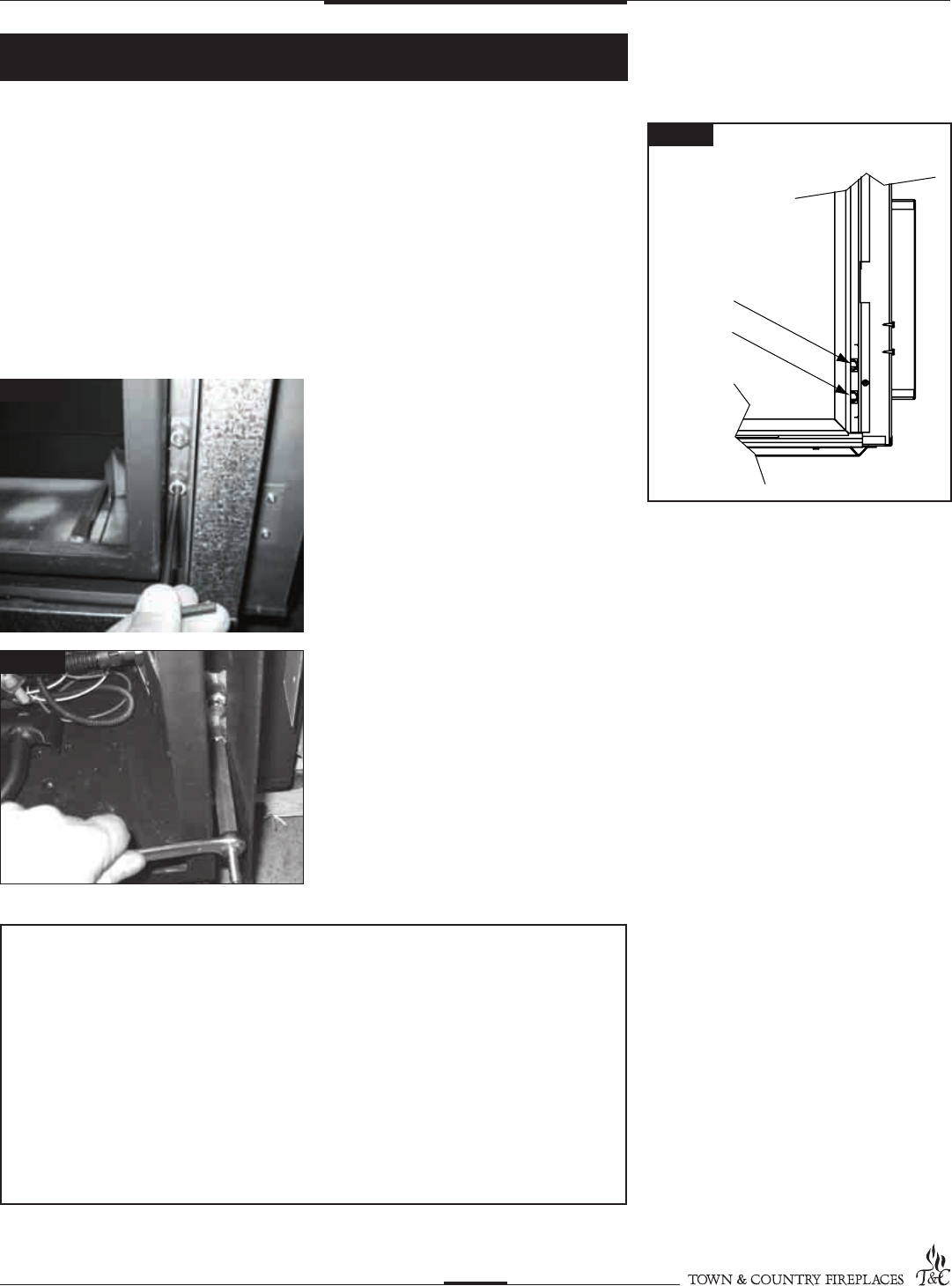

1. Remove the plug from the pressure test

port. The plug is located between the

right side lintel and  rebox side.

(Fig. #24)

2. Thread the extension test  tting into the

open test port. (Fig. #25)

3. Attach a pressure gauge onto the

 tting.

4. When testing is complete remove the

extension test  tting and replace the plug.

Thread sealant will be required to ensure

a gas tight connection.

Note: To test the gas pressure, turn off the gas supply before removing the plug from

the supply pressure test port or manifold pressure test port.

Verify gas pressures with the  replace lit and on the highest setting.

Correct gas pressure requirement:

Supply Pressure Natural Gas Propane

Min. Pressure 5.0" WC 12.5" WC

(For purpose of input adjustment)

Max. Pressure 13.9" WC 13.9" WC

Manifold Pressure

Maximum 3.8" WC 11" WC

Minimum 2.1" WC 5.5" WC

Fig #24

Fig #25

SUPPLY

PRESSURE

MANIFOLD

PRESSURE

Fig #25a

Gas Pressure Check
