TC30.NGO3.C 100308

4

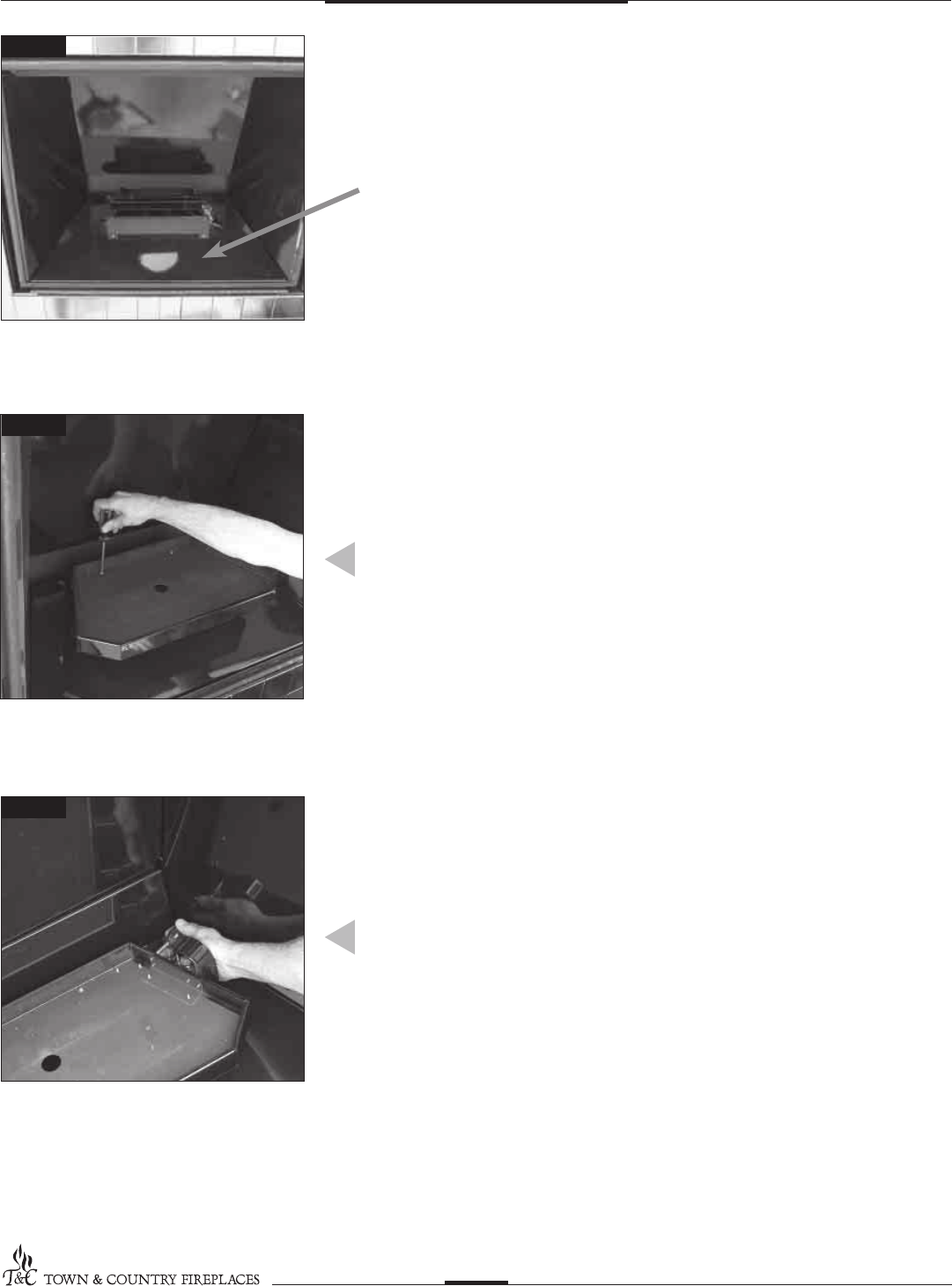

5. Install burner shield by tipping the shield

into the  rebox. Route pilot up through

the opening in the burner shield.

(Fig. #5)

6. Attach the burner tray to the burner shield

using two screws at the back of the tray.

(Fig. #6)

7. Attach pilot shield to burner tray with two

screws. (Fig. #7)

Fig #5

Fig #6

Fig #7

INSTALLING BURNER SHIELD

BURNER TRAY PLACEMENT

PILOT SHIELD ATTACHMENT
