User's Manual

2.5.5: The Soft Keypa
d
In applications that accept keypad input, the soft input panel (SIP) can be used to
enter data using the stylus. The SIP is digital, QWERTY-style keyboard.
To open the SIP, tap the keyboard icon to open the menu and select Hide Input
Panel to close the keyboard.
Use the stylus to select letters, numbers, or symbols from the Soft Input Panel for the
current application.
2.5.6: Initiating a Network Connection

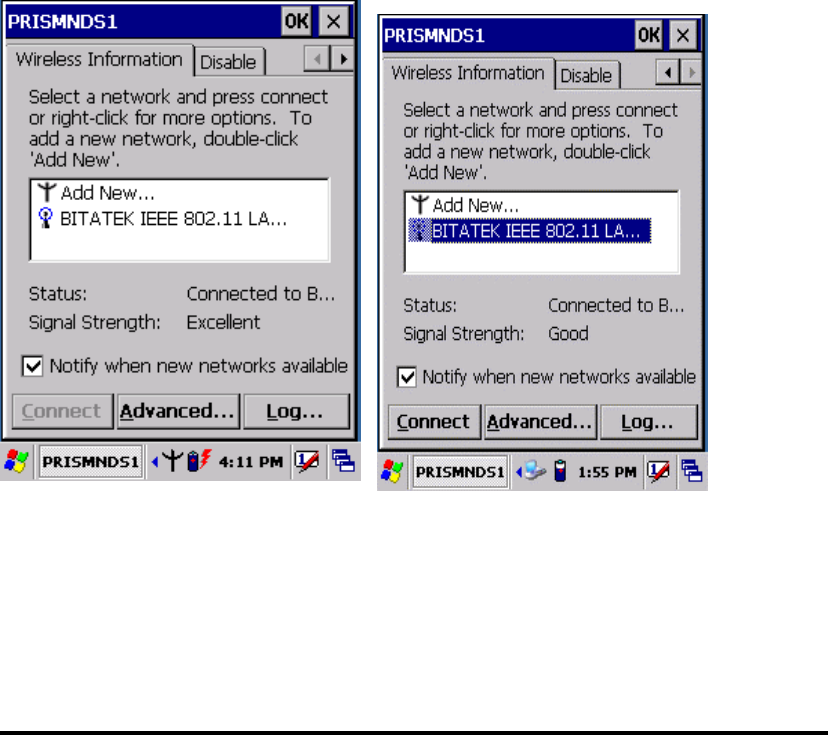

To tap the icon at Task bar, then a Wireless LAN screen “PRISMNDS1”(Figure
2-16-1), select page “Wireless Information”. There is a list of Wireless access points.
Select one by double-clicking the access point you want. Or double-click “Add New
“ to add a new access point.
To Click “Connect” icon to connect WLAN with Access point.( Figure 2-16-2)
To select page “ Disable” to disable WLAN to save power consumption. ( Figure
2-16-3 & Figure 2-16-4)
Figure 2-16-1 Figure 2-16-2
P2-24
