2.3.2 Charging the battery pack with Power Adapter
1. Plug in the DC-IN Converter to the PDA bottom connector
2. Connect the Power cord to the Power adapter
3. Plug in the connector of the power adapter with DC-IN Converter
4. Connect the power cord to a power source

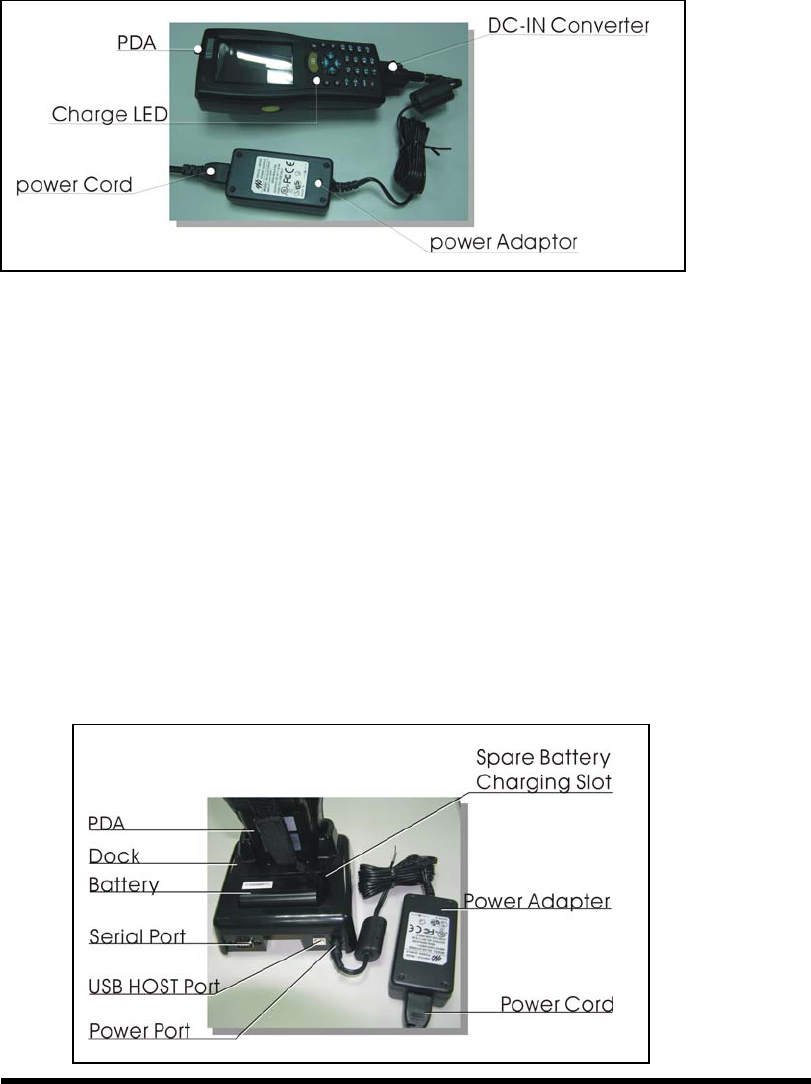

Figure 2-8 Charging with power adapter
◆ When charging the battery pack, the Power LED on the PDA turns on Red.
◆ After the battery pack is fully charged, the Power LED turns to green.
2.3.3 Charging the battery pack with Single Cradle
a) Leave the battery pack inside of the PDA
1. Connect the Power cord to the Power adapter
2. Connect the power cord to a power source
3. Plug in the connector of the power adapter with Single Cradle
4. Insert the PDA into the Single Cradle
Figure 2-9 Charging with Single Cradle
