User's Manual

2 von 4 DATA SHEET ICP-705 / ArtMotion 06-10-2009
Version 1.1
Antenna Characteristics:
Parameter Symbol min. typ. max. units comment
antenna pattern Tx (3dB)
horizontal 50 ° azimuth
vertical 33 ° elevation
squinting angle Tx
vertical 65 ° elevation
side lobe suppression Tx
horizontal 10 dB azimuth
vertical 8 dB elevation
antenna pattern Rx (3dB)
horizontal 85 ° azimuth (determined by simulation)
vertical 35 ° elevation (determined by simulation)
squinting angle Rx
vertical 65 ° elevation (determined by simulation)
side lobe suppression Rx
horizontal 8 dB azimuth (determined by simulation)
vertical 8 dB elevation (determined by simulation)

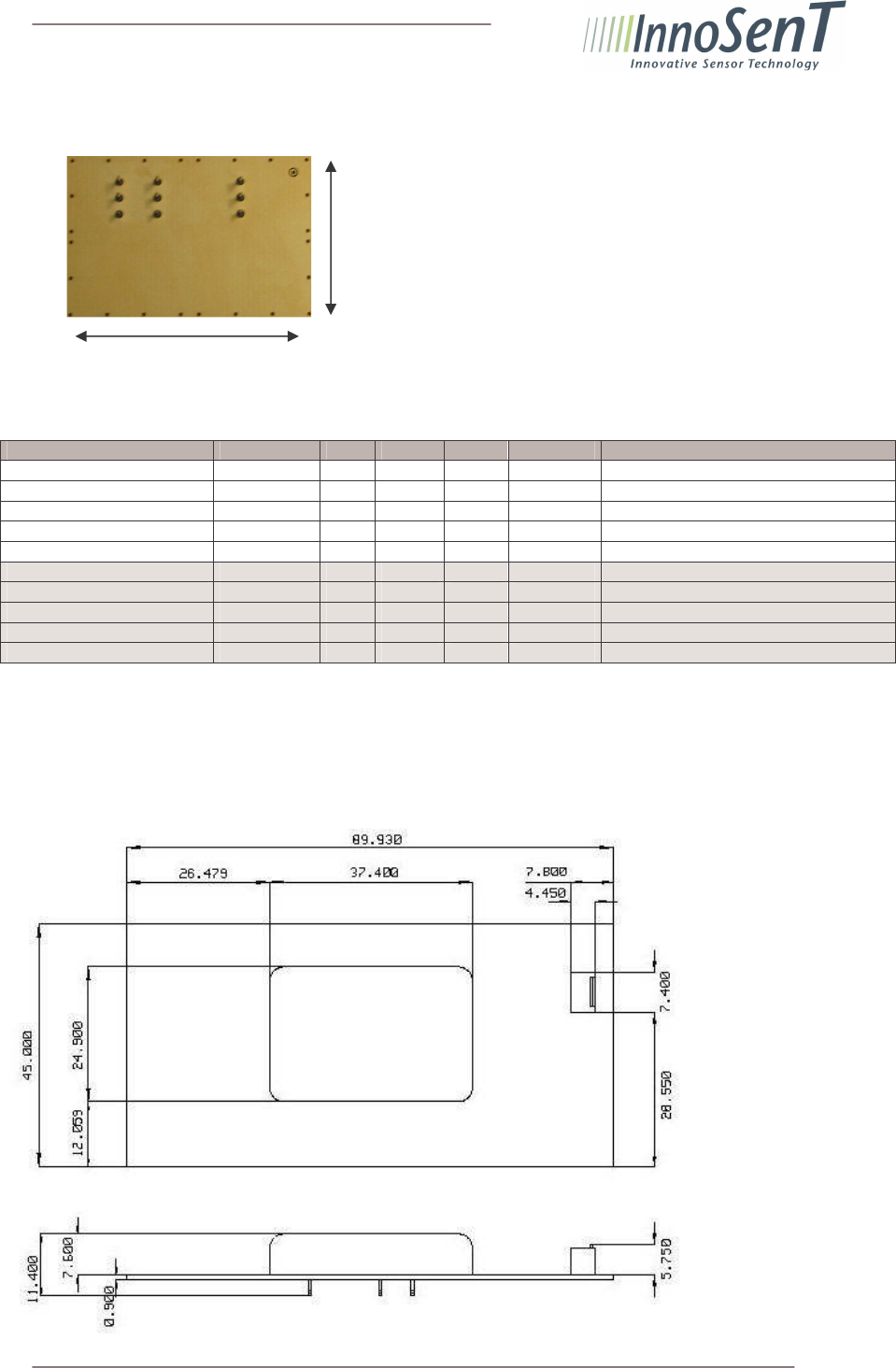

Mechanical Outlines:
all dimensions in Millimeter
Tx Rx
Azimuth
Elevation
