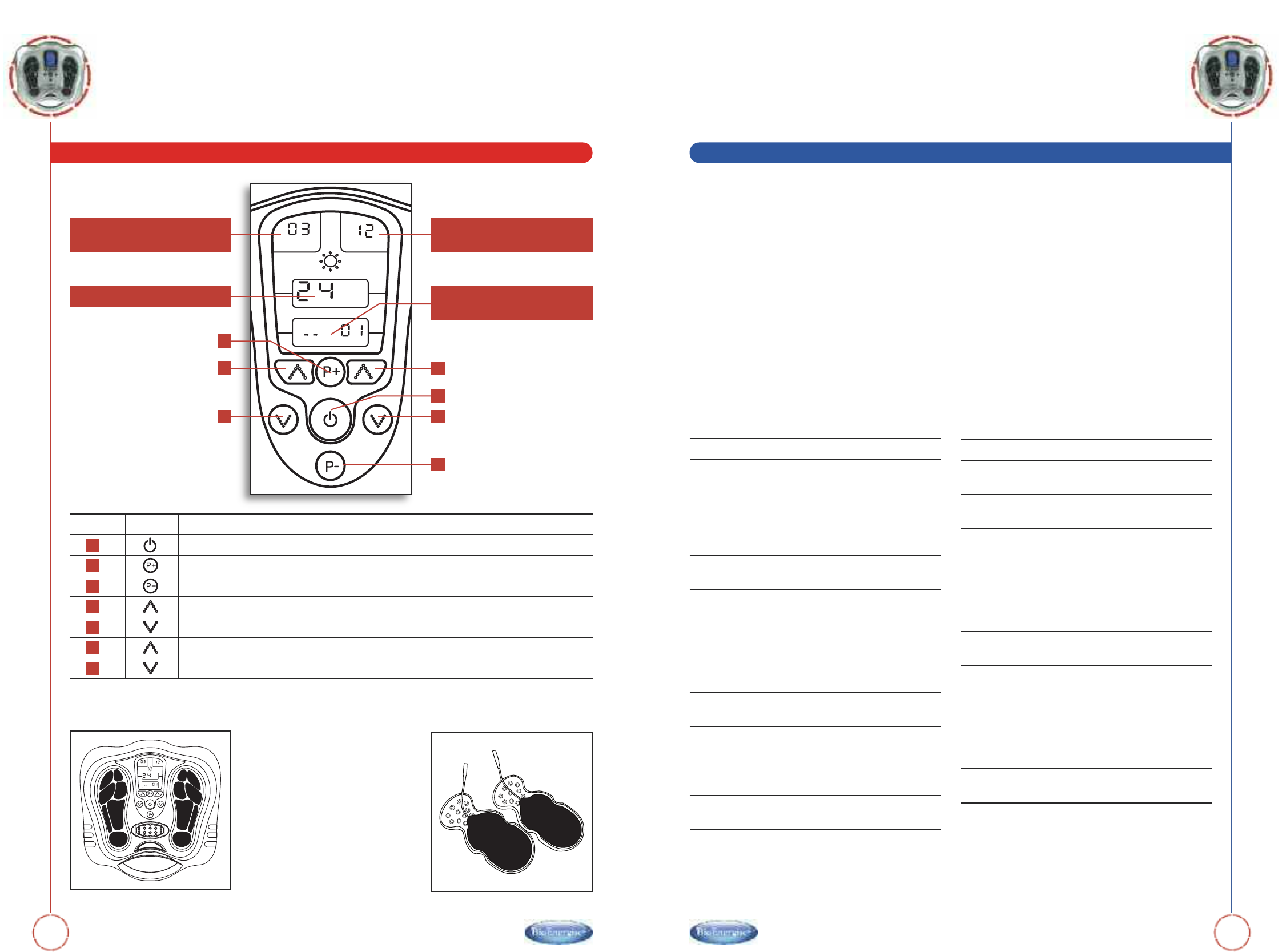

Instruction manual
To switch the unit on or off
Choose from one of the 10 pre-programmed massage programs ~ Upward
Choose from one of the 10 pre-programmed massage programs ~ Downward
Increase the output intensity of foot (BAND 1) FROM 1- 40 LEVEL
Decrease the output intensity of foot (BAND 1) FROM 1- 40 LEVEL
Increase the output intensity of body (BAND 2) FROM 1- 40 LEVEL
Decrease the output intensity of body (BAND 2) FROM 1- 40 LEVEL
B AND1
B AND2
PROGRAM
M i n
BAND1
BAND2
PROGRAM
M in
Electrode Area
The Outputs have no DC Component
Output Waveform
Control Panel
Foot Electro Therapy Massage
We will examine the operation in more detail later in your instructions but the principle is relatively easy to
understand. There are two separate controls/channels, one for the feet, being band 1 and one for the pads being
band 2. Place your feet on the foot plates, turn on ElectroFlex with the central on/off switch (hold down for 3
seconds to activate), choose one of the
10 different treatment programmes and start to increase the intensity to a
comfortable level. There are 40 different levels. When you start to feel the mild electro-therapy will depend on your
own nerve sensitivity. Certain individuals will feel nothing until the intensity is up at a high level, others will feel the
stimulation at relatively low levels. This is completely normal.
Body Toning
If you choose to tone muscle groups or target pain in other areas of your body the Elec
troFlex comes with four gel
pads. These can be used to tone arms, hips, thighs, abs or buttocks or target neck muscle or back pain.
BAND 1 – SOLE MASSAGER (during 1 kΩ load)
Pulse rate 6Hz with 1 second in left side , right
side off time 1 second then Pulse rate 6Hz with
1 second in right side , left side off time 1
second. A cycle repeating.
Pulse rate 12Hz- 80Hz with 12 seconds and off
time in 1 sec. A cycle repeating.
Pulse rate 7Hz with 30 seconds and off time in
1 sec. A cycle repeating.
Pulse rate 7Hz- 25Hz with 8 seconds and off
time in 1 sec. A cycle repeating.
Pulse rate 12Hz- 80Hz with 11 seconds and off
time in 1 sec. A cycle repeating.
Pulse rate 12Hz with 12 seconds and off time in
1 sec. A cycle repeating.
Pulse rate 11Hz- 80Hz with 15 seconds and off
time in 1 sec. A cycle repeating.
Pulse rate 12Hz with 10 seconds and off time in
1 sec. A cycle repeating.
Pulse rate 12Hz with 13 seconds and off time in
1 sec. A cycle repeating.
Pulse rate 12Hz- 80Hz with 10 seconds and off
time in 1 sec. A cycle repeating.
On the device (Figure 1) the black
colour area on the device which is
the electrode area for the sole.
On the gel pad (Figure 2), the black
colour area on the sticky part is the
electrode area for the body,
size is 5 cm x 9 cm.
BAND 2 – BODY MASSAGER (during 1 kΩ load)
Pulse rate 13Hz- 80Hz with 13 seconds and off
time in 1 sec. A cycle repeating.
Pulse rate 13Hz- 80Hz with 18 seconds and off
time in 1 sec. A cycle repeating.
Pulse rate 13Hz- 80Hz with 19 seconds and off
time in 1 sec. A cycle repeating.
Pulse rate 13Hz- 80Hz with 7 seconds and off
time in 1 sec. A cycle repeating.
Pulse rate 13Hz- 80Hz with 16 seconds and off
time in 1 sec. A cycle repeating.
Pulse rate 13Hz- 80Hz with 10 seconds and off
time in 1 sec. A cycle repeating.
Pulse rate 13Hz- 80Hz with 17.6 seconds and
off time in 1 sec. A cycle repeating.
Pulse rate 12Hz with 10 seconds and off time in
1 sec. A cycle repeating.
Pulse rate 12Hz with 16 seconds and off time in
1 sec. A cycle repeating.
Pulse rate 12Hz- 80Hz with 11 seconds and off
time in 1 sec. A cycle repeating.
