MOUNTING INSTRUCTION
created: 04/25/2016 E4-WM5-Y528A00_0 page 3 of 3 latest revision:
E. Install the complete shock/reservoir assemblies on the vehicle. All original fasteners can
be reused.
F. If a chassis hoist has been used, be sure to lower the vehicle such that its full weight is
on the suspension prior to fully tightening the fasteners.
G. Tighten all fasteners to the vehicle manufacturer’s service manual torque specifications.
H. Carefully check for any possible interference between the reservoirs and any other
components on the vehicle, then make any necessary adjustments to the reservoir
positions. The reservoir mounting locations depicted herein are appropriate for most
vehicles for which this product is intended, however, some aftermarket components and
or lift kit combinations may create interference problems. It is the responsibility of the
installer to determine if the reservoir is mounted appropriately and if there is any potential
for interference.
I. If no potential interference is found, tighten the hose clamps until the reservoirs cannot be
manually moved independent of the shock body. This completes the installation.

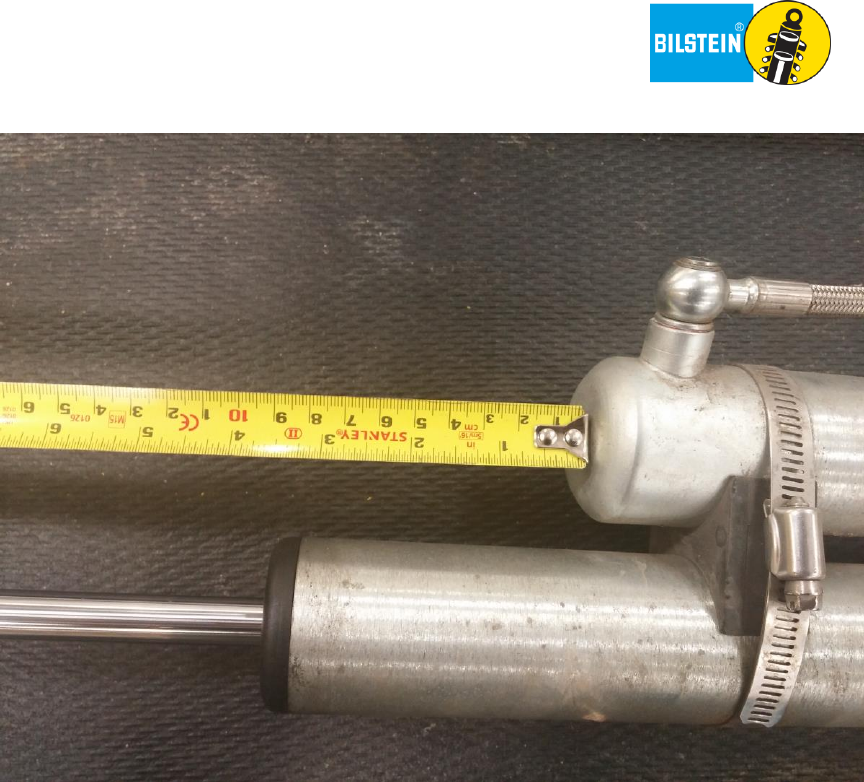

Figure 2. Reservoir placement in
relation to end of main tube. Reservoir
end should be about 3.5”-4” from end
of main tube.
