Top Mount, Horizon Series Freezers
Models: HF, HFP, HFS, HFPS
(-S) Solid Door Models, (-HS) Half-Solid Door Models
DOOR TYPE HF STANDARD
S/S Front,
Gray Painted Sides,
Aluminum Interior
HFP
S/S Front,
S/S Sides,
Aluminum Interior
HFS
S/S Front,
Gray Painted Sides,
S/S Interior
HFPS
Complete Stainless
Exterior and Interior
DOORS &
SHELVES
SOLID (-S)
HF1-1S HFP1-1S HFS1-1S HFPS1-1S 1 Door & 3 Shelves
HF1W-1S HFP1W-1S HFS1W-1S HFPS1W-1S 1 Door & 3 Shelves
HF2-1S HFP2-1S HFS2-1S HFPS2-1S 2 Doors & 6 Shelves
HF3-5S HFP3-5S HFS3-5S HFPS3-5S 3 Doors & 9 Shelves
HALF-SOLID (-HS)
HF1-1HS HFP1-1HS HFS1-1HS HFPS1-1HS 2 Doors & 3 Shelves
HF2-1HS HFP2-1HS HFS2-1HS HFPS2-1HS 4 Doors & 6 Shelves
HF3-5HS HFP3-5HS HFS3-5HS HFPS3-5HS 6 Doors & 9 Shelves

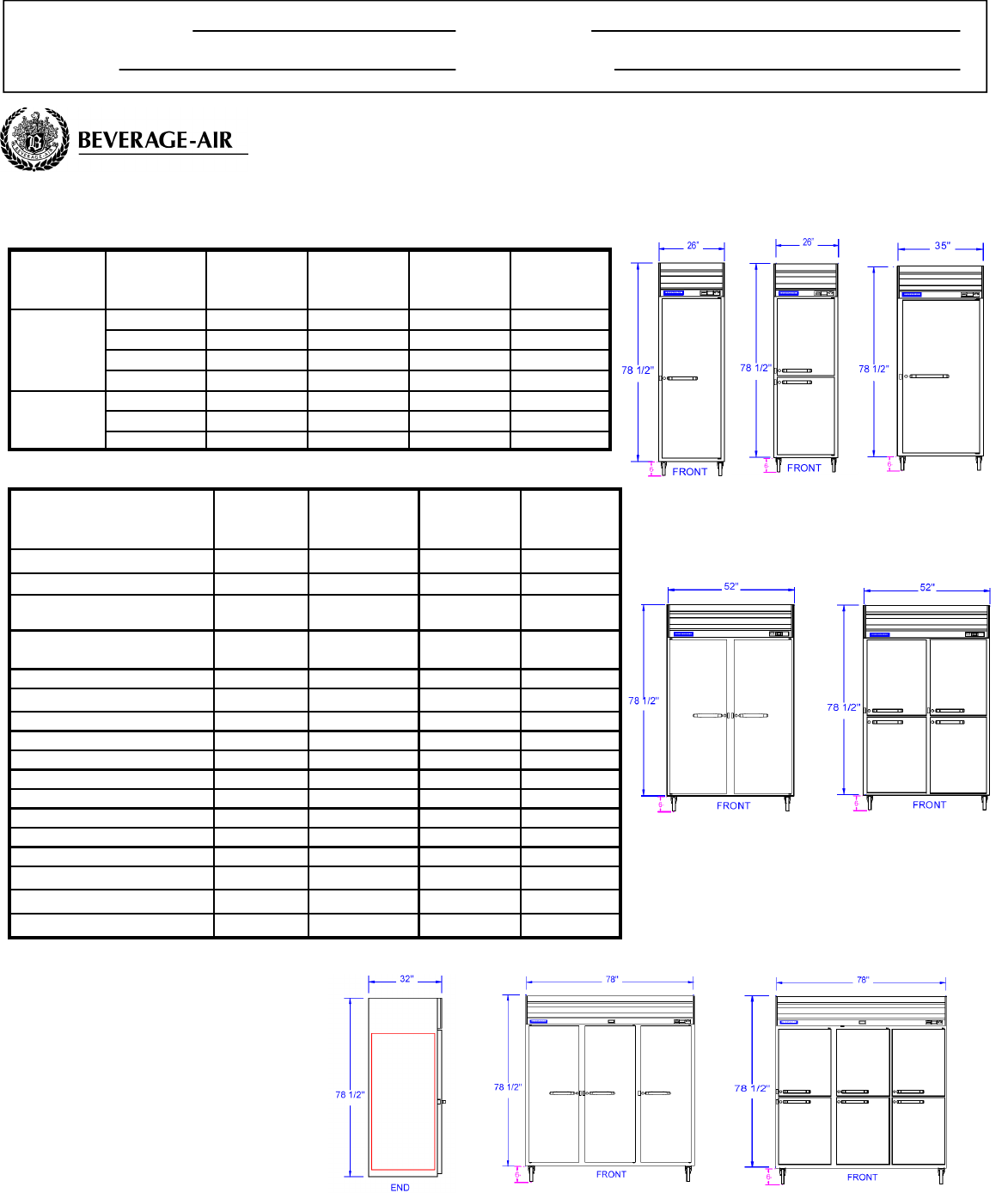

PLAN VIEWS
HF2/HFP2/
HFS2/HFPS2-1S
HF2/HFP2/
HFS2/HFPS2-1HS
HF3/HFP3/
HFS3/HFPS3-5S
HF3/HFP3/
HFS3/HFPS3-5HS
MODEL HF1/HFP1/
HFS1/HFPS1
1 Section
Solid/Half Solid
HF1W/HFP1W/
HFS1W/HFPS1W-1S
1 Section
Solid
HF2/HFP2/
HFS2/HFPS2
2 Section
Solid/Half Solid
HF3/HFP3/
HFS3/HFPS3
3 Section
Solid/Half Solid
EXTERNAL DIMENSIONAL DATA
Length Overall (inches) / (mm) 26” / 660 35” / 889 52” / 1321 78” / 1981
Depth Overall (inches) / (mm)
Add 1 3/4” for handle
32” / 813 32” / 813 32” / 813 32” / 813
Height Overall— (inches) / (mm)*
Add 6” for legs or casters
78 1/2” / 1994 78 1/2” / 1994 78 1/2” / 1994 78 1/2” / 1994
Depth with Door Open 90
o
54” 54” 54” 54”
INTERNAL DIMENSIONAL DATA
NET Capacity (cubic ft.) / (Liters) 24 / 680 34 / 963 49 / 1388 74 / 2096
Internal Length Overall (inches) / (mm) 22” / 559 31” / 787 48” / 1219 73 1/2” / 1867
Internal Depth Overall (inches) / (mm) 28” / 711 28” / 711 28” / 711 28” / 711
Height Overall— (inches) / (mm) 60” / 1524 60” / 1524 60” / 1524 60” / 1524
ELECTRICAL DATA
Full Load Amperes 115/60/1 7.1 7.8 12.0 *208-230 / 8.4A
REFRIGERATION DATA
Horsepower 1/2 1/2 3/4 1
WEIGHT DATA
Gross Weight (Crated lbs) 340 406 532/550 873
Gross Weight (Crated kg) 154 184 241/250 396
COMMON FEATURES
COMMON END
HF1/HFP1/
HFS1/HFPS1-1HS
HF1W/HFP1W/
HFS1W/HFPS1W-1S
HF1/HFP1/
HFS1/HFPS1-1S
For total depth add 1 3/4” for handle. For total height add 3” (casters only) or 6” (casters/legs.)
*Note: Some refrigeration components may protrude beyond cabinet height by up to 1 1/2” - in some models.
*Note: Freezers powered by 115/208-230 volts are designed for
field wiring (requires 4-wire electrical circuit, hard-wired).
