41

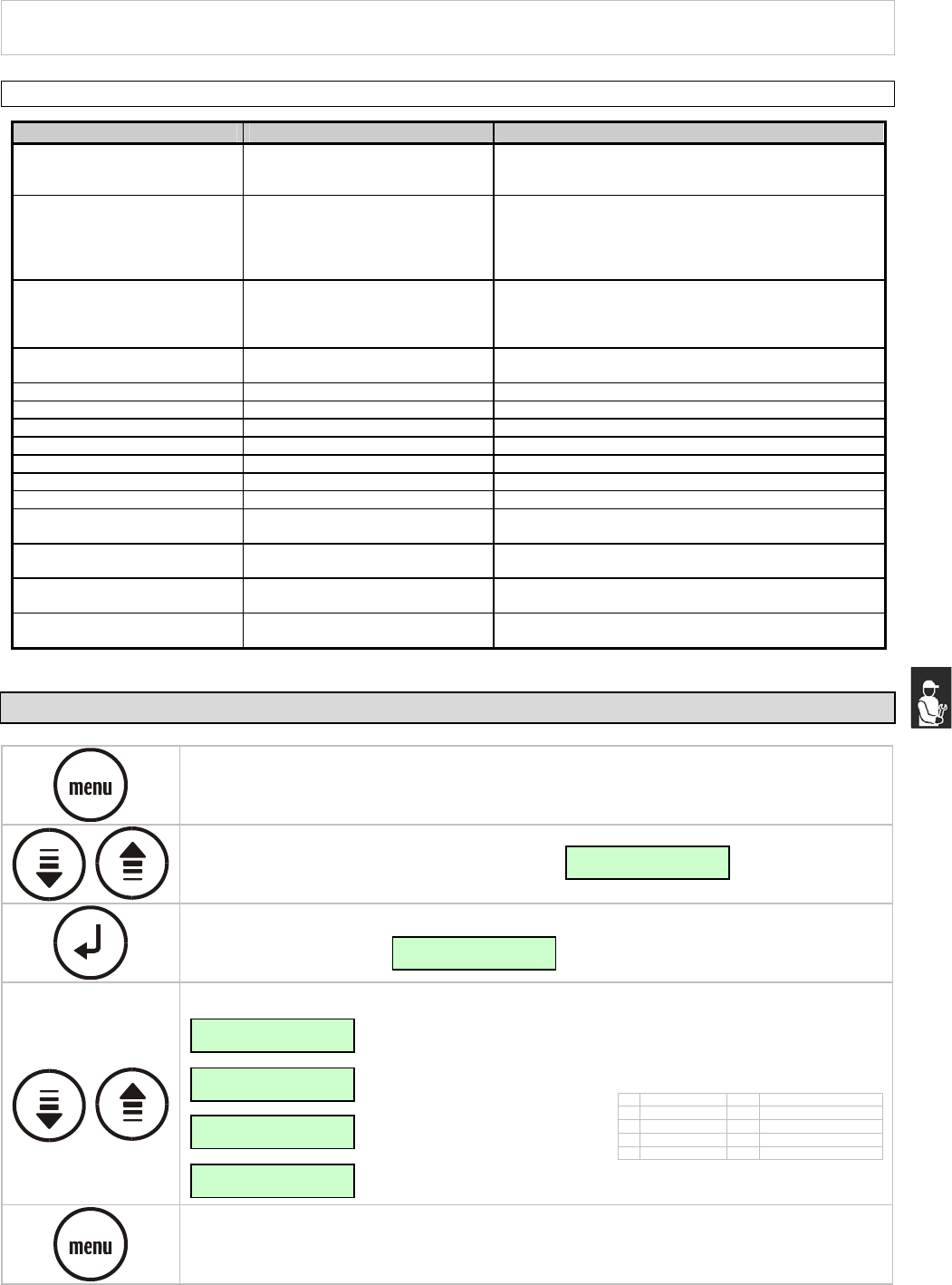

TAB.5
DISPLAYING INPUTS/OUTPUTS STATE
Press the menu key to select the desired menu
Use the keys up and down to display
Press enter to gain access to the mode for displaying inputs and outputs
The display shows
Use the keys up and down to scroll the data to display
C Compressor R Door resistance
D Defrost A Alarm
FE Evaporator fan DI1 Inputs state micro
FC Condenser fan DI2 Inputs state thermostat
L Sterilisation FAN Evaporator fan speed
Press menu several times to exit
FAULT CAUSE REMEDY
No voltage on
Anomalous stop
No power supply
Blown fuse
Loosened connections
Restore power supply
Replace fuses
Check connection fitting
Compressor failure High and Low-pressure pressure-
switch on
Clicker on
Contactor failure
Compressor thermal relay on
Ask for skilled assistance
Ask for skilled assistance
Ask for skilled assistance
Ask for skilled assistance
The compressor is working but
the cabinet is not cooling
Frosted evaporator
No coolant inside the refrigerating
system
Delivery solenoid valve failure
Open the door and carry out defrost cycle
Ask for skilled assistance
Ask for skilled assistance
Evaporator fans are not working Fan failure or short-circuit
Door micro failure
Ask for skilled assistance
Ask for skilled assistance
The cycle cannot start Wrong cycle programming Check time and temperature parameters
AL High Press Pressostat intervention Qualified technician required
AL Room Probe Room Probe interrupted Qualified technician required
AL Evap Probe Evap Probe interrupted Qualified technician required
AL Cond Probe Cond Probe interrupted Qualified technician required
AL Needle Probe Needle Probe interrupted Qualified technician required
AL Insert Needle Needle Probe not inserted Check the probe inserting cone
High T Room Room Temp above set value If the temperature is not within the specified range, apply
to a qualified technician
Low T Room Room Temp below set value If the temperature is not within the specified range, apply
to a qualified technician
AL BlackOut No power supply When power is restored, check the max. temperature
reached inside the room
AL Door Open QC room door open
Door micro faulty
Close the door
Qualified technician required
Menu 10
I
n
p
uts
/
Out
p
uts
R
oom 21°F
Needle 59°F
Room 21°F
Needle 59°F
Room and Needle temperature values
DI1 DI2 FAN
0 1 80
C D FE FC L R A
1 0 0 1 1 0 0
Evapor. 14°F
Conden. 70°F
Digital inputs state and evaporator
fan s
p
eed
Outputs state
1 = relay activated
0 = rela
y
de-activated
Evaporator and Condenser temperature values
