Installation instructions

6
2. MEASURE INSTALLATION

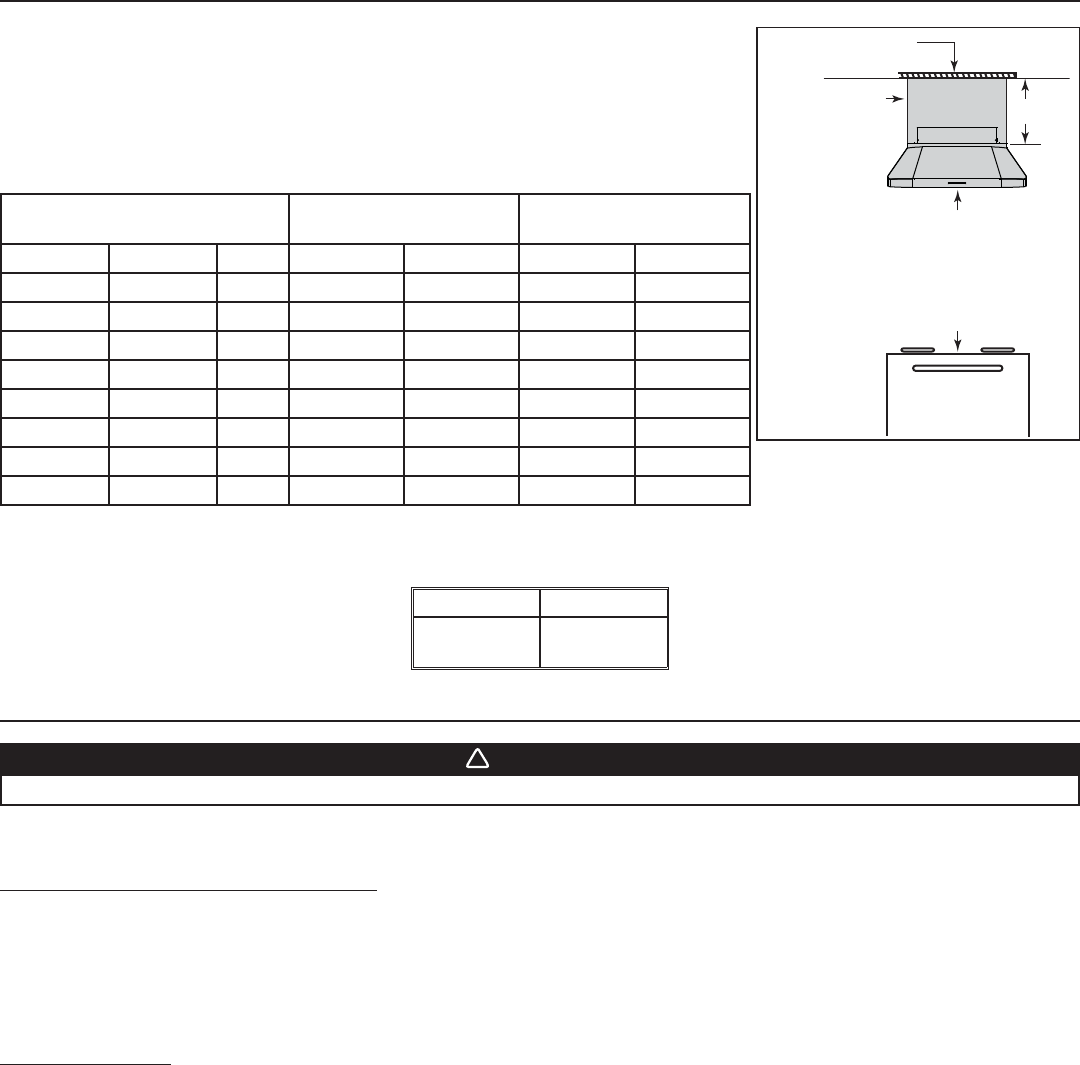

Dimensions for the most common installation are shown at right.
The minimum hood distance above cooktop must not be less than 30’’. A maximum of 36”
above cooktop is highly recommended for best capture of cooking impurities.
Distances over 36” are at the installer and users discretion.
Since framework must be flush to ceiling, 4 decorative flue covers have been created to fit both
hood widths and different ceiling heights. Refer to table below to choose the model that fits your
needs.
DECORATIVE FLUE COVER
8’ CEILING
DISTANCE
FROM COOKTOP
9’ CEILING
DISTANCE
FROM COOKTOP
MODEL A (HEIGHT)WIDTH 30” 36” 30” 36”
AEIP422 12” 42” X
AEIP542 12” 54” X
AEIP428 18” 42” X
AEIP548 18” 54” X
AEIP424 24” 42” X
AEIP544 24” 54” X
AEIP420 30” 42” X
AEIP540 30” 54” X
NOTE: For ceilings over 9’, decorative flues are not available.
If a drywall box will be built instead of installing decorative flue cover, use drywall trim to hide hood and drywall junction. Refer to table
below to find the appropriate model for your hood width.
3. PREPARE THE INSTALLATION
NOTE: Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the manufacturer.
Remove the installation kit from inside the hood.
Make sure that the following items are included:
- Installation manual
- Accessories including:
• Hybrid baffle filters with handles (3 for 42” width hood, 5 for 54” width hood)
• Shielded halogen bulbs (GU10 type base, 120 V, 50 W) (6 for 42” width hood, 8 for 54” width hood)
• Bag of parts including:
(10) steel wood screws no. 10 x 1.5’’, (10) steel washer no. 10, (6) screws no. 8 x 3/8’’ (additional screws provided)
Parts sold separately:
- Interior blower model iQ6, P3 or P6 (includes rough-in plate and 8” round adapter and damper).
- Interior blower model iQ12 or P12 (includes rough-in plate and 10” round vertical in-line damper, model 421).
- In-line blower assembly model ILB3, ILB6, ILB9 or ILB11 (all include transition(s) and rough-in plate)
- Exterior blower assembly model EB6, EB9, EB12 or EB15 (all include rough-in plate).
- Duct, elbows, dampers, wall and roof caps. Refer to pages 3 and 4 for a complete list of venting options and model numbers.
- Optional decorative flue cover AEIP Series, 12’’, 18”, 24” or 30” height and 42” or 54” width.
- Optional dry wall trim ATDIP Series, 42” or 54” width.
LINKLOGIC® ENABLED HOOD
This hood includes the LinkLogic system which allows communication over ordinary household electrical wiring to other LinkLogic devices
including the Broan Smart Sense Fan system. If you intend to use this hood with another LinkLogic device, follow the instructions found in
Section 21 along with the instructions that come with the LinkLogic device you plan to use.
WARNING
!
When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.
HH0084A
A
Framework
flush to ceiling
Standard 36”
(914 mm)
high cooktop
Minimum distance between
the hood and cooktop:
30’’ (762 mm)
Recommended maximum
distance between the hood
and cooktop: 36’’ (914 mm)
Decorative flue
cover or drywall
with trim
MINIMUM AND MAXIMUM DISTANCE
OVER COOKTOP
MODEL WIDTH
ATDIP42
ATDIP54
42”
54”
