Installation instructions

20

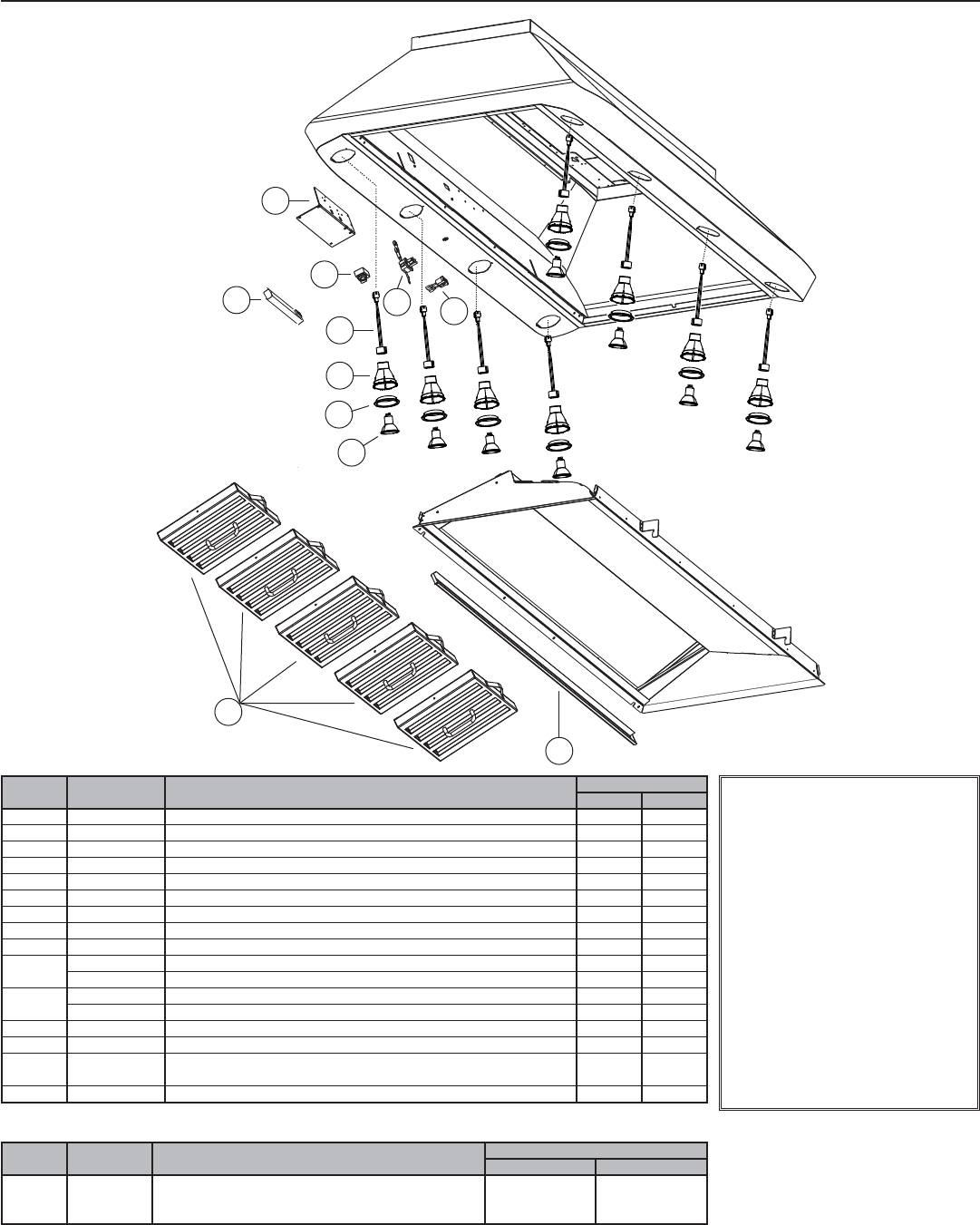

27. SERVICE PARTS
IP29M Series
HL0216
11
10
9
8
5
4
3
1
2
6
7
KEY NO.PART NO.DESCRIPTION
QTY. (HOOD WIDTH)
42” 54”
1 SV08069 CONTROL PROCESSOR UNIT 11
2 SV08073 PARTICULATES SENSOR 11
3 SV13924 MALE CONNECTOR 11
4 SV13923 FEMALE CONNECTOR 11
5 SV08074 C
ONTROL INTERFACE 11
6 SV05917 S
OCKET GU10 6 8
7 SV09435 SOCKET HOLDER GU10 6 8
8 SV09434 LIGHT TRIM STAINLESS STEEL 68
9 SV05921 S
HIELDED HALOGEN BULBS (50W, 120 V, PAR16, GU10) 6 8
10
SV61639 H
YBRID BAFFLE FILTER WITH MICROMESH AND HANDLE 8.84” X 8.61” X 1” 1 5
SV61640 HYBRID BAFFLE FILTER WITH MICROMESH AND HANDLE 11.84” X 8.61” X 1” 2 -
11
SV61934 GREASE DRIP RAIL FOR 42” HOOD 1-
SV61935 G
REASE DRIP RAIL FOR 54” HOOD -1
* SV03435
H
EAT SENTRY™ THERMISTOR
11
* SV08072 INSTALLATION GUIDE 11
* SV08068
PARTS BAG: STEEL WOOD SCREW NO. 10 X 1.5” (10),
SCREWS NO. 8 X 3/8” (6), STEEL WASHERS NO. 10 (10)
11
* SV05869 B
EST LOGO 11
* N
OT SHOWN.
KEY NO.PART NO.DESCRIPTION
QUANTITY
DECORATIVE FLUE DRYWALL TRIM
* SV06927
ACCESSORY PARTS BAG: STEEL HEXAGONAL LOCK-NUT (5),
SCREWS NO. 8 X 3/8” (14), STEEL WASHERS NO. 10 (10),
STEEL WOOD SCREW NO. 10 X 1.5” (10)
11
* N
OT SHOWN.
REPLACEMENT PARTS AND REPAIRS
In order to ensure your unit remains in
good working condition, you must use
Broan-NuTone genuine replacement
parts only. Broan-NuTone genuine
replacement parts are specially
designed for each unit and are
manufactured to comply with all the
applicable certification standards and
maintain a high standard of safety.
Any third party replacement part
used may cause serious damage and
drastically reduce the performance
level of your unit, which will result
in premature failing. Broan-NuTone
recommends to contact a certified
service depot for all replacement
parts and repairs.
