Side by Side
30” Convection Single Oven +
30” Specialty Oven +
30” Warming Drawer
Flush installation

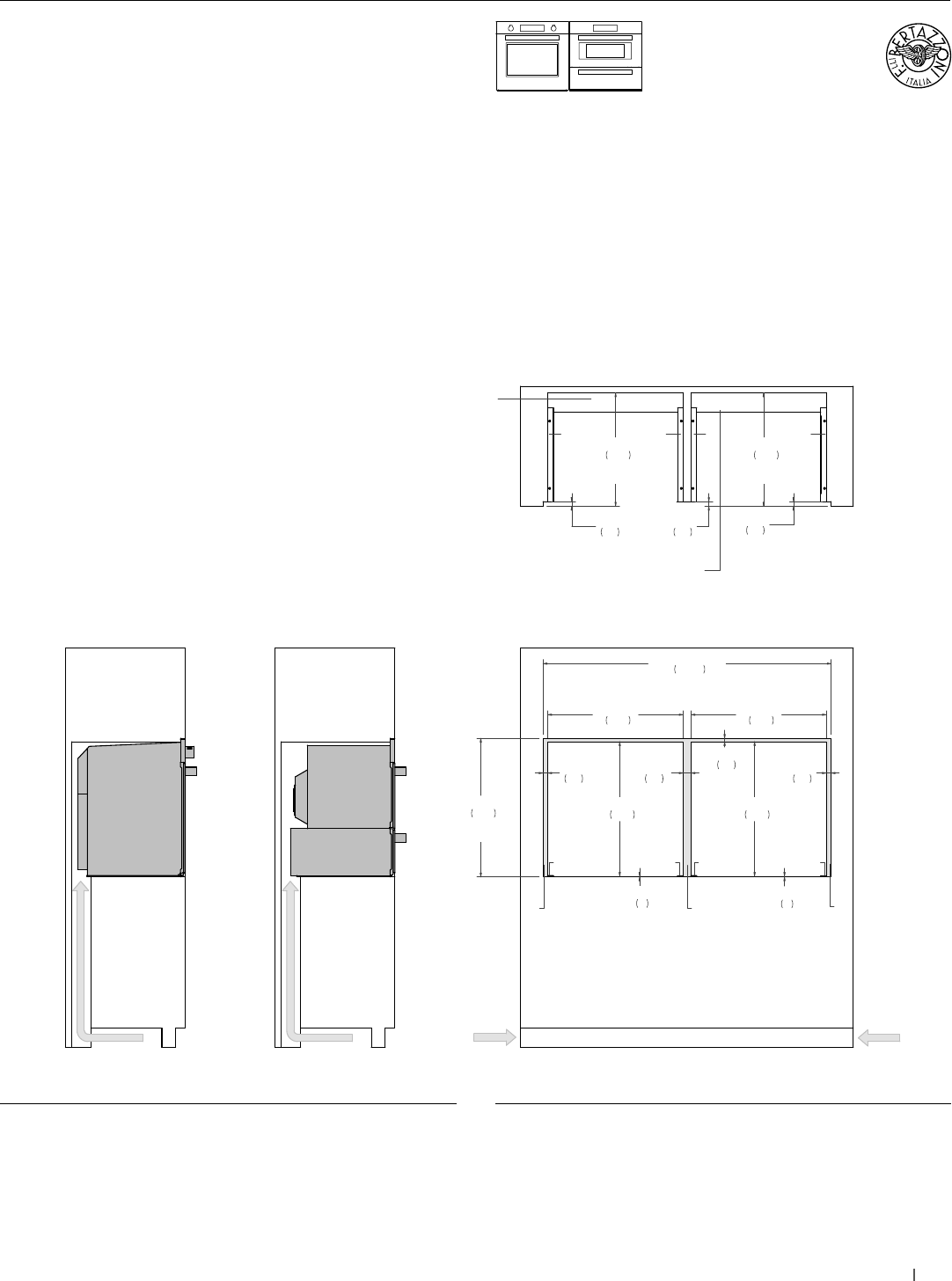

FRONT VIEW
TOP VIEW
LEFT CABINET VIEW RIGHT CABINET VIEW
(a) Spacers – Included with appliance
(b) Visible Area – Match finish to outside cabinet panels
AIR INTAKE
60 5/8"
1540
FLUSH INSET
WIDTH
29 1/8"
741
FLUSH INSET
HEIGHT
1"
25
23 7/8"
606
FLUSH INSET
DEPTH
a
b
b
a
a
a
AIR INTAKE
28 3/8"
720
1 5/8"
42
3/4"
18
1/8"
3
b
a
a
1"
25
28 1/2"
724
28 1/2"
724
28 3/8"
720
1/8"
3
23 7/8"
606
FLUSH INSET
DEPTH
1"
25
1"
25
a
a
4" x 28 1/2"
(102 x 724)
AIR INTAKE
AIR INTAKE
4" x 15"
(102 x 380)
AIR INTAKE
4" x 15"
(102 x 380)
4" x 28 1/2"
(102 x 724)
AIR INTAKE
1"
25
MULTIPLE INSTALLATIONS
(a) Spacers - Included with appliance
(b) Visible Area - Match finish to outside cabinet panels
PROF30SOEX
PROF30CSEX
MAST30SOEX
MAST30CSEX
PROF30FSEXT
PROF30FSEXV
MAST30FSEXT
MAST30FSEXV
PROF30WDEX
MAST30WDEX
For electrical and gas supply please see single installation
requirements. Placement within the opening may require
additional cabinet depth.
