Introduction 9

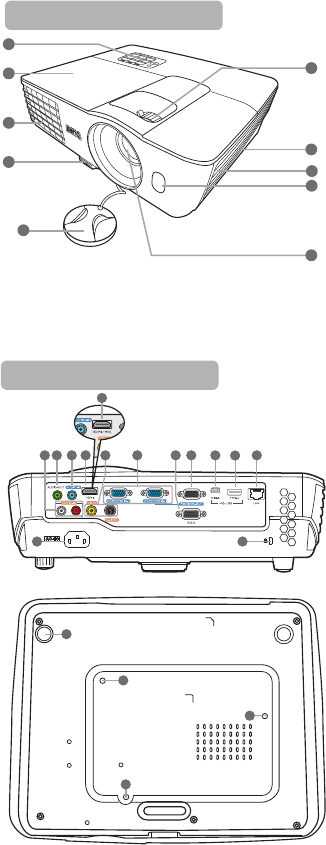

Projector exterior view
1. External control panel
(See "Controls and functions" on page 10
for details.)
2. Lamp cover
3. Vent (heated air exhaust)
4. Quick-release button
5. Lens cap
6. Focus and Zoom ring
7. Vent (cool air intake)
8. Speaker grill
9. Front IR remote sensor
10. Projection lens
11. Audio (L/R) input jacks
12. Audio output jack
13. Audio input jack
14. HDMI-input port
15. HDMI/MHL-input port
16. S-Video input jack
Video input jack
17. RGB (PC)/Component Video (YPbPr/
YCbCr) signal input jack
18. RS232 control port
19. RGB signal output jack
20. USB Mini-B port
21. USB Type-A port
22. RJ45 LAN input jack
23. AC power jack
24. Kensington anti-theft lock slot
25. Rear adjuster foot
26. Ceiling mount holes
5
2
1
3
4
8
6
7
10
9
Front/upper side
MX666+
MW665+
16
1211 13 14
17
19 22
15
18 20
24
25
26
26
26
23
21
Rear/lower side
