Operation Manual
Table Of Contents
- Table of contents
- Important safety instructions
- Introduction
- Positioning your projector
- Connection
- Connecting the power
- Connecting a computer
- Connecting Video source devices
- Connecting an HDMI source device
- Connecting a Component Video source device
- Connecting a Composite Video source device
- Connecting an iPhone/iPod device
- Connecting an external speaker
- Connecting a wireless dongle
- Connecting to an external memory device
- Playing sound through the projector
- Operation
- Starting up the projector
- Switching input signal
- Adjusting the projected image
- Hiding the image
- Securing the projector
- Selecting the aspect ratio
- Optimizing the image
- Operating in a high altitude environment
- Adjusting the sound
- Firmware upgrade
- Personalizing the projector menu display
- Playing files with iPhone/iPod
- Using iPhone/iPod pop-up menus
- Displaying images with PC and Video source devices
- Using PC/ Video pop-up menus
- Displaying files with internal memory, USB Drive and SD card
- Using USB Streaming
- Using Wireless Streaming
- Settings menu
- Shutting down the projector
- Maintenance
- Troubleshooting
- Specifications
- Warranty and Copyright information
Connection
26

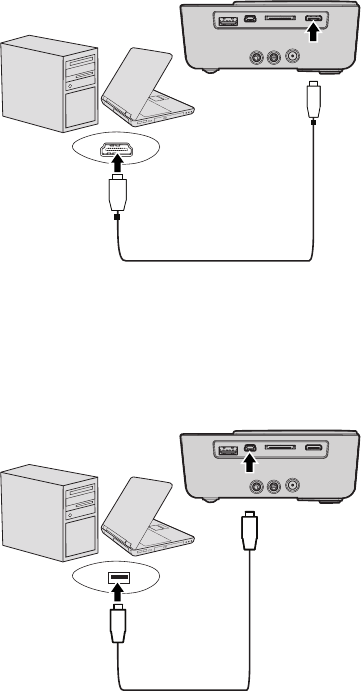

• Using an HDMI cable
1. Take an HDMI cable and connect one end to the HDMI output jack of the computer.
2. Connect the other end of the HDMI cable to the mini HDMI jack on the projector.
• Using a USB cable
1. Take a USB cable and connect the type A end to the USB output jack of the
computer.
2. Connect the mini-B type end of the USB cable to the USB-DISPLAY jack on the
projector. When you connect the projector to a computer, you can display
computer’s image or transfer files from your computer to the internal memory of the
projector.
3. If you select USB Display, follow the on-screen message to install the USB driver in
your computer first.
4. If you select USB File Transfer, go to My Computer or Windows Explorer to access
the projector's files. The projector appears as a Removable Disk. Transfer the files
from your computer to the projector by dragging and dropping or copying and
pasting.
HDMI
HDMI
USB
USB
