Positioning your projector
19
Projection dimensions
Refer to "Dimensions" on page 96 for the center of lens dimensions of this projector
before calculating the appropriate position.
All measurements are approximate and may vary from the actual sizes.BenQ recommends that
if you intend to permanently install the projector, you should physically test the projection size
and distance using the actual projector in situ before you permanently install it, so as to make
allowance for this projector's optical characteristics. This will help you determine the exact
mounting position so that it best suits your installation location.
1280:800 screen diagonal
Recommended projection distance from screen
in mm
Feet Inches mm Average
2.00 24 610 621
3.33 40 1016 1034
4.67 56 1422 1448
6.00 72 1829 1862
6.66 80 2032 2069

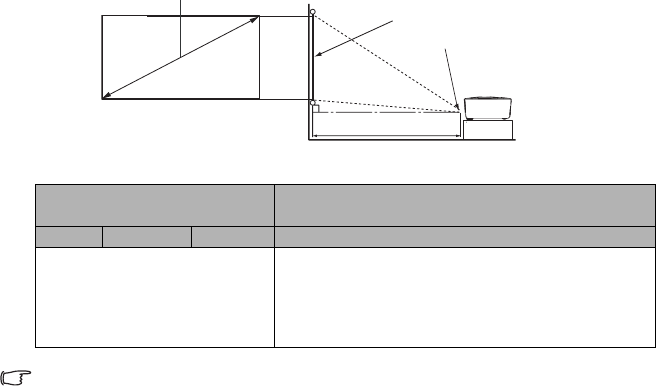

1280:800 screen diagonal
Projection distance
Center of lens
Screen
