Introduction
10

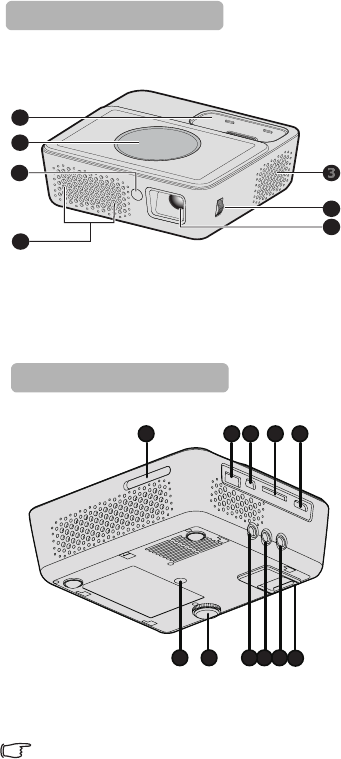

Projector exterior view
Do not block the ventilation openings. Blocking the ventilation openings can cause your
projector to overheat and may cause it to fail.
1. iPhone/iPod docking station
2. External control panel
(See "Projector" on page 11 for
details.)
3. Vent (heated air exhaust)
4. Front IR remote sensor
5. Internal Speakers
6. Focus ring
7. Projection lens
8. SD card slot
9. Type A USB jack (for USB drive/
Wi-Fi dongle)
10. Mini-B USB jack
11. Multi-input socket
RGB (PC)/Component video
(YPbPr/ YCbCr) /Composite video/
Audio input (L/R)
12. Mini HDMI input jack
13. Tripod socket
14. Adjuster foot
15. Audio input jack
16. Audio output jack (for iPod dock /
internal memory / SD card / USB
Drive / multi-input cable RCA audio
in)
17. AC adapter inlet
18. Battery latch
1
2
4 3
6
6
5
7
Front/upper side
9 118 10
12
12
13
13
14
14
15
15
16
16
17
17
18
18
Rear/lower side
