If the detection object cannot reach the Minimum side length of effective detection, as shown in Figure 3,
the output (Dist) from TFmini will be a value between the actual distance values of the two objects. For a
high accuracy requirements in practice, the above situation should be noticed to avoid the measurement
error .

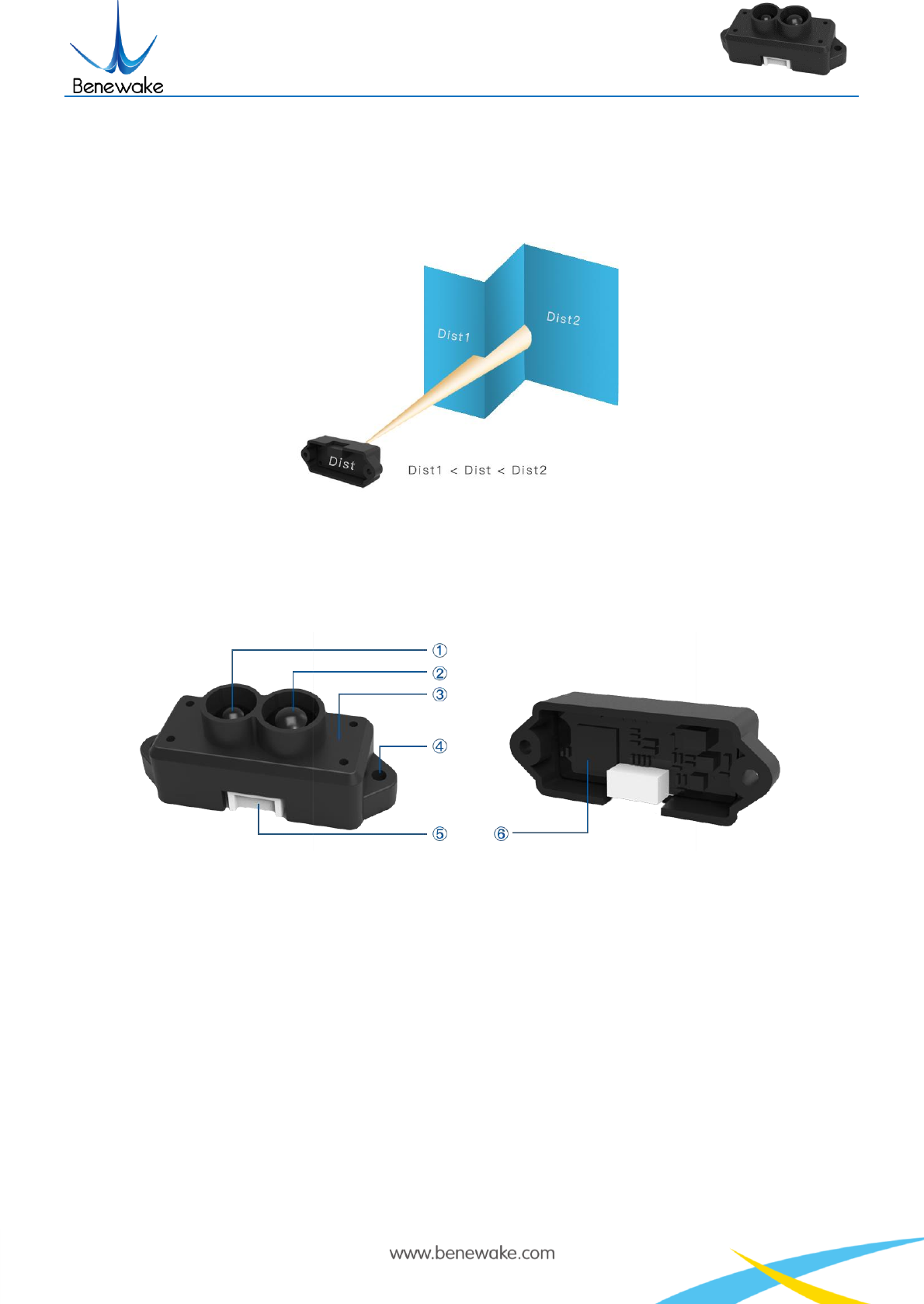

Figure 3 Distance Measurement in the case of Two Objects in Different Distances
3 Appearance and Structure
3.1 Product Appearance
Figure 4: TFmini Product Appearance
① Transmitting lens
② Receiving lens
③ Enclosure, made of ABS+PC
④ Mounting hole is 2.35mm through hole. ST2.9 self-tapping screw is recommended for mounting
and fixing.
⑤ Connecting terminal, GH1.25-4p SMT type; And along with the product there is a10cm long
connecting wire.
⑥ Circuit board, without covering enclosure at the rear of product.
