User Manual

SJ-PM-TFmini-T-01 A03

Benewake (Beijing) Co. Ltd.

Page13

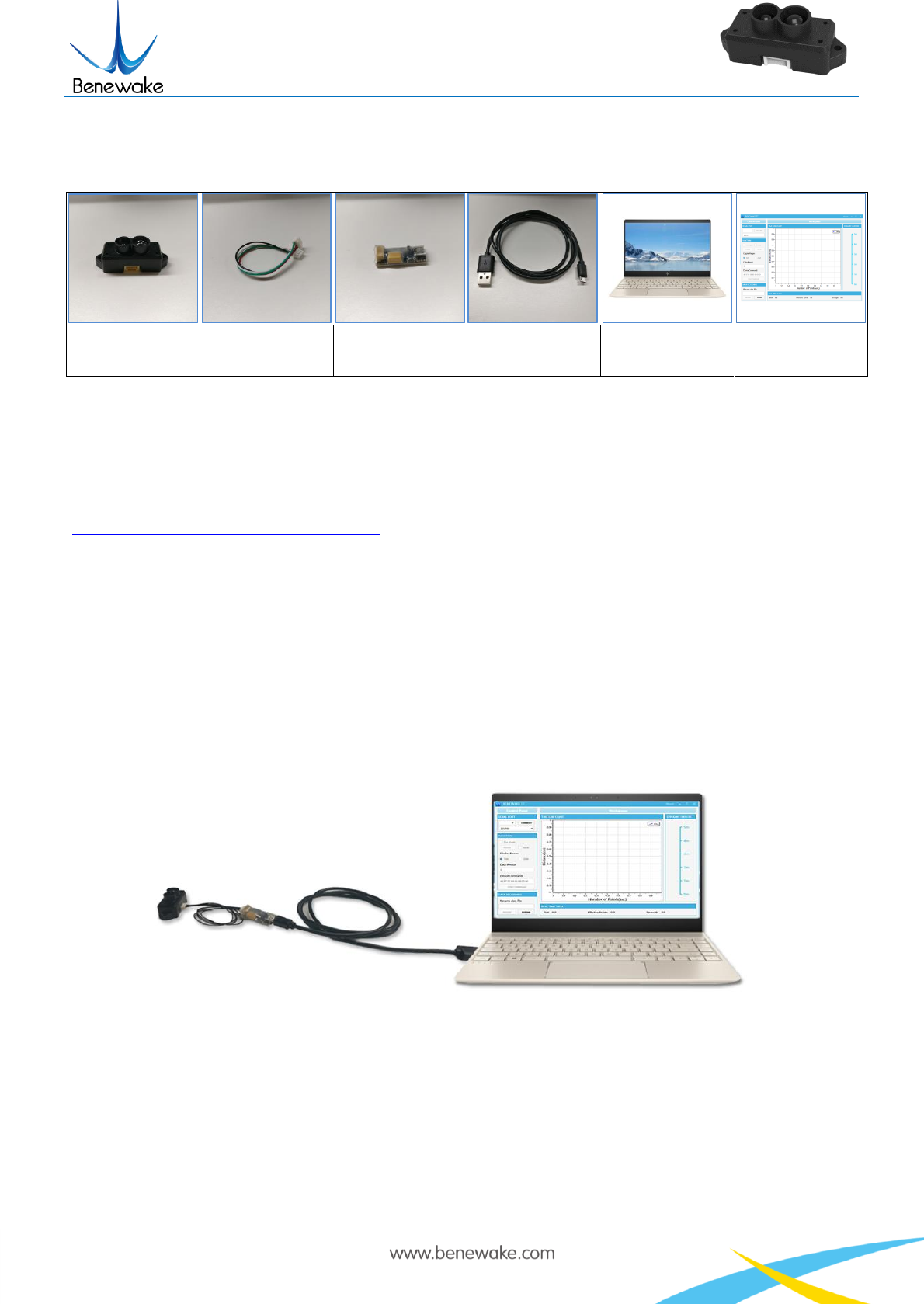

6 Quick Test Procedures

6.1 Required Tools of Product Test

TFmini

Data wire

TTL - USB

converter

USB cable

PC software

6.2 Test Procedures

① Download the PC software

Please download the PC software of TFmini at our official website

(http://www.benewake.com/en/down.html).

Caution: please shut down any anti-virus software before uncompressing the PC software. Otherwise,

maybe the software is deleted as virus. The software is only runnable under Windows environment for the

time being. Please refer to Attachment 1 - Product manual of TF PC software.

② Connection of the hardware

Connect “TFmini”, "data wire”, “TTL - USB board” and “USB cable” as shown in Figure 6. Make sure

there is no loose connection. Then connect “USB cable” with “PC”.

Figure 6 Schematic Diagram of Correct Connection

③ Connection to the PC software and data output

Open the PC software and select “①Benewake TFmini” and select automatically recognized occupied

serial port (here it is “②COM9”), as shown in Figure 7

Then click “CONNECT”. Upon successful connection, The continuous images of the output data will be
